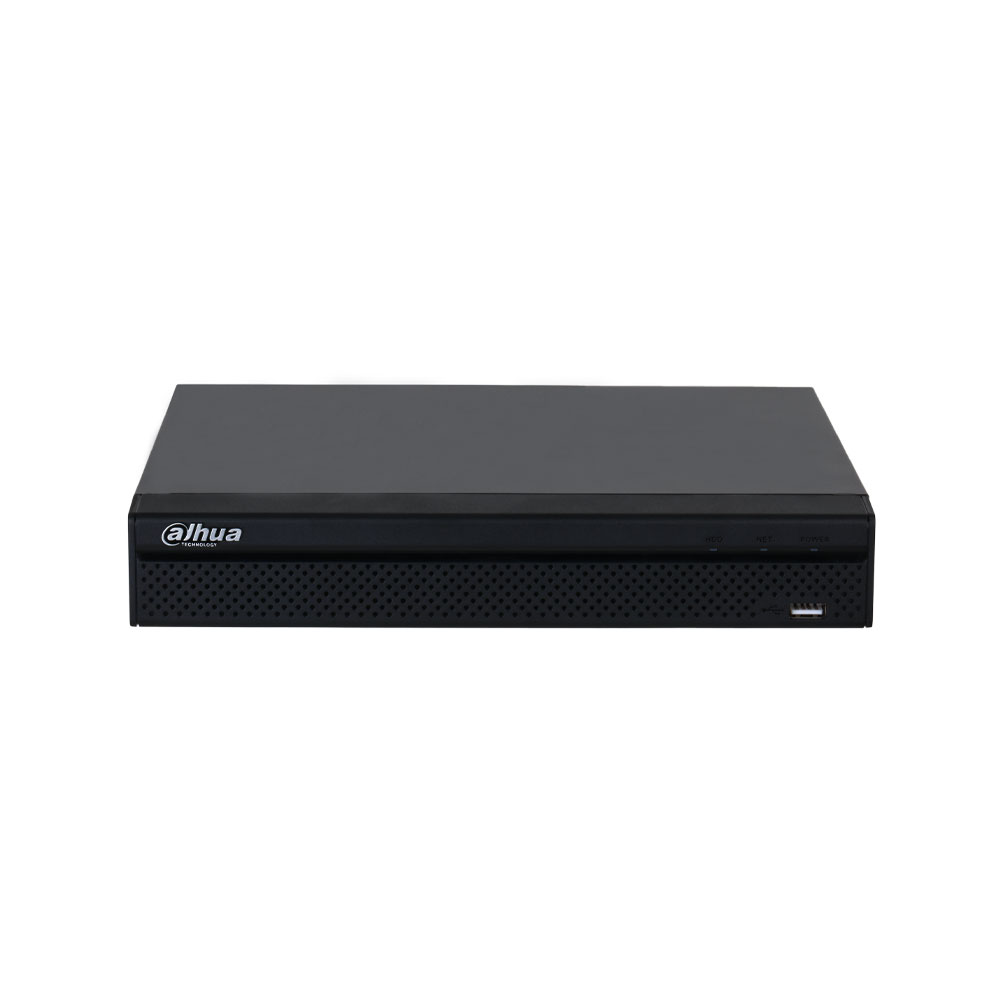

16 Channel 12MP IP NVR



View newer model
NVR IP Dahua de 16 canales DAHUA-4201-FO

  • 16 Channel 12MP Dahua IP NVR
  • Smart H.265+/Smart H.264+ format
  • 80/60Mbps input/output
  • Simultaneous HDMI and VGA outputs
  • Compatible with cameras with SMD Plus perimeter protection
  • 1 SATA HDD capacity
  • 1 RJ45 Fast Ethernet
  • 2 USB 2.0
  • 12V DC

  • 16 IP channels up to 12MP
  • Video compression: Smart H.265+, H.265, Smart H.264+, H.264
  • Simultaneous HDMI and VGA video outputs
  • Output division: 1, 4, 8, 8, 9, 16
  • 1 audio input / 1 audio output
  • Audio compression: PCM, G.711a, G.711u, G726
  • Recording Resolution: 12MP, 4K/8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
  • Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
  • Decoding capacity: 6 channels at 1080P (30 fps), 3 channels 4MP (30 fps), 2 channels 5MP (30 fps), 1 channel 8MP (30 fps), 1 channel 12MP (30 fps)
  • Manual recording, alarm recording, motion detection recording and timer recording modes
  • Video sensor alarm, privacy mask alarm, video loss alarm, PIR alarm
  • Playback up to 16 channels
  • Internal capacity for 1 SATA HDD up to 16TB (sold separately)
  • New user interface with a simpler user experience
  • Supports perimeter protection and SMD Plus compliant IP cameras (up to 4 channels) RJ45 Fast Ethernet network port (10/100Mbps)
  • Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS,
  • SMTP, UPnP, IP Filtering, DDNS, Alarm Server, IP Search, P2P ONVIF (Profile T/S/G), CGI and SDK support
  • Compatible with Chrome, IE9+, Firefox browsers
  • Compatible with Android and iOS devices
  • Server Access local network and Internet
  • Ability to limit user access to cameras in local and/or remote mode
  • Can be controlled remotely via Joystick keyboard connected via TCP/IP
  • Sending of eMails with photo attached in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm, and be connected to video surveillance receiver software
  • Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.
  • Communication ports: 2 USB 2.0 ports
  • Power supply: 12V DC, 1.5A
  • Power consumption: ≤10W (excluding disks)
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 10%~93%.
  • Dimensions: 260 (W) x 50,3 (H) x 225 mm
  • Weight: 810 g
  • Rack or desktop installation
Resolution 12MP
Audio 1 input / 1 output
Codec H.264 || H.265 || H.265+
Smart Search No
Size Mini 1U
PoE No
IP Channels 16ch
Recording Capacity 80-100 Mbps
Capacity 1 HDD
Monitor Output HDMI + VGA
Alarm channels No
Intelligent functions Perimeter protection
