SAM-4969 | 16 channel, 16 PoE IP NVRs
SAM-4969SAM-496916 channel, 16 PoE IP NVRs
Volver a Network Recorders
Products
CCTV
Network Recorders
Network Recorders
SAM-4969
SAM-4969
SAM-4969_B
SAM-4969_C

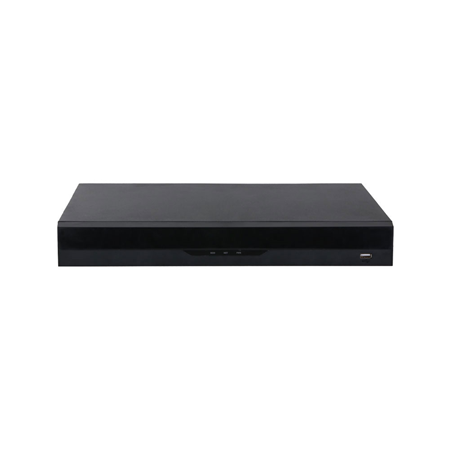

16 channel, 16 PoE IP NVRs

SAM-4969

SAM-4969

Main features

  • 16-channel IP NVR
  • Smart H.265+/Smart H.264+
  • Up to 384/384Mbps input/output
  • Simultaneous HDMI (4K) and VGA outputs
  • Facial Detection/Recognition
  • Perimeter Protection
  • SMD Plus
  • 1 audio input / 1 audio output
  • 4 inputs / 2 alarm outputs
  • Capacity of 2 SATA HDD
  • 1 RJ45 Gigabit
  • 2 USB 2.0., 1 RS485, 220V AC
  • 16 PoE

Specifications

  • 16 IP channels
  • Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • HDMI (4K) and VGA (1080P) simultaneous video outputs
  • Main display output division: 1, 4, 8, 9, 9, 16
  • Secondary display output division: 1, 4, 8, 8, 9, 16
  • 1 RCA audio input / 1 output
  • Audio compression: PCM, G.711a, G.711u, G726
  • Recording resolution: 32MP, 24MP, 16MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1, CIF, QCIF
  • Bandwidth with AI off: 384 Mbps input, 384 Mbps for storage and 384 Mbps for output
  • AI bandwidth on: 200 Mbps input, 200 Mbps storage, 200 Mbps output
  • Decoding capacity with AI off: 16 channels 4MP (30 ips), 12 channels 5MP (30 ips), 8 channels 8MP (30 ips), 5 channels 12MP (30 ips), 4 channels 16MP (30 ips), 2 channels 24MP (20 ips), 2 channels 32MP (20 ips)
  • Decoding capacity with AI enabled: 12 channels 4MP (30 fps), 8 channels 5MP (30 fps), 4 channels 8MP (30 fps), 4 channels 12MP (30 fps), 2 channels 16MP (30 fps), 1 channel 24MP (20 fps), 1 channel 32MP (20 fps)
  • General, motion detection, intelligence, alarm and POS (POS) recording modes
  • Alarm by video sensor, privacy mask, local alarm
  • Artificial Intelligence from NVR:
    • Face detection: 2 channels, 12 face images for each channel
    • Facial recognition: 16 channels
    • Perimeter protection: 4 channels, 10 IVS rules for each channel
    • SMD Plus: 8 channels
  • Artificial Intelligence from camera:
    • Face detection: 16 channels
    • Face recognition: 16 channels
    • Video metadata: 8 channels, classification of people, motorized vehicles and non-motorized vehicles
    • Perimeter protection: 16 channels
    • SMD Plus: 16 channels
    • Stereo analysis
    • Crowd distribution
    • People counting
    • ANPR: 8 channels, database of 20,000 license plates
    • Vehicle density
    • Heat map
  • Playback of up to 16 channels
  • 4 alarm inputs / 2 alarm outputs
  • Internal capacity for 2 SATA HDD up to 16TB (sold separately)
  • New user interface with easier user experience
  • Supports perimeter protection and SMD Plus compliant IP cameras
  • RJ45 Fast Ethernet network port (10/100/1000Mbps)
  • Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, PPPoE, FTP, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), Multicast, P2P, Auto Logging
  • ONVIF 21.12 (Profile T/S/G), CGI and SDK support
  • Compatible with Chrome, IE9+, Firefox browsers
  • Compatible with Android and iOS devices
  • Server Access local network and Internet
  • Ability to limit user access to cameras in local and/or remote mode
  • Can be controlled remotely via Joystick keyboard connected by TCP/IP
  • Sending of eMails with photo attached in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm, and to be connected to video surveillance receiver software
  • Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.
  • Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS232 port, 1 RS485 port
  • 16 PoE ports (10/100Mbps, ports 1 to 8 support ePoE)
  • 130W PoE delivery
  • Power supply: 100V ~ 240V AC, 47/63Hz
  • Consumption: ≤10W (excluding disks)
  • Storage temperature from -20°C ~ +60°C
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 10%~93%.
  • Dimensions: 375 (W) x 53 (H) x 329 mm
  • Weight: 2.66 kg
  • Size 1U, desktop
REFERENCE / MODEL SAM-4969 / SAM-4969
Resolution >12MP
Audio 1 input / 1 output
Codec H.264 || H.264+ || H.265 || H.265+
Smart Search Yes
Size Rack 1U
PoE 16 PoE || 16 PoE+
IP Channels 16ch
Recording Capacity >320 Mbps
Capacity 2 HDD
Monitor Output HDMI + VGA
Alarm channels 4 inputs / 2 outputs
Connectivity RS232 || RS-485
AI Series WizSense
Intelligent functions AcuPick || Face detection || Face recognition || Heat map || LPR || People counting || Perimeter protection || SMD Plus
