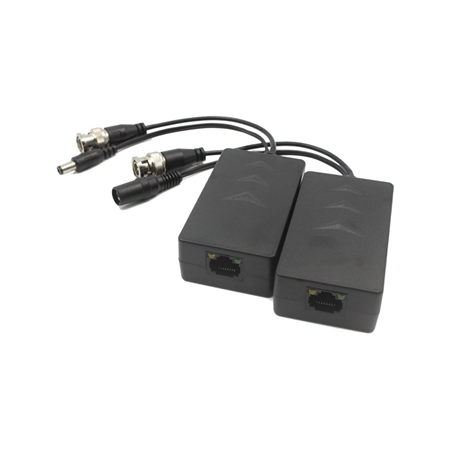

Dahua HDCVI passive balun with power supply

Technical features

• Dahua HDCVI passive balun
• 1 channel video over CAT 5E/6 UTP
• Supported formats: HDCVI, AHD, TVI, CVBS
• Supported resolutions: 720p, 1080p and 4MP
• Transmission distance: up to 400m
• Coaxial video connector: BNC-M
• UTP connector: RJ45
• Anti-interference: > 60 dB
• BNC impedance: 75 Ω
• UTP impedance: 100 Ω

Power supply

• Input 24 VDC to 36 VDC
• Output 12 VDC
• Output power: 8 W (24 VDC), 6 W (36 VDC)
• Distances according to voltage: 0-100 m / 100-200 m / 0-300 m

Environmental

• Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
• Storage temperature -20 °C to +70 °C (-4 °F to 158 °F)
• Humidity 0 to 95% non-condensing
• MTBF > 10000 h

Physical characteristics

• Housing material: ABS
• Color: black
• Dimensions: 72.6 mm × 42.5 mm × 24.5 mm
• Net weight: 0.066 kg

Contents

• Pair of passive HDCVI baluns with DAHUA-5016 power supply (PFM801-4MP-B10)

Certifications

• ESD according to IEC61000-4-2
• Coaxial and UTP protection according to IEC61000-4-5
