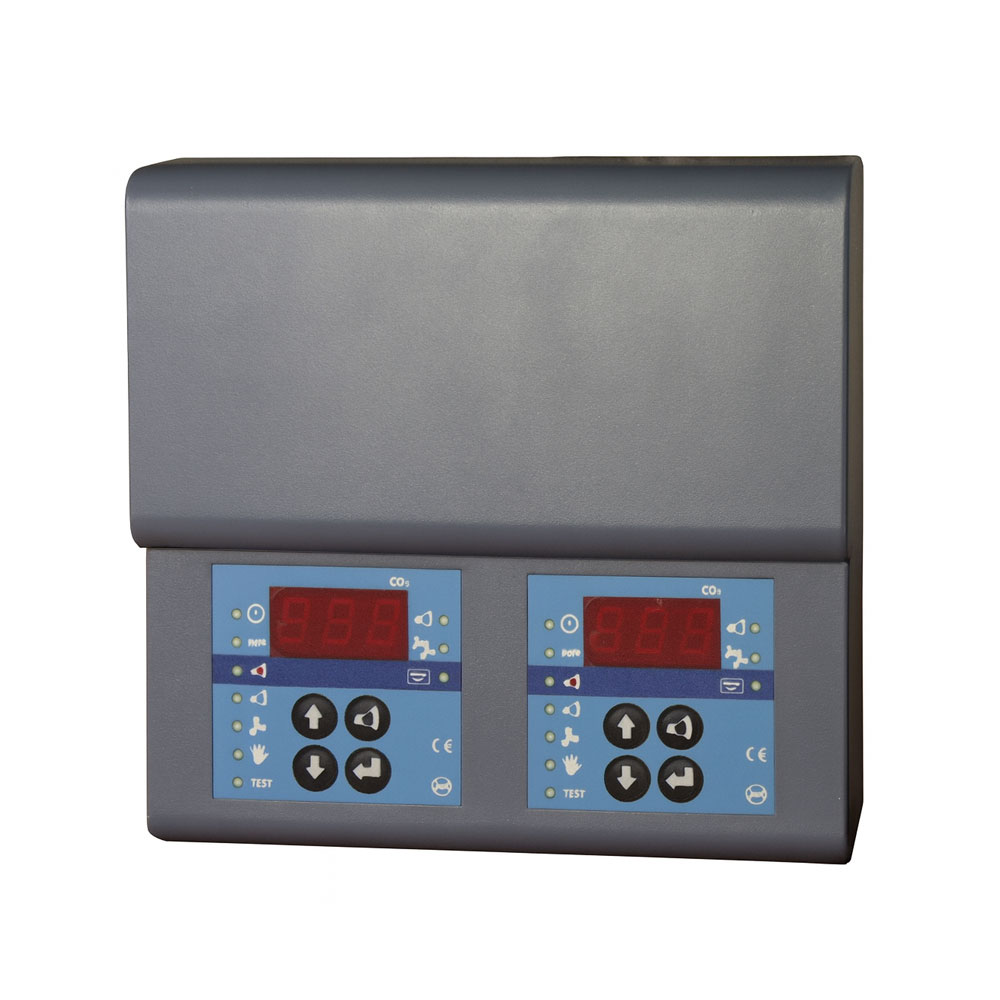

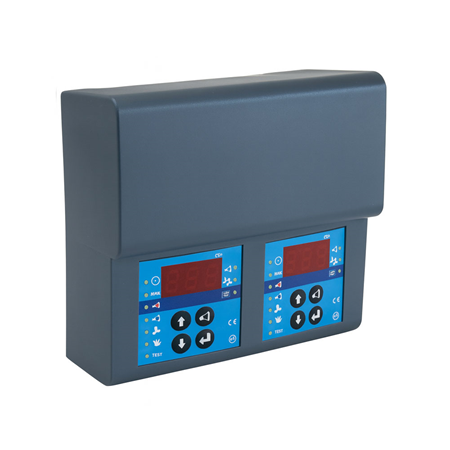

Centrale de détection de monoxyde de carbone à 2 zones

- Central station of carbon monoxide detection of 2 zones
- Two available systems, detection by semiconductor or electrochemical probe
- Up to 16 addressable and identifiable detectors per zone, individually during alarm or failure
- 3 levels of programmable alarm
- 3 independent relay outputs
- Installation by 2 conductor wires on free architecture and without polarity
- Time of programmable ventilation start delay
- Time between detector readings 25 seconds
- Alarm indication on detector with red LED continuous illumination
- Normal operation indication of detectors by blinking every 25sec
- Box of phosphated and painted steel plate
- Dimensions: 195 x 195 x 80 mm
- Certified system pursuant to UNE 23300-1984 standard by LOM
