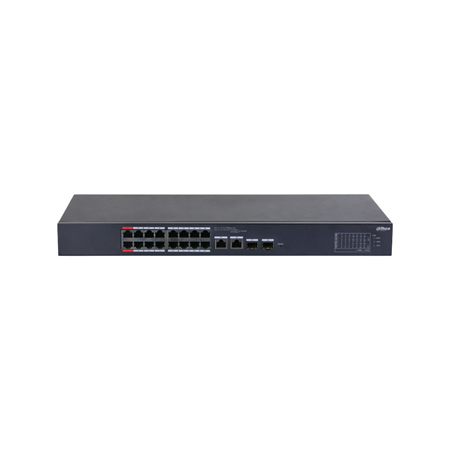

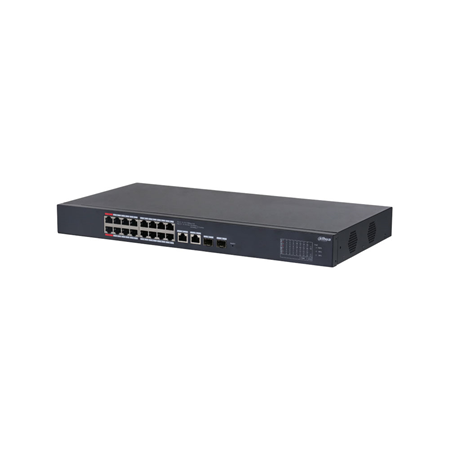

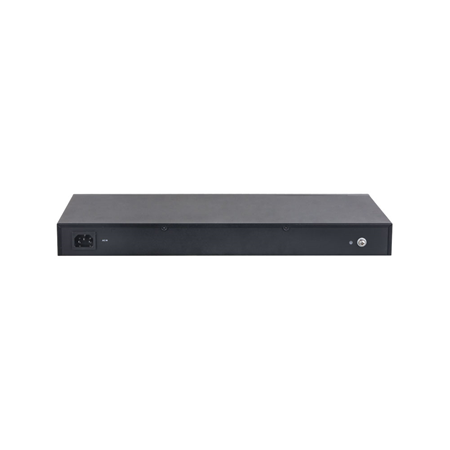

DAHUA-4973DH-CS4218-16ET-240-V2Commutateur PoE administrable 18 ports Dahua PoE
DAHUA-4973

Commutateur PoE administrable 18 ports Dahua PoE
DAHUA-4973
DH-CS4218-16ET-240-V2






Caractéristiques
Spécifications
Caractéristiques techniques
- Commutateur géré intelligent de Dahua
- 18 ports au total
- Ports 1-16 : 16 × RJ-45 10/100 Mbps (PoE)
- Ports 17-18 : 2 × RJ-45 10/100/1000 Mbps (combo)
- Ports 17-18 : 2 × SFP 1000 Mbps (combo)
- Couche L2, capacité de commutation de 7,2 Gbps
- Taux de transfert de paquets de 5,36 Mpps
- Taille de la mémoire tampon de 4 Mbit et table MAC de 8K
- VLAN basés sur le port (jusqu'à 32 VLAN)
- Trame jumbo de 15K octets
Fonctionnalités
- Gestion dans le nuage avec DoLynk Care (App) et gestion web
- Topologie du réseau via LLDP
- PoE intelligent avec surveillance de l'alimentation
- PoE Watchdog avec redémarrage automatique des ports
- Protection contre les boucles
- PoE longue distance jusqu'à 250 m (à 10 Mbps)
- Ports rouges BT 90 W pour les appareils à forte puissance
Réseau
- Normes IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
- Client DHCP et contrôle de flux IEEE 802.3x
Alimentation électrique
- Alimentation interne 100~240 VAC, 47~63 Hz
- Budget PoE total ≤ 240 W
- PoE par port : 1-2 ≤ 90 W (IEEE802.3bt/Hi-PoE), 3-16 ≤ 30 W (IEEE802.3at)
- Consommation en veille ≤ 6 W ; à pleine charge 265 W
- Attribution PoE : 1,2,4,5 (V+), 3,6,7,8 (V-)
Environnement
- Température de fonctionnement : -10 °C ~ +55 °C
- Humidité de fonctionnement : 5%~95% (sans condensation)
- ESD : 8 kV (air), 6 kV (contact)
- Protection contre la foudre : mode commun 4 kV, mode différentiel 2 kV
Caractéristiques physiques
- Matériau : tôle
- Installation : sur table ou en rack
- Dimensions : 440 × 220 × 44 mm
- Poids net : 2,35 kg
- Poids brut : 3,0 kg
Contenu
- DAHUA-4973 Commutateur géré intelligent à 18 ports avec 16 PoE (DH-CS4218-16ET-240-V2)
| RÉFÉRENCE / MODÈLE | DAHUA-4973 / DH-CS4218-16ET-240-V2 |
|---|---|
| Distance | 100m || 250m |
| Protection Spéciale | No |
| Technologie | Cloud || FIBER || IP || POE || Watchdog |
| PoE | 16 PoE || 90W PoE || Hi-PoE || PoE+ || PoE++ |
| Mode CCTV | No |
| Type de fibre | Port SFP |
| Ports Fibre | 2 (Gigabit) |
| Ports RJ45 | 16 (Fast Ethernet) || 2 (Gigabit) |
| Environnement d'installation | Intérieur |
| Matériel | Métal |
| Gérable | Cloud || DOLINK Cloud || L2 || Navigateur |
| Anneau | Non |
| Livraison de poe | 201-250W |
| Ports combo | 2 |
| Installation | Bureau || Rackable |
| Ventilateur | Non |
| Uplink Ports | 2 RJ45 Gb + 2 SFP Gb (Combo) |
| Switch Type | Access |
| Power Input | Power Supply Included |
