HONEYWELL-397

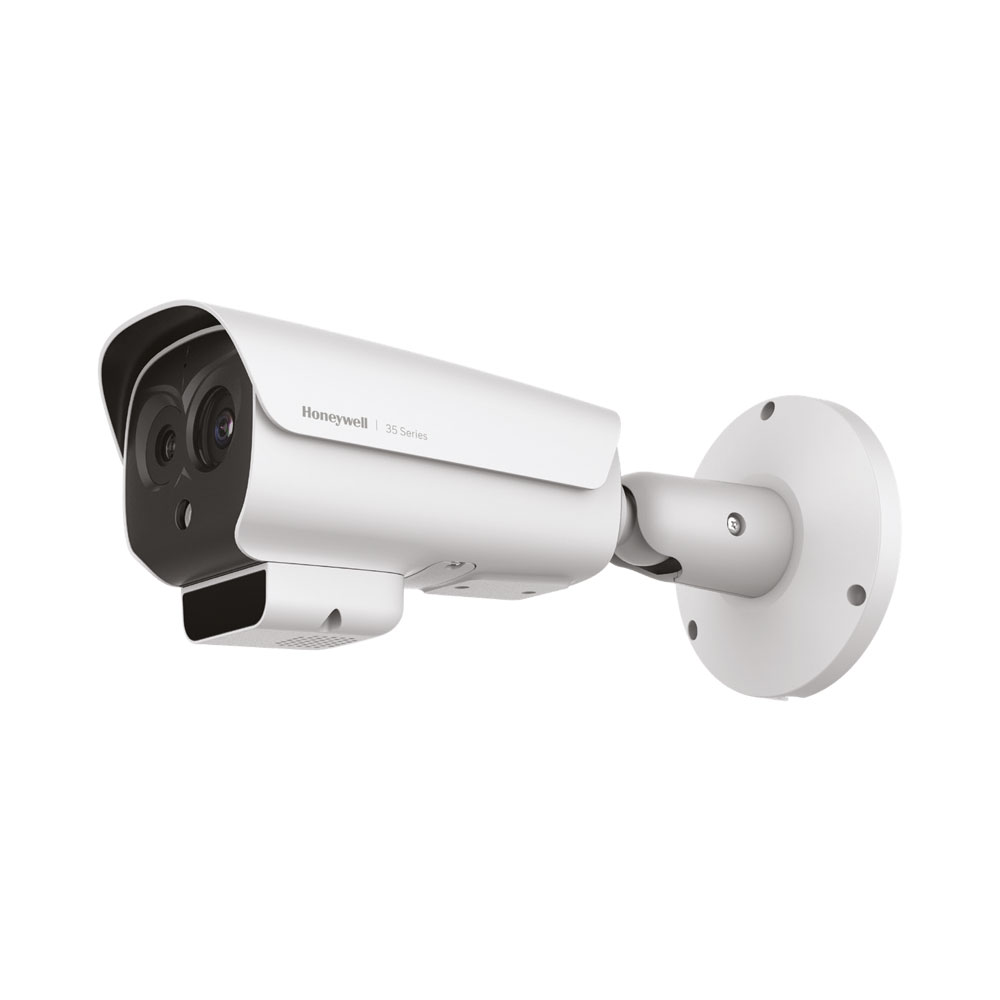

Honeywell 35 Series Dual Thermal Camera
HONEYWELL-397
HC35TB5R4JT10









Main features
Specifications
Technical Features
- Honeywell 35 Series Dual Thermal Camera
- Visible sensor: 1/2.7" CMOS, 5MP (2880×1620)
- Thermal sensor: 256×192, uncooled vanadium oxide focal plane
- Minimum illumination: color 0.03 lux, B/W 0.003 lux, 0 lux with IR
- IR distance: up to 55 m
- Lens 8 mm fixed visible (F2.0)
- Lens 10 mm fixed thermal (F1.0)
- Viewing angle visible: 41.6° (H) × 22.7° (V)
- Thermal angle of view: 17° (H) × 13° (V)
- Removable ICR filter
Video
- Stream 1 visible: up to 2880×1620@25/30ips
- Stream 2 visible: up to 1920×1080@25/30ips
- Thermal Stream 1: up to 704×576@25/30ips
- Thermal Stream 2: up to 256×192@25/30ips
- Codecs: H.265, H.264, MJPEG, Smart Codec
- Image fusion supported
Features
- WDR 120dB, BLC, HLC
- 2D/3D DNR noise reduction
- Defog, gain and white balance control
- Auto day/night mode
- White strobe-type illumination
- Pseudo-colors: White Hot, Black Hot, Rainbow, Ironbow, and others
Intelligent functions
- Visible analytics:
- Motion detection
- Smart Motion
- Scene change
- Intrusion
- Loitering
- Line crossing and double line
- Prohibited direction
- Abandoned object and lost object
- Face detection
- People counting
- Smoke and flame detection
- Thermal analysis
- Motion detection
- Smart Motion
- Intrusion
- Loitering
- Line crossing and double line
- Prohibited direction
- Smoking detection
- Hot spot and fire detection
- Temperature measurement:
- Range: -20 °C ~ 150 °C
- Modes: spot, line and area
- Up to 20 configurable rules
- Threshold, difference, section and temperature rise alarms
Audio
- Audio input/output
- Built-in microphone
- Full-duplex two-way audio
- G.711 a/u compression
Storage
- MicroSD slot up to 1TB (card not included)
Alarms
- 2 alarm inputs / 2 alarm outputs
- Alarm events: analytics alarm, security alarm, disk alarm, recording alarm
- Event linking: mail notification, push notifications, SD card recording, digital output
Communication interface
- RS485
- Analog video output
- Reset button
Network
- Ethernet RJ45 10/100 Mbps
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, Bonjour
- ONVIF Profile G/S/T/M
- Supported software: MAXPRO NVR (XE, SE, PE, HE), MAXPRO NVR Software, ADPRO NVR (iFT, iFT-E, eFT-S), ADPRO iFT Gateway, Honeywell DVM, 35 Series NVRs
- Up to 10 simultaneous users
Power supply
- 12V DC, 24V DC or PoE (IEEE 802.3af)
- Maximum power consumption: 11 W
Environmental
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- Relative humidity: < 90% (non-condensing)
- IP67 protection
- Impact resistance IK10
Physical characteristics
- Material: metal and plastic
- Color: white (RAL 9003)
- Dimensions: 275.4 ~ 305.4 × 120.5 × 122.7 mm
- Net weight: 1.44 kg
- Gross weight: 1.82 kg
Contents
- HONEYWELL-397 Dual Bullet Thermal Camera (HC35TB5R4JT10)
Compatible accessories not included
- IP66 bullet junction box: HONEYWELL-360 (HA35JCBHA1)
Certifications
- NDAA
- IEC/ANSI/ISA-62443-4-1-2018
- CE, FCC, ICES-003, RCM, UKCA, RoHS
REFERENCE / MODEL | HONEYWELL-397 / HC35TB5R4JT10 |
---|---|
Resolution | 5MP |
Series | 35 Series |
Audio | 1 input / 1 output || Microphone || Two-way |
Ingress protection | IP67 |
Lens | 8 mm |
Special Protection | Vandal-proof (IK10) |
Codec | H.264 || H.265 |
PoE | PoE |
SD Slot | Yes |
Thermal sensor | mVOx 12um |
Thermal lens | 10 mm |
Thermal resolution | SCIF (256x192) |
Monitor Output | BNC (960H) |
Certificate | NDAA || PCI DSS Compliant || Secure by Default |
Installation environment | Outdoor |
Alarm channels | 2 inputs / 2 outputs |
Intelligent functions | Abandoned objects || Face detection || People counting || Perimeter protection || SMD |
