- Honeywell 60 Series dual thermal camera
- 4MP@25ips (visible) + 640×512@25ips (thermal)
- ICR, 0.05 lux, IR 80 m
- Lens 6 mm fixed visible and 15 mm fixed thermal
- WDR 120dB, 3D-NR
- Fire, smoke detection and intrusion analysis
- Two-way audio with integrated microphone and speaker
- 2 alarm inputs/outputs
- RS232, video output, reset, ONVIF, PoE
- IP67, IK10, MAXPRO, ADPRO and DVM compatible.
ALARM.COM Systems
VESTA Alarm
VESTA Medical Alarm
U-PROX Systems
Pyronix / HIKVISION systems
HONEYWELL® systems
PARADOX® systems
VISONIC® systems
DSC® systems
DIY Home system alarm GRADE 1
Alarm Transmission & Reception
Volumetric Detectors
Shock and Impact Detectors
Magnetic Contacts
Special Detectors
Perimeter Detection
Sirens
Anti-theft protection by fog
Proactive safety smoke
Cables
Accessories

HONEYWELL-399HC60TB4R4VT15Honeywell 60 Series Dual Thermal Camera
Thermal Cameras
- All categories
- Analog Cameras HD/CVBS93
- Analog Recorders HD/CVBS48
- Network Cameras390
- Thermal Cameras51
- Network Recorders148
- Control Center & Keyboards12
- Storage Systems31
- Monitors17
- Video conference1
- Smart Cities Solutions11
- Video Analysis135
- SR7 Fire Detection3
- Twisted Pair Transmission21
- Accessories490
- CCTV Kits4
HONEYWELL-399

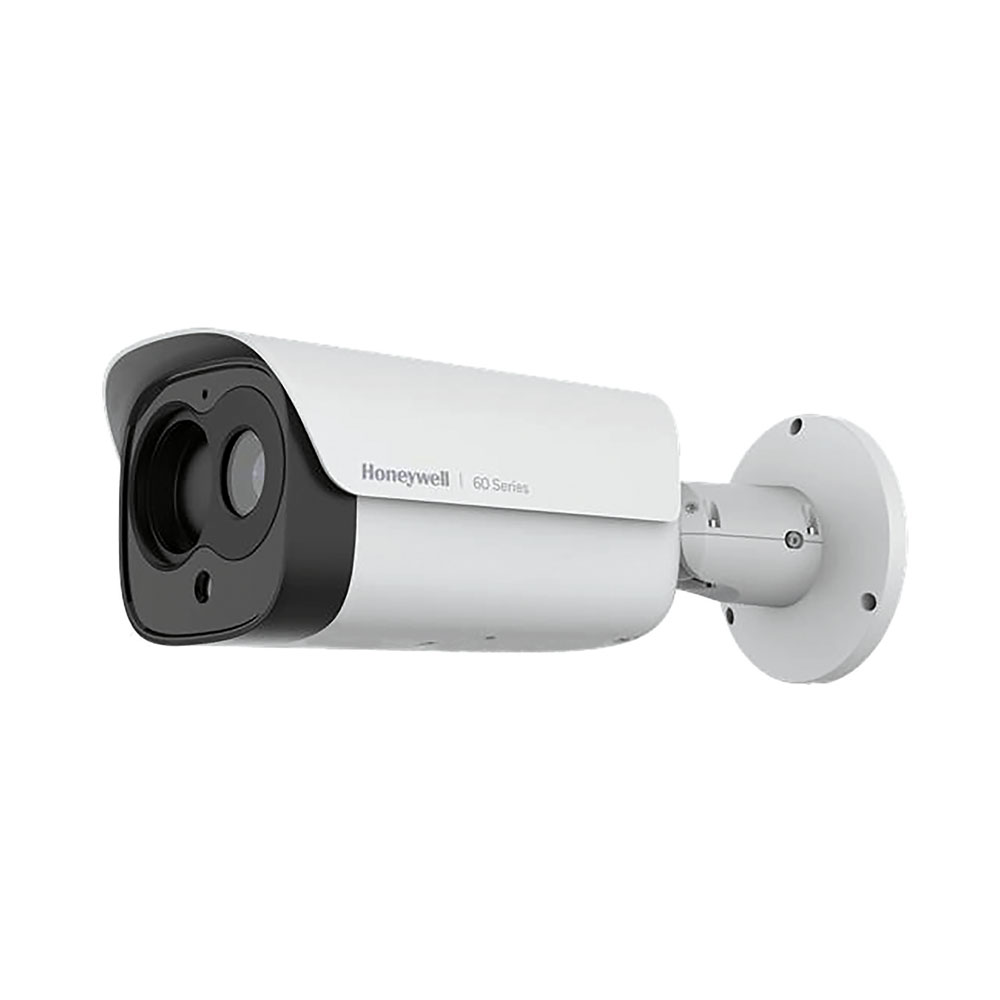

Honeywell 60 Series Dual Thermal Camera
HONEYWELL-399
HC60TB4R4VT15








Main features
Specifications
Technical Features
- Honeywell 60 Series Dual Thermal Camera
- Visible sensor: 1/1.8" CMOS, 4MP (2688×1520)
- Thermal sensor: 640×512, uncooled vanadium oxide focal plane (12 μm)
- Minimum Illumination: Color 0.05 lux, B/W 0.0001 lux, 0 lux with IR
- Mechanical ICR and Smart IR
- IR illumination up to 80 m
- Lens 6 mm fixed visible (F1.6)
- Lens 15 mm fixed thermal (F1.0)
- Visible angle of view: H: 60.88°, V: 35.44° Thermal viewing angle: H: 60.88°, V: 35.44
- Thermal angle of view: H: 32°, V: 26°, V: 26°.
Video Stream
- Compression: H.265, H.264, MJPEG, Smart Codec
- Stream 1 (viewable): 4MP@25ips, 2560×1440@25ips, 1080P@25ips
- Stream 2 (visible): 1080P, 720P, D1, VGA@25ips
- Stream 1 (thermal): 1080P, 1280×1024, 720P, 640×512@25ips
- Stream 2 (thermal): D1, VGA, 640×512, CIF@25ips
Features
- WDR 120dB, 3D-NR, BLC, HLC
- Visible and thermal image fusion
- Digital defogging, stroboscopic, privacy masks
Intelligent features
- Visible analytics:
- Motion detection
- Smart motion
- Scene change
- Intrusion
- Multiple loitering
- People counting
- Face detection
- Line crossing and double line
- Abandoned object / lost object
- Wrong direction detection
- Smoke and flame detection
- Thermal analytics:
- Motion detection
- Smart motion
- Intrusion
- Multiple loitering
- People counting
- Line crossing and double line
- Wrong direction detection
- Smoking detection
- Hot spot and fire detection
- Temperature measurement:
- Modes: point, line and area
- Up to 20 configurable rules
- Threshold, difference, range and temperature rise alarms
Audio
- G.711a/u compression
- Two-way full-duplex audio
- 1 input / 1 output, microphone and speaker integrated
Storage
- MicroSD slot up to 1TB (card not included)
Alarms
- 2 alarm inputs / 2 alarm outputs
- Event types: analytics alarm, security alarm, disk alarm, recording alarm
- Event linking: email notification, push, SD recording, digital output
Communication interface
- RS232 COMMUNICATION INTERFACE
- Analog video output
- Reset button
Network
- RJ45 10/100 Mbps interface
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, Bonjour
- Interoperability: ONVIF Profile G/S/T/T/M
- Supported software: MAXPRO, ADPRO, DVM
Power supply
- DC12V / DC24V / PoE (IEEE 802.3af)
- Maximum consumption: 25 W
Environmental
- Operating temperature: -40°C to 65°C (-40°F to 65°F)
- Relative humidity: < 90% (non-condensing)
- Protections: IP66, IP67, NEMA 4X, IK10
Physical characteristics
- Material: metal and plastic
- Color: white RAL 9003
- Wall or bracket installation (not included)
- Dimensions: 326.6 ~ 346.6 × 346.6 × 144.7 × 125.4 mm
- Net weight: 2.7 kg
- Gross weight: 3.16 kg
Contents
- HONEYWELL-399 Dual Bullet Thermal Camera (HC60TB4R4VT15)
Compatible accessories not included
- Honeywell 35 Series Junction Box: HONEYWELL-360 (HA35JCBHA1)
Certifications
- NDAA, UL, CE, FCC, RoHS, UKCA, NEMA TS2
REFERENCE / MODEL | HONEYWELL-399 / HC60TB4R4VT15 |
---|---|
Resolution | 4MP |
Series | 60 Series |
Audio | 1 input / 1 output || Microphone || Speaker || Two-way |
Ingress protection | IP67 |
Lens | 6 mm |
Special Protection | Vandal-proof (IK10) |
Codec | H.264 || H.265 |
PoE | PoE |
SD Slot | Yes |
Thermal sensor | mVOx 12um |
Thermal lens | 15 mm |
Thermal resolution | VGA (640x512) |
Monitor Output | BNC (960H) |
Certificate | NDAA || PCI DSS Compliant || Secure by Default |
Installation environment | Outdoor |
Alarm channels | 2 inputs / 2 outputs |
Intelligent functions | Abandoned objects || Body temperature || Face detection || People counting || Perimeter protection || SMD |
