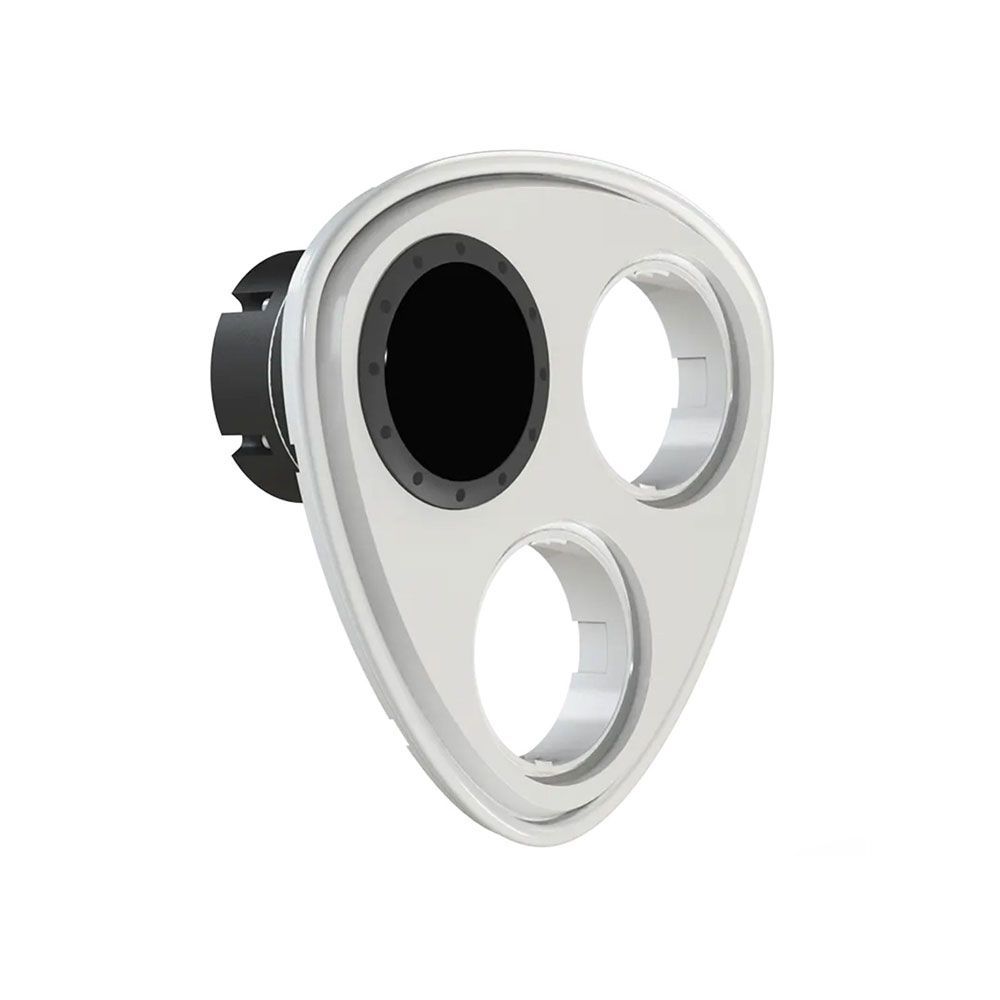

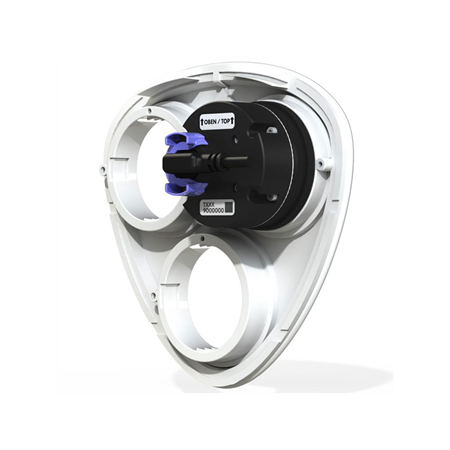

MOBOTIX M73 VGA 640x480 thermal sensor module with FoV 95°x76°.

MOBOTIX-120

Mx-O-M73TC-640R050

Main features

MOBOTIX thermal sensor module for M73 platform
VGA 640x480 resolution with uncooled microbolometer and 30 mK sensitivity
FoV 95°x76° with Lens f/1.10
Configurable temperature measurement
IP67 and IK04 protection.

Specifications

Technical specifications

Thermal sensor module for MOBOTIX M73 platform
Uncooled microbolometer sensor
VGA 640 × 480 px resolution
Typical thermal sensitivity 30 mK
IR spectral range from 7.5 to 13.5 µm
Fixed lens 95° × 76° at f/1.10 aperture
12 µm pixel pitch

Video

640 × 480 VGA base resolution
Scalable up to 4K UHD 3840 × 2160 (8MP)
Maximum frame rate 30 fps

Features

Configurable temperature measurement
High sensitivity mode: -40 to 150 °C
Low sensitivity mode: -40 to 350 °C

Power supply

Approximate power consumption of 1.5 W

Ambient

Operating temperature -40 to +65 °C
Humidity 5 % to 95 % non-condensing
Protection IP67
Protection IK04

Physical Characteristics

PBT-30GF housing
Germanium lens
MTBF 80 000 hours

Contents

VGA 95° × 76° MOBOTIX-120 thermal sensor module (Mx-O-M73TC-640R050)

Compatible software

Compatible with MxManagementCenter

REFERENCE / MODEL	MOBOTIX-120 / Mx-O-M73TC-640R050
Audio	No
Ingress protection	IP67
Special Protection	Vandal-proof (IK04)
PoE	No
SD Slot	No
Thermal sensor	FPA 12μm
Thermal lens	50 mm
Monitor Output	No
Installation environment	Outdoor
Alarm channels	No
