HONEYWELL-394 | Honeywell 35 Series Dual Thermal Dome
HONEYWELL-394HC35TE5R3JT21Honeywell 35 Series Dual Thermal Dome
Cybersecurity

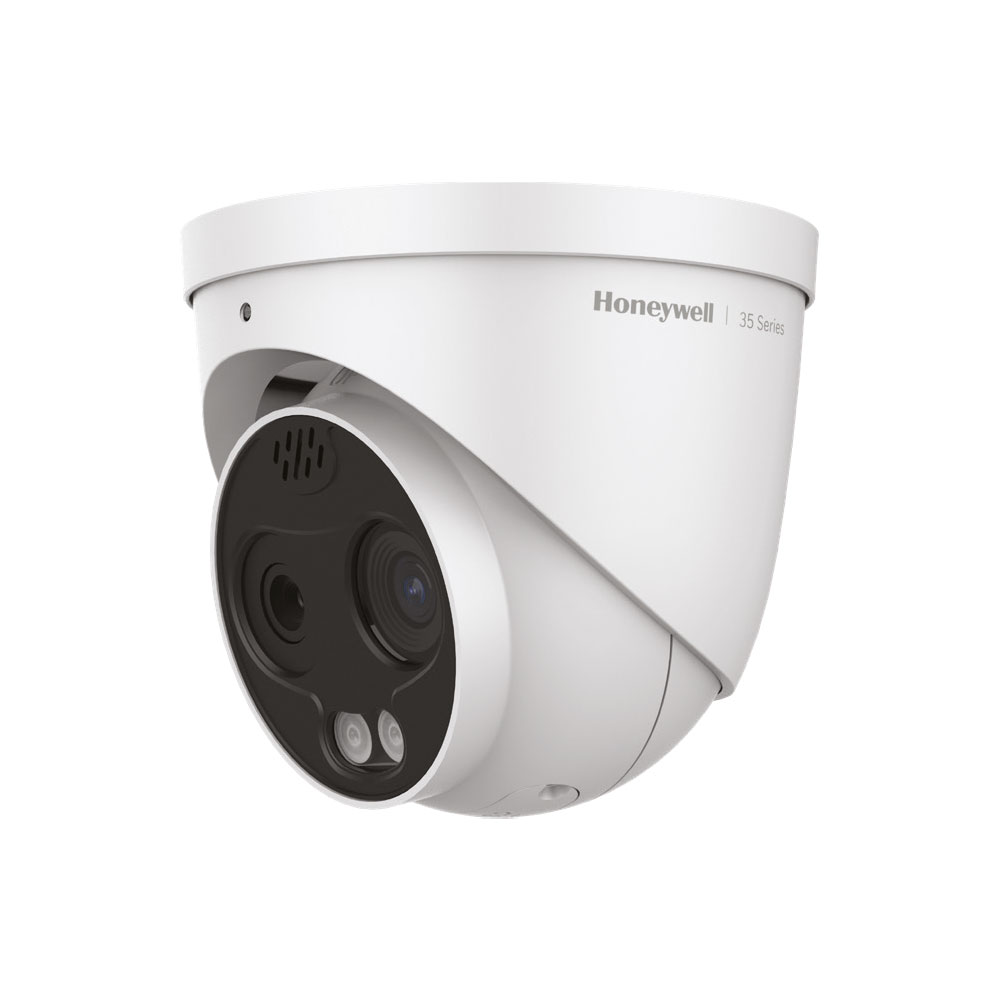

Honeywell 35 Series Dual Thermal Dome

HONEYWELL-394

HC35TE5R3JT21

Main features

  • Honeywell 35 Series dual thermal dome
  • 5MP@25ips + thermal 256×192@25ips
  • Removable ICR, 0.005 lux, IR 15 m
  • Lens visible fixed 2.2 mm, thermal 2.1 mm
  • WDR 120dB, 2D/3DNR, image fusion
  • Advanced analytics Lens and thermal
  • Two-way audio with integrated microphone and speaker
  • Alarm input/output
  • RS485, SD slot
  • IP67, IK10
  • PoE or 12VDC

Specifications

Technical features

  • Honeywell 35 Series Dual Bullet Thermal Camera
  • Visible sensor: 1/2.7" CMOS, 5MP (2880×1620)
  • Thermal sensor: 256×192, uncooled vanadium oxide focal plane
  • Minimum illumination: color 0.05 lux, B/W 0.005 lux, 0 lux with IR
  • IR distance: up to 15 m
  • Lens 2.2 mm fixed visible (F2.2)
  • Lens 2.1 mm fixed thermal (F1.0)
  • Visible angle of view: 119° (H) × 69.98° (V)
  • Thermal angle of view: 90° (H) × 64° (V)
  • Removable ICR filter

Video

  • Stream 1 visible: up to 2880×1620@25/30ips
  • Stream 2 visible: up to 1920×1080@25/30ips
  • Thermal Stream 1: up to 704×576@25/30ips
  • Thermal Stream 2: up to 256×192@25/30ips
  • Codecs: H.265, H.264, MJPEG, Smart Codec
  • Image fusion supported

Features

  • WDR 120dB, BLC, HLC
  • 2D/3D DNR noise reduction
  • Defog, gain and white balance control
  • Auto day/night mode
  • White strobe-type illumination
  • Pseudo-colors: White Hot, Black Hot, Rainbow, Ironbow, and others

Intelligent functions

  • Visible analytics:
    • Motion detection
    • Smart Motion
    • Scene change
    • Intrusion
    • Loitering
    • Line crossing and double line
    • Abandoned object and lost object
    • Face detection
    • People counting
    • Smoke and flame detection
  • Thermal analytics:
    • Motion detection
    • Smart Motion
    • Intrusion
    • Loitering
    • Line crossing and double line
    • Prohibited direction
    • Smoking detection
    • Hot spot and fire detection
  • Temperature measurement:
    • Range: -20 °C ~ 150 °C
    • Modes: spot, line and area
    • Up to 20 configurable rules
    • Threshold, difference, section and temperature rise alarms

Audio

  • Audio input/output
  • Built-in microphone and speaker
  • Full-duplex two-way audio
  • G.711 a/u compression

Storage

  • MicroSD slot up to 1TB (card not included)

Alarms

  • 1 alarm input / 1 alarm output
  • Alarm events: analytics alarm, security alarm, disk alarm, recording alarm
  • Event linking: mail notification, push notifications, SD card recording, digital output

Communication interface

  • RS485
  • Analog video output
  • Reset button

Network

  • Ethernet RJ45 10/100 Mbps
  • Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, Bonjour
  • ONVIF Profile G/S/T/M
  • Supported software: MAXPRO NVR (XE, SE, PE, HE), MAXPRO NVR Software, ADPRO NVR (iFT, iFT-E, eFT-S), ADPRO iFT Gateway, Honeywell DVM, 35 Series NVRs
  • Up to 10 simultaneous users

Power supply

  • 12V DC or PoE (IEEE 802.3af)
  • Maximum power consumption: 10 W

Environmental

  • Operating temperature: -40°C to 60°C (-40°F to 140°F)
  • Relative humidity: < 90% (non-condensing)
  • IP67 protection
  • Impact resistance IK10

Physical characteristics

  • Material: metal and plastic
  • Color: white RAL 9003
  • Dimensions: Ø126.1 × 114.1 mm
  • Net weight: 0.96 kg
  • Gross weight: 1.18 kg

Contents

  • HONEYWELL-394 (HC35TE5R3JT21) bi-spectral bullet thermal camera

Compatible accessories not included

  • MFZ camera cover with 1.5NPT male thread: HONEYWELL-358 (HA35PMC02)
  • All-in-one junction box for 35 series: HONEYWELL-360 (HA35JCBHA1)
  • Wall bracket with 1.5NPT female thread: HONEYWELL-359 (HA60WLMB1)

Certifications

  • NDAA
  • IEC/ANSI/ISA-62443-4-1-2018
  • CE, FCC, ICES-003, RCM, UKCA, RoHS
REFERENCE / MODEL HONEYWELL-394 / HC35TE5R3JT21
Resolution 5MP
Series 35 Series
Audio 1 input / 1 output || Microphone || Speaker || Two-way
Ingress protection IP67
Lens 2,2 mm
Special Protection Vandal-proof (IK10)
Codec H.264 || H.265
PoE PoE
SD Slot Yes
Thermal sensor mVOx 12um
Thermal lens 2,1 mm
Thermal resolution SCIF (256x192)
Monitor Output BNC (960H)
Certificate NDAA || PCI DSS Compliant || Secure by Default
Installation environment Outdoor
Alarm channels 1 input / 1 output
Intelligent functions Abandoned objects || Face detection || People counting || Perimeter protection || SMD
