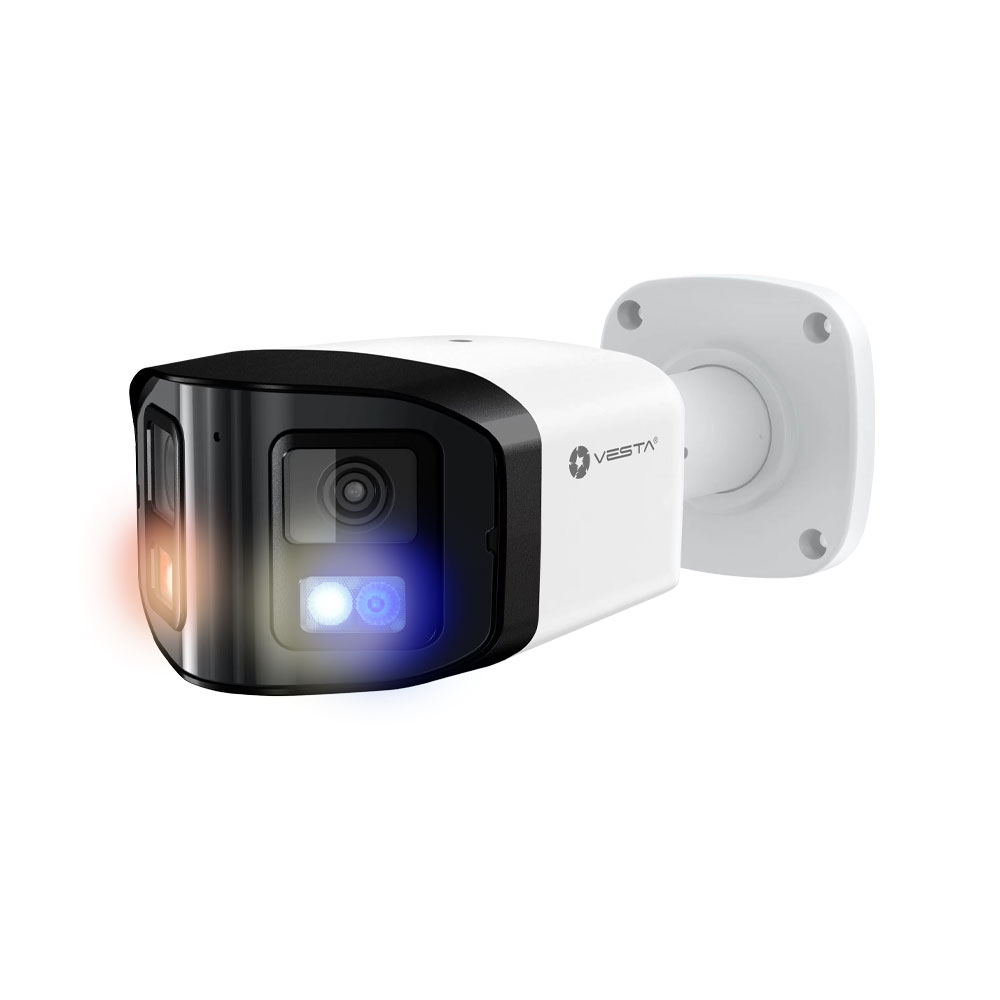

VESTA Advanced Video Magic Color Ultra AI Active Deterrence 8MP panoramic IP camera for outdoor use

Technical Specifications

• 2 1/1.8" CMOS sensors with 4MP
• Maximum resolution of 8MP (5120 × 1520)
• Minimum illumination of 0.0007 lux@F1.6 in color (30 IRE), 0.0004 lux@F1.6 in B/W (30 IRE), and 0 lux with illuminator on
• Smart Dual Light with IR range up to 40 m and warm light range up to 40 m
• 2 IR LEDs and 2 white LEDs
• Automatic or manual illuminator control
• Fixed lens 3.6 mm
• Maximum aperture F1.6
• 180° panoramic view

Video stream

• H.264H, H.264M, H.264B, and H.265 compression
• Smart compression: H.264H+, H.264M+, H.264B+, and H.265+
• 3 video streams
• Stream 1: 8MP (5120 × 1520)@1–25 fps
• Stream 2: 2048 × 576 @ 1–25 fps
• Stream 3: 2048 × 576 @ 1–25 fps
• CBR and VBR bitrate control
• H.264 bitrate up to 16384 Kbps
• H.265 bitrate up to 16,384 Kbps

Functionalities

• Magic Color technology to optimize the image in low-light conditions
• Day/night mode in color and B/W
• BLC, HLC, 120 dB WDR, and 3D-NR
• White balance
• Automatic and manual gain control
• Configurable motion detection in 4 color zones
• Mirror function

Smart features

• SMD Smart Motion Detection
• Perimeter protection with intrusion and line-crossing detection
• Loitering, crowd gathering, and parking detection
• Facial detection with tracking, capture, and capture optimization
• Abandoned Object and Missing Object Detection
• Heat Map
• AI search in conjunction with NVR

Active deterrence

• Built-in audible alarm
• Visual alarm via red and blue LEDs
• Arming and disarming the alarm

Audio

• Built-in microphone
• Built-in speaker
• 1 audio input via RCA
• 1 RCA audio output
• Audio compression: G.711a, G.711Mu, G.726, and G.726ASF

Storage

• Storage via FTP
• MicroSD card slot supporting up to 256 GB in FAT32 (card not included)

Alarms

• 1 alarm input
• 1 alarm output
• Alarm events for disconnection, IP conflict, missing SD card, capacity warning, and SD card error

Communication interface

• RS485 interface

Network

• RJ45 10/100 Base-T network interface
• Protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPnP, and SMTP
• Compatible with ONVIF, CGI, and P2P
• SDK and API
• Up to 16 users with a total bandwidth of 80 M
• Compatible with IE8 and later, Chrome, Firefox, and Edge
• VESTA Config Tool software
• VESTA Advanced mobile app
• VSS (VESTA Surveillance Station) Platform

Power

• Powered by 12 V DC (±30%) or 802.3af PoE
• Basic power consumption of 4 W
• Maximum power consumption: 14 W

Environmental

• Operating temperature: -30°C to +60°C
• Operating relative humidity less than 95%
• Storage temperature: -40°C to +60°C
• IP67 protection

Physical Characteristics

• Metal housing
• 3AXIS: Pan 0°–180°, Tilt 0°–90°, Rotation 0°–180°
• Dimensions: 237 × 110 × 74 mm
• Net weight: 950 g

Contents

• VESTA Advanced Video Magic Color Ultra AI Active Deterrence 8MP Panoramic IP Camera IPC-B38-A180-PV-V2 (IPC-B38-A180-PV-V2)
