DEM-363 | 12 V alkaline battery type A23 L1028FU in bulk format
DEM-363DEM-36312 V alkaline battery type A23 L1028FU in bulk format
Volver a Accessories
Products
Intrusion
Accessories
Batteries
DEM-363

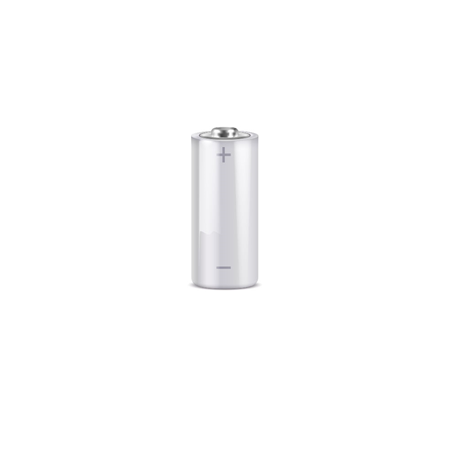

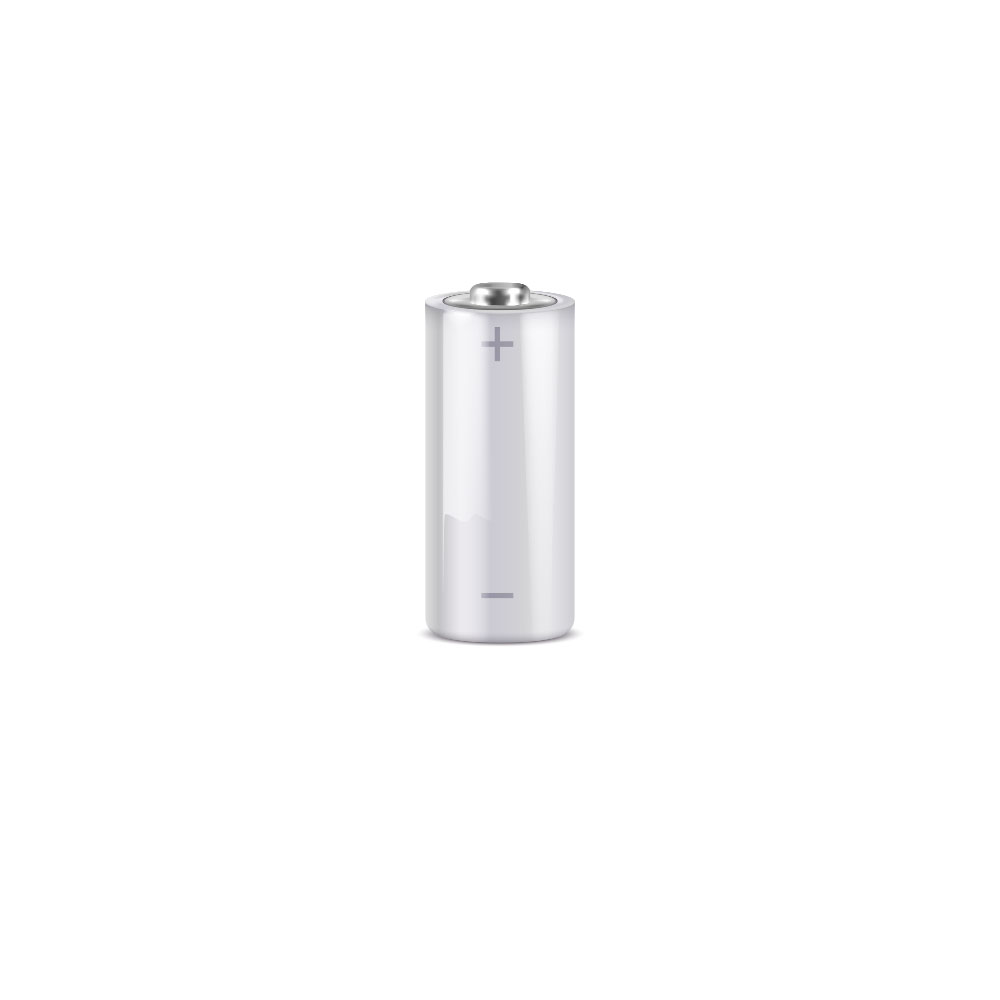

12 V alkaline battery type A23 L1028FU in bulk format

DEM-363

DEM-363

Main features

  • Professional alkaline battery L1028FU (type A23)
  • 12 V with 52 mAh capacity
  • Designed for remote control, wireless doorbells, electronic locks, etc
  • High reliability and leak resistance
  • Flat terminals
  • Presentation without blister (bulk)

Specifications

  • Alkaline-manganese battery (Zn/KOH/MnO₂)
  • Format: A23 (also known as L1028, MN21, LR23A, V23GA)
  • Nominal voltage: 12 V
  • Typical capacity: 52 mAh (at 20 kΩ, 24 h/day, E.P.V. 6 V)
  • Open-circuit voltage: 12.3 V (new), 12.1 V (after 12 months)
  • Voltage under load (1000 Ω): 11.5 V (new), 11.0 V (after 12 months).
  • Discharge performance:
    • 20 kΩ/24 h/day: 95 h (new), 85 h (after 12 months).
    • 1 kΩ/1s ON 4s OFF: up to 18,000 cycles
  • Anti-leakage design: no spillage or explosion after prolonged discharge
  • Flat terminals
  • Dimensions: 28.5 × Ø10.3 mm
  • Net weight: 7.85 g
  • Standards: IEC 60086-1, IEC 60086-2, GB/T8897.1
  • Precautions: not rechargeable, do not expose to fire, avoid short-circuit or reverse polarity.
  • Packaging: bulk format (no individual blister pack)
REFERENCE / MODEL DEM-363 / DEM-363
Battery type A23
Voltage 12 V
