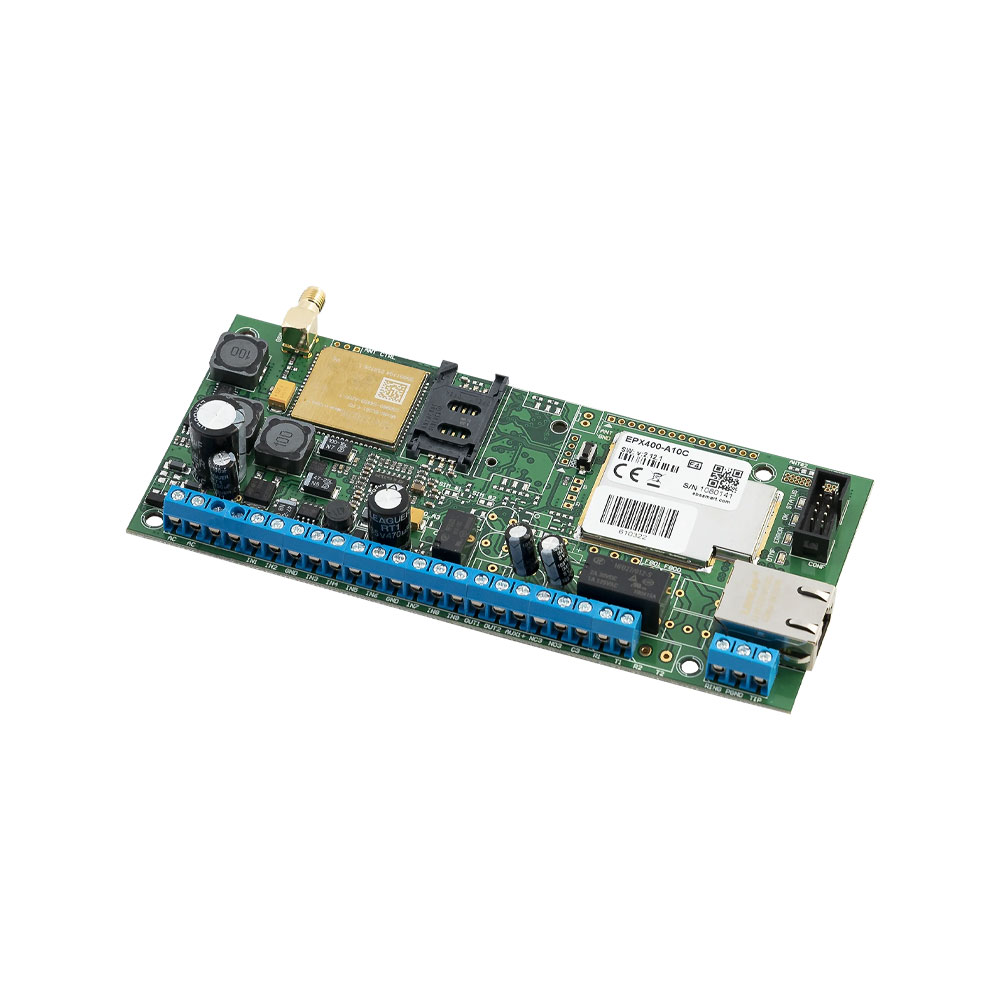

EBS-12 | 4G and Ethernet communicator for alarm transmissions
EBS-12EPX400-A30C4G and Ethernet communicator for alarm transmissions

4G and Ethernet communicator for alarm transmissions

EBS-12

EPX400-A30C

View previous model
Transmisor universal 4G EBS-6

Main features

  • EBS communicator for alarm systems
  • Via 4G/2G radio and Ethernet
  • Compatible with Contact ID and SIA
  • Up to 9 inputs and 3 outputs
  • Simulates PSTN line
  • AES security
  • SIM card support
  • Remote upgrade
  • Optional box

Specifications

  • Event transmission via 4G/2G radio or Ethernet
  • Supports Contact ID and SIA protocols
  • Telephone line simulation (PSTN)
  • Up to 9 programmable inputs (NO, NC, EOL, DEOL)
  • 2 open collector outputs (100 mA max.)
  • 1 relay output (1A/30VDC or 0.5A/125VAC)
  • RS232 serial interface (up to 115200 bps)
  • 10/100 Mbps Ethernet port with automatic cable type detection
  • Mini SIM card support
  • Transmission channels: LTE, EDGE, GPRS, SMS, Ethernet
  • LTE CAT 1bis modem with up to 10.2 Mbps downstream and 5.2 Mbps upstream
  • Supported frequencies: GSM 850/900/1800/1900 MHz, LTE bands 1, 2, 3, 4, 5, 5, 7, 8, 20, 28, 38, 40, 66
  • History of up to 5000 events
  • 4 status LEDs (signal level, device status, communication)
  • Local configuration via PC software and programmer, or remote via mobile or Ethernet network
  • Remote firmware upgrade
  • Remote access to control panel
  • Transmission security via AES encryption
  • Compatible with VRLA 12V-7Ah backup batteries (not included)
  • Charging module with reverse, short circuit, mains failure and low battery protection
  • Max. charging current: 220 mA
  • Low battery threshold: 11 VDC
  • Main power supply: 18 VAC (16-20 VAC) / Alternate: 13.8 VDC (12-14 VDC)
  • Consumption: 130-250 mA depending on source and load
  • Operating temperature: -10 °C to +55 °C (-10 °C to +55 °C)
  • Operating humidity: 5 %-93 % non-condensing
  • PCB dimensions: 163 × 73 mm
  • Weight: 120 g
  • Certifications: CE
REFERENCE / MODEL EBS-12 / EPX400-A30C
Connectivity 2G || 4G
