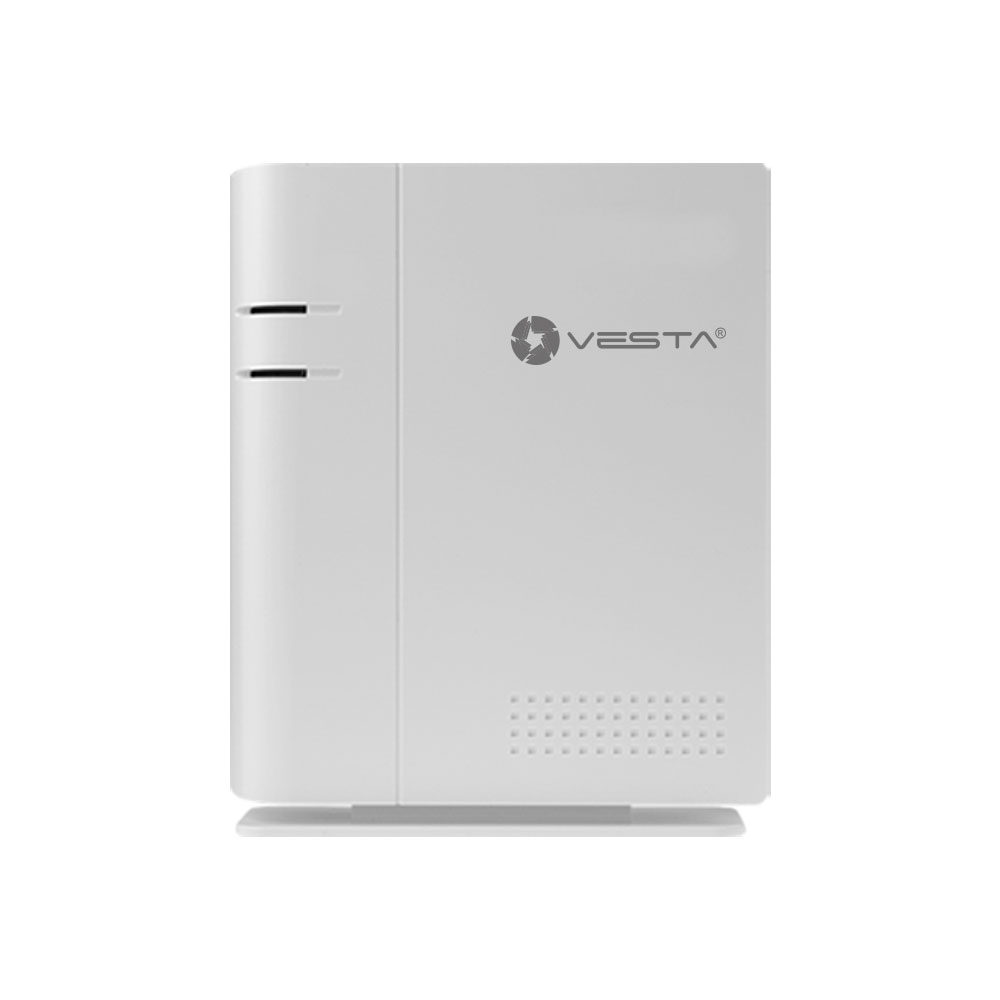

VESTA IP Gateway for Central Monitoring Stations

VESTA-449

PAARNGATEDT802

Main features

IP gateway for connecting VESTA IP/GPRS panels to alarm receiving centres
CID/SIA communication over IP or RS232
Up to 100,000 panels
Compatible with Home Portal Server
SMS messaging via mobile network
USB port
12 VDC power supply
Wall mount

Specifications

IP gateway for connecting IP/GPRS panels to alarm receiving centres
Supports up to 100,000 panels (depending on bandwidth)
Compatible with Home Portal Server for authentication and management
CID and SIA protocols over IP or RS232 serial port
SMS messaging function via local mobile network (SIM required)
Integrated USB port for firmware updates or configuration
Event memory: up to 100 records
Ethernet 10/100 Mbps network interface
Wall-mounted installation
Power supply: 12 VDC, 1 A
Maximum consumption: 2 W
Supports optional 4.8 V NiMH backup battery (not included)
Operating temperature: –10 °C to +45 °C
Operating humidity: up to 85 % (non-condensing)
Dimensions: 186.3 × 130 × 30.3 mm

Documentation

	Language	Name	Type	Action
	EN		Manual
	ES		Manual
	FR		Manual
	IT		Manual
	DE		Self-generated File
