TPLINK-223 | TP-Link Omada 24-port Gigabit + 4 SFP+ 10G L3 Managed Switch
TPLINK-223SG5428XTP-Link Omada 24-port Gigabit + 4 SFP+ 10G L3 Managed Switch
Volver a Switching
Products
Networking
Switching
Managed
TPLINK-223
TPLINK-223
TPLINK-223_B
TPLINK-223_C
TPLINK-223_D

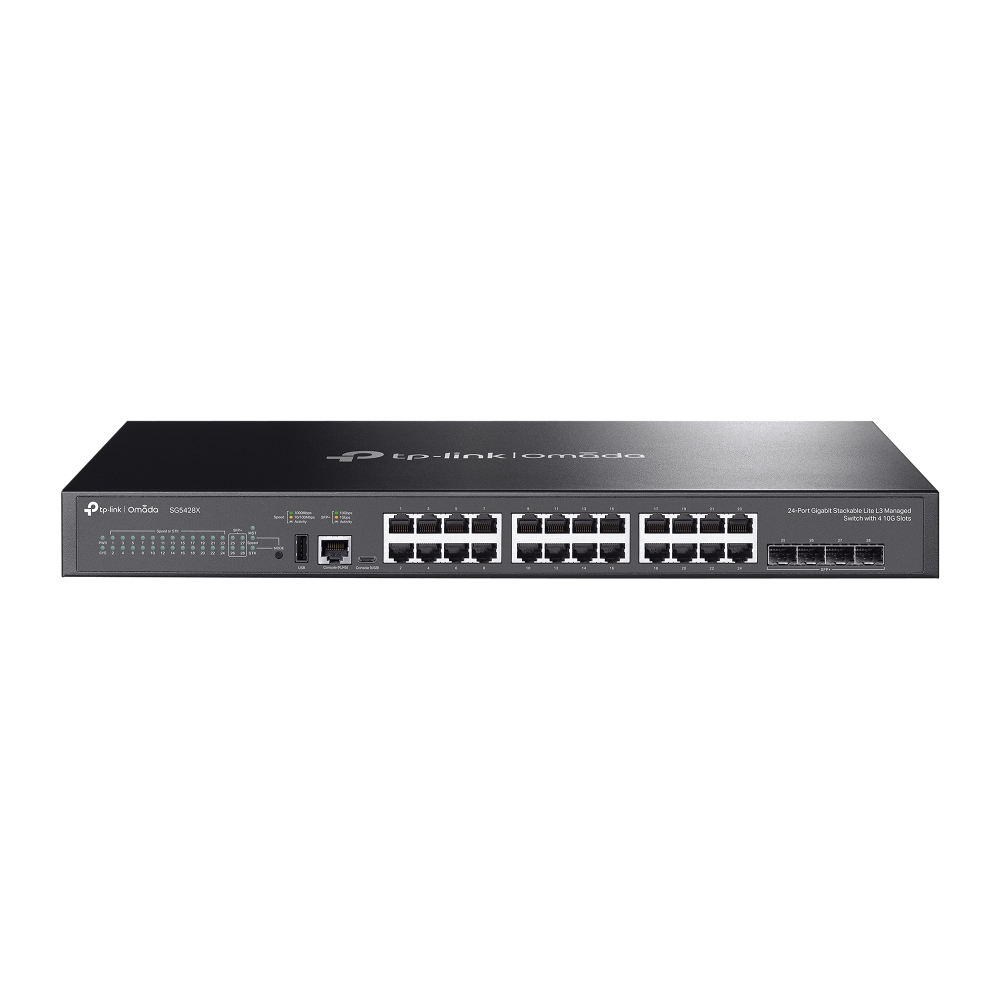

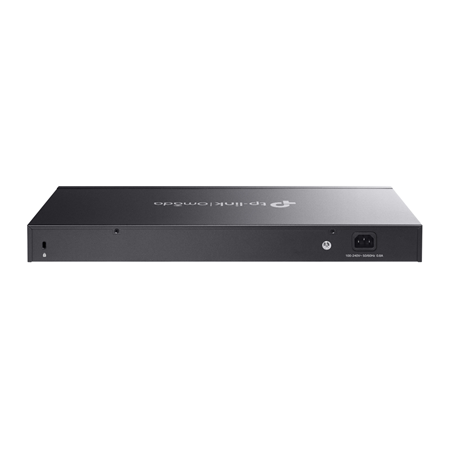

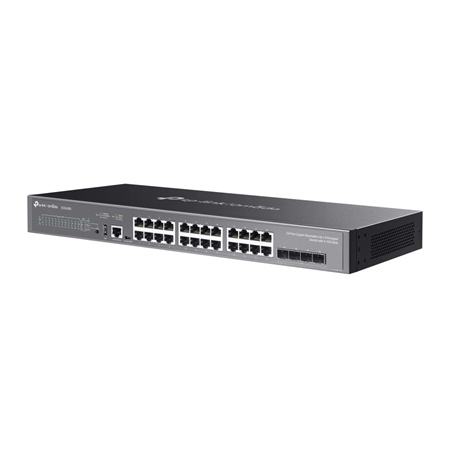

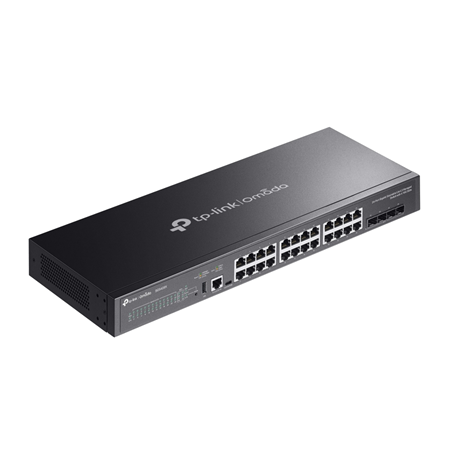

TP-Link Omada 24-port Gigabit + 4 SFP+ 10G L3 Managed Switch

TPLINK-223

SG5428X

Main features

  • TP-Link Lite L3 Manageable Switch
  • 24 Gigabit RJ45 ports and 4 SFP+ 10G slots
  • Physical stacking up to 4 units with 80 Gbps
  • Static routing, OSPF, RIP
  • VLAN, QoS, ACL, DHCP, PoE passthrough and advanced protection
  • Management by Omada SDN, CLI, web and SNMP
  • Rack-mountable

Specifications

  • 24 × 10/100/1000 Mbps RJ45 ports
  • 4 × 1/10 Gbps SFP+ slots (stackable)
  • 1 × RJ45 console port and 1 × USB Type-C console
  • 1 × USB 2.0 port
  • 1.2 GHz dual-core ARM CPU with 2 GB DDR4 and 516 MB NAND
  • Switching capacity: 128 Gbps
  • Forwarding rate: 95.23 Mpps
  • MAC table: 16K entries
  • Buffer memory: 12 Mbit
  • Physical stacking: up to 4 devices, 80 Gbps bandwidth
  • Jumbo frames: up to 9 KB
  • VLAN standards: 802.1Q (up to 4K), private VLAN, MAC VLAN, QinQ, VLAN per protocol, GVRP
  • Link aggregation: up to 64 LAGs with 8 ports each (LACP/static)
  • Multicast: IGMP/MLD Snooping v1/v2/v3, MVR, up to 2000 groups
  • STP/RSTP/MSTP with 16 MSTI instances
  • Network: RIP, RIPng, OSPFv2, OSPFv3, static routing (IPv4 and IPv6), DHCP server and relay
  • Security: ACL, IP/MAC binding, DHCP snooping, 802.1X, DoS defend, ARP/ND inspection
  • QoS: 8 queues, port control, 802.1p, DSCP/ToS, SP/WRR, bandwidth limiting
  • Management: Omada SDN, CLI, Web (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, sFlow
  • Rack-mountable (kit included)
  • Power supply: 100-240 V AC, 50/60 Hz
  • Maximum power consumption: 19.9 W
  • Surge protection: ±6 kV (ports), ±4 kV (power)
  • ESD protection: ±15 kV (air), ±8 kV (contact)
  • Operating temperature: -5 °C to +45 °C (-4 °F to +140 °F)
  • Storage temperature: -40 °C to +70 °C (-40 °F to +70 °C)
  • Operating humidity: 10 % to 90 % non-condensing
  • Storage humidity: 5 % to 90 % non-condensing
  • Dimensions: 440 × 180 × 44 mm
  • Certifications: CE, FCC, RoHS
REFERENCE / MODEL TPLINK-223 / SG5428X
Special Protection No
Technology IP
PoE No
Fiber Ports 4 (Ten-Gigabit)
RJ45 Ports 24 (Gigabit)
Installation environment Indoor
Managed L3
Ring ERPS || RSTP || STP
Installation Desktop || Rackable
Power Input Power Supply Included
Sub-brand Omada by TP-Link

Documentation

Language Name Type Action
DE
Self-generated File

Comments

There are no comments for the product TPLINK-223.
