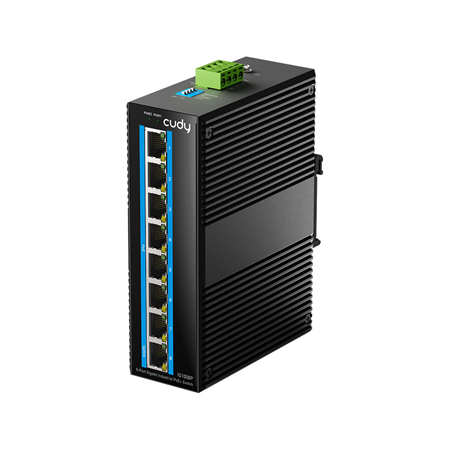

Gigabit Cudy Industrial PoE+ Switch

Technical Features

• Cudy Gigabit Industrial PoE+ Gigabit PoE+ Switch
• 8 10/100/1000 Mbps RJ45 ports (IEEE 802.3af/at)
• Switching capacity of 16 Gbps, forwarding rate of 11.9 Mpps
• 4096-entry MAC table, 9 KB jumbo frame

Communication interface

• 8× shielded RJ45 ports
• DIP switches: PoE Watchdog, VLAN, Extend, Storm Protection
• 4-pin terminal block for redundant power supply

Network

• Protocols: IEEE 802.3af/at, 802.3i/u/ab/x
• Extend mode: up to 250 m (ports 1-4 at 10 Mbps)
• Hardware VLAN (ports 1-7), automatic watchdog

Power supply

• Dual DC: 44~57 V⎓, reverse polarity and short circuit protection
• Max. power consumption: 240 W (without PoE: 2.75 W)

Environmental

• Operating temperature: -40 °C ~ 75 °C
• Storage temperature: -40 °C ~ 85 °C
• Operating and Storage Humidity: 5% ~ 95% non-condensing

Physical characteristics

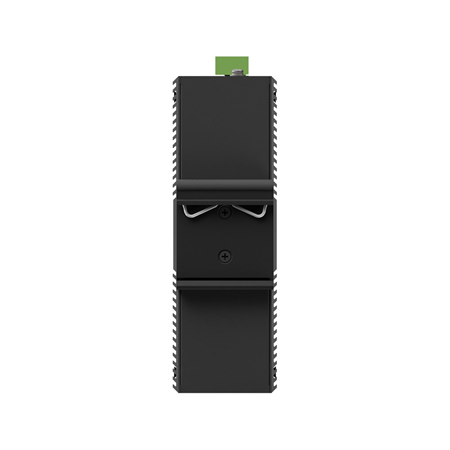

• DIN rail installation
• Aluminum housing with IP40 protection
• Dimensions: 144 × 103 × 47.5 mm
• Weight: 537.5 g

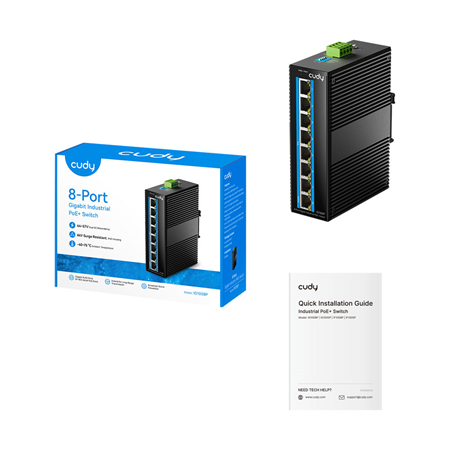

Contents

• IG1008P unit
• Installation guide

Certifications

• FCC, CE, IEC/EN 62368
• Industrial EMC: ESD 8kV contact, 15kV air; EFT, RS, CS, PFMF, vibration, shock, drop
