Mercusys Gigabit 5-Port Switch

TPLINK-197

MS105G

Main features

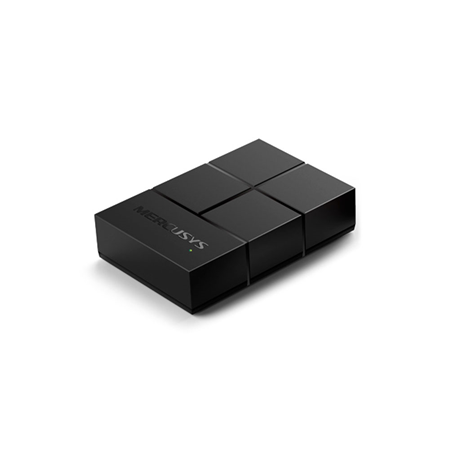

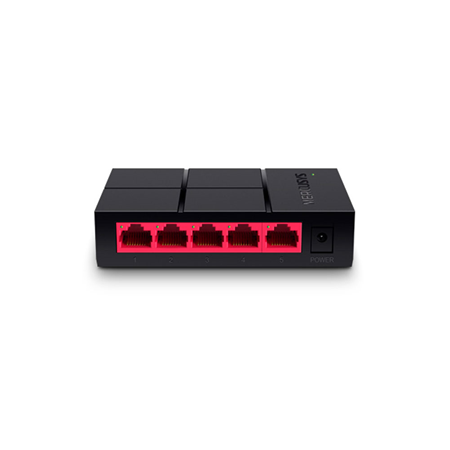

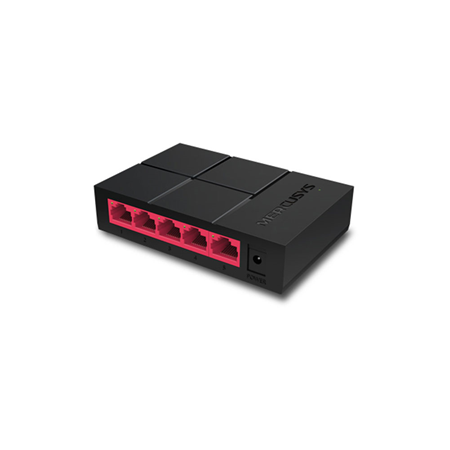

Mercusys MS105G Switch
5 ports 10/100/1000 Mbps
Auto MDI/MDIX
Plug & Play
Fanless design and compact size
Switching capacity of 10 Gbps
512 Kb buffer
16 KB Jumbo
Ideal for home and office environments

Specifications

Unmanageable desktop switch with 5 10/100/1000 Mbps RJ45 ports
Auto-Negotiation and Auto MDI/MDIX
Port speeds:
- 10/100/1000 Mbps half duplex
- 20/200/2000 Mbps in full duplex
Switching capacity: 10 Gbps
Buffer size: 512 KB
Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transfer method: Store and Forward
Jumbo frame: 16 KB
LEDs: 5 port LEDs + power LEDs
External power supply: 5 V / 0.6 A (adapter included)
Fanless, silent design
Mounting: desktop
Dimensions: 105 × 70 × 24.9 mm
Package contents:
- MS105G switch
- Power adapter
- Quick installation guide

REFERENCE / MODEL	TPLINK-197 / MS105G
Special Protection	No
Technology	IP
PoE	No
RJ45 Ports	5 (Gigabit)
Installation environment	Indoor
Material	Plastic
Installation	Desktop
Fan	No
Switch Type	Access
Power Input	Power Supply Included
Sub-brand	Mercusys
