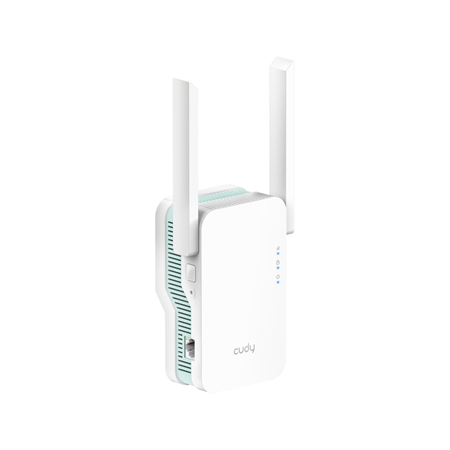

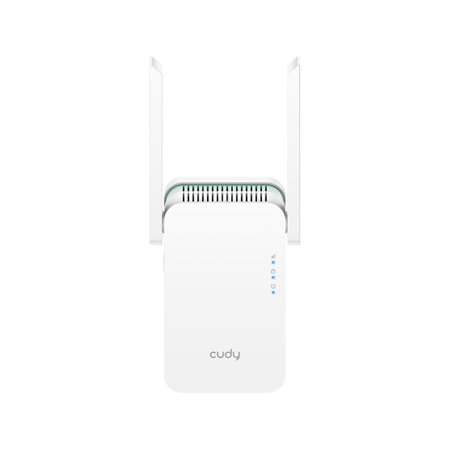

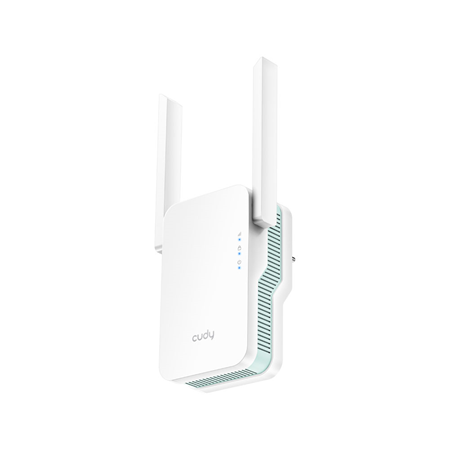

6 Mesh WiFi Extender AX1500 Cudy RE1500

Technical Features

• Cudy RE1500 WiFi 6 Mesh Extender
• 1500 Mbps speed: 300 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
• RTL8197H+RTL8832BR Chipset, Single-Core CPU 1 GHz
• 128 MB DDR3 Memory, 16 MB Flash
• Internal 2T2R antennas with 3.49 dBi gain (2.4 GHz) and 6.24 dBi gain (5 GHz)
• Maximum range 150 m (conditioned by walls and environment)

Interfaces

• 1 RJ45 10/100 Mbps port
• WPS button
• Reset button
• Status LEDs (Power, WPS, signal)

Network

• WiFi Standards 6
• 1024-QAM modulation
• Up to 128 devices, recommended 30
• 80 MHz channel
• WPA/WPA2/WPA3 security
• Modes: Extender, Access Point, Satellite mesh
• Supports wireless and wired backhaul
• Web and app control, local or OTA updates

Power supply

• Direct AC 100~240V power supply
• Max. power consumption: 10 W

Environmental

• Operating temperature: 0 ºC ~ 40 ºC
• Storage temperature: -40 ºC ~ 70 ºC
• Humidity: 10% ~ 90% non-condensing

Physical characteristics

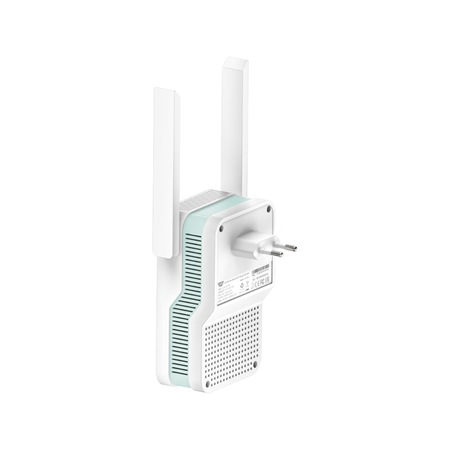

• Direct plug-in installation
• Plastic material
• Dimensions: 129.6 × 80 × 48.6 mm

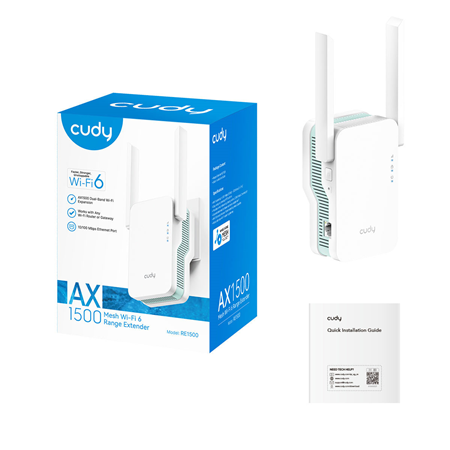

Contents

• CUDY-101 6 Mesh WiFi Extender (RE1500)
• Installation guide

Certifications

• FCC
• CE
