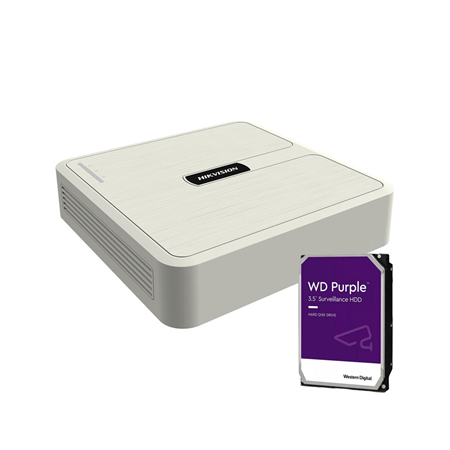

HiWatch™ 5-in-1 8-channel DVR

Name: HIK-632-2TB
SKU: HWD-5108H-G4-2TB
Availability: InStock
Rating: 5 (33 reviews)

HIK-632-2TB

HWD-5108H-G4-2TB

Main features

HIKVISION® HiWatch™ Series 5-in-1 DVR with 8 channels
H.265 Pro+/H.265 Pro
8 1080P BNC channels + 2 IP 5MP channels
1080P Lite@25ips recording
72Mbps bandwidth
HDMI and VGA 1080P outputs
1 input / 1 output RCA audio
8 coaxial audio inputs
Motion detection 2.0
Includes 1 HDD 2TB
1 RJ45, 2 USB

Specifications

5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
Connectable to H.265 Pro+ / H.265 Pro / H.265 / H.265 / H.264+ / H.264 IP cameras
8 BNC channels (BNC inputs can be converted to IP) with coax support:
- HDCVI: 1080P, 720P
- HDTVI: 1080P, 720P
- AHD: 1080P, 720P
- Analog CVBS: 960H, PAL/NTSC
2 IP inputs up to 5MP (8+2)
Simultaneous HDMI (1080P) and VGA (1080P) outputs
Bi-directional audio: 1 RCA input / 1 RCA output
8 audio inputs through coaxial cable
Recording resolution: 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
Stream 1:
- 1080P Stream: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25/30 fps)
- 720P Stream: 720P, VGA, WD1, 4CIF, CIF (25/30 fps)
- Standard stream: WD1, 4CIF, VGA, CIF (25/30 fps)
Stream 2:
- 1080P/720P stream: CIF, QVGA (15 fps)
- Standard stream: CIF, QVGA (25/30 fps)
72Mbps bandwidth
8-channel synchronized playback
Internal capacity for 1 SATA HDD up to 4TB(includes a special 2TB HDD for video surveillance)
Intelligent search
Motion Detection 2.0: Deep learning-based Motion Detection 2.0 can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves.
Self-adaptive RJ45 (10/100M) Ethernet network interface
Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote access for up to 32 users
P2P in the cloud, DDNS DEMES, Push and zero channel
Connections: 2 USB 2.0
Power supply: 12V DC, 1.5A
Power consumption: ≤17W
Operating Temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 200 x 200 x 45 mm (desktop)
Weight: ≤1 kg

REFERENCE / MODEL	HIK-632-2TB / HWD-5108H-G4-2TB
Resolution	1080N
Audio	1 input / 1 output \|\| Audio via coaxial
PoC (Power Over Coax)	No
Technology	5 in 1
Analog Channels	8ch
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Smart Search	Yes
Size	Mini 1U
IP Channels	2ch
Capacity	1 HDD \|\| 2TB HDD included
Alarm channels	No
Intelligent functions	Motion detection 2.0

Documentation

	Language	Name	Type	Action
	DE		Self-generated File
