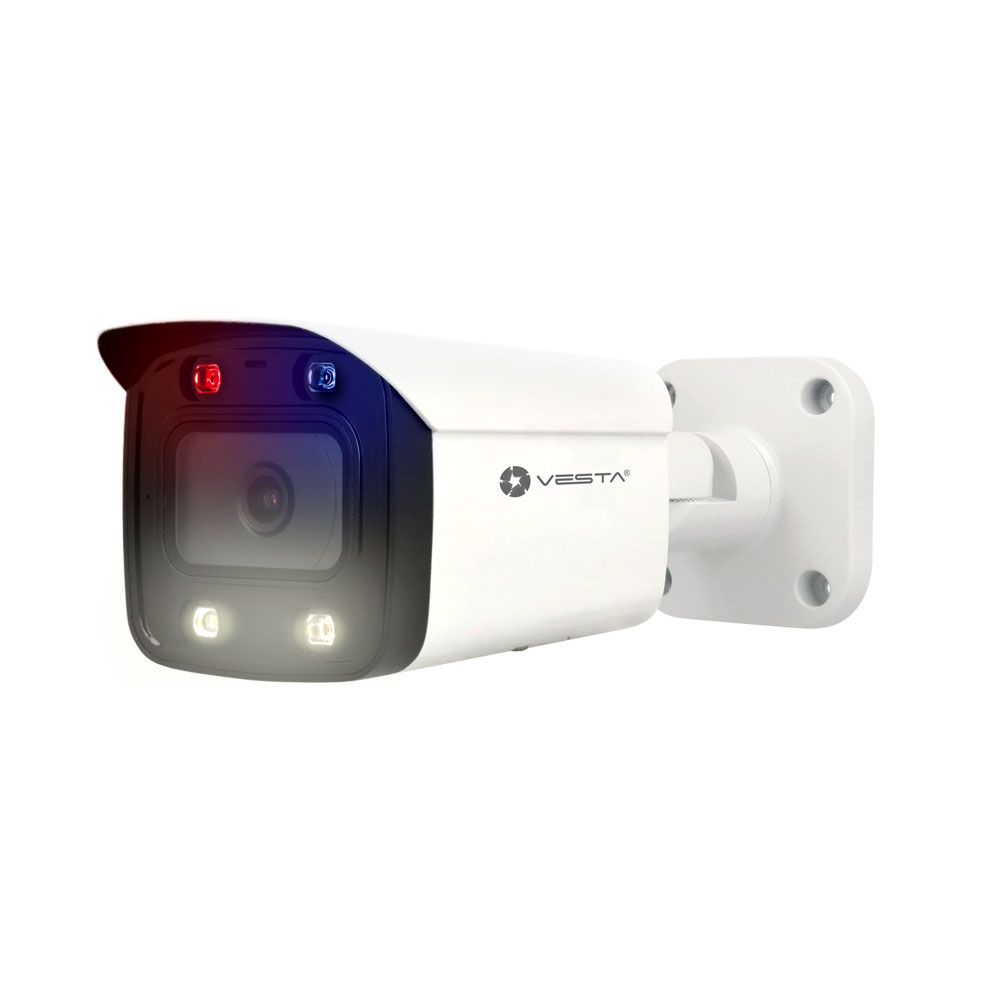

IPC-B34-AS-PV | 4MP Smart Dual Light Active Deterrence Lite AI outdoor IP camera
IPC-B34-AS-PVIPC-B34-AS-PV4MP Smart Dual Light Active Deterrence Lite AI outdoor IP camera
Volver a Network Cameras
Products
CCTV
Network Cameras
Bullet
IPC-B34-AS-PV
IPC-B34-AS-PV
IPC-B34-AS-PV_B

4MP Smart Dual Light Active Deterrence Lite AI outdoor IP camera

IPC-B34-AS-PV

IPC-B34-AS-PV

Main features

  • Vesta Advanced Video IP Camera
  • 4MP@25/30ips, H.265+
  • 0.006 lux, Smart Dual Light 50m
  • Fixed lens 2.8 mm
  • WDR 120dB, 3D-NR
  • Perimeter protection and intelligent motion detection
  • Active deterrence
  • Built-in microphone and speaker
  • MicroSD slot, reset button
  • RJ45, Onvif, IP67, PoE.

Specifications

  • 4 megapixel 1/2.8" CMOS sensor
  • H.265+, H.264+, H.265, H.264 video formats
  • Resolution up to 4MP (2688x1520)
  • Stream 1: 4MP (1~25/30 ips)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 720P (1~25/30 fps)
  • Day/Night Mode
  • Smart Dual LightIR light 50 meters, warm light 50 meters
  • 0.006 lux, 0 lux with activated illumination
  • Fixed lens 2.8mm
  • Viewing angle: 111°(H), 59°(V), 134°(D).
  • Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
  • Intelligent motion detection
  • Built-in active deterrent with audible and luminous alarm (blue and red lights)
  • Alarm arming/disarming
  • Built-in microphone and speaker
  • MicroSD card slot up to 256 GB (card not included)
  • Reset button
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP,SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later, Chrome and Firefox browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC (±30%) / PoE (802.3af)
  • Power consumption: 2.8 W (basic), 5.5 W (maximum)
  • Storage temperature: -40°C ~ +60°C (-40°C ~ +60°C)
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Metal housing
  • Dimensions: 76 (W) x 77 (H) x 224 mm
  • Net weight: 760 g
REFERENCE / MODEL IPC-B34-AS-PV / IPC-B34-AS-PV
Resolution 4MP || 4MP
Series TiOC || Vesta Advanced Video || TiOC || Vesta Advanced Video
Audio Microphone || Speaker || Microphone || Speaker
IR Distance 41-80m || 41-80m
Ingress protection IP67 || IP67
Lens 2,8 mm || 2,8 mm
Special Protection No || No
Sensor 1/2.8" CMOS || 1/2.8" CMOS
StarLight StarLight || StarLight
WDR (Backlight) WDR (120dB) || WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+ || H.264 || H.264+ || H.265 || H.265+
PoE PoE || PoE
SD Slot Yes || Yes
Colour White || White
Certificate NDAA || NDAA
Installation environment Outdoor || Outdoor
Material Metal || Metal
Alarm channels No || No
Connectivity IP || YES (P2P) || IP || YES (P2P)
Intelligent functions Perimeter protection || SMD || Perimeter protection || SMD
Compatibility Onvif || Onvif
