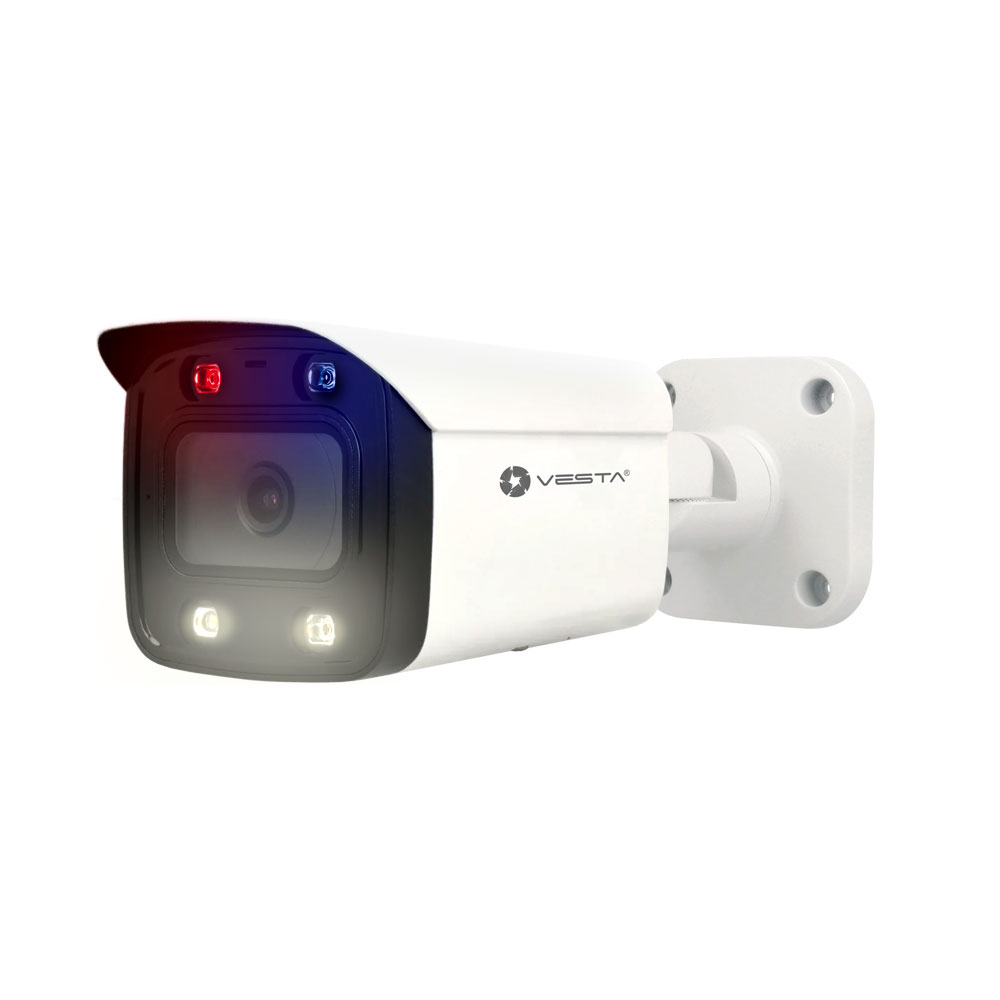

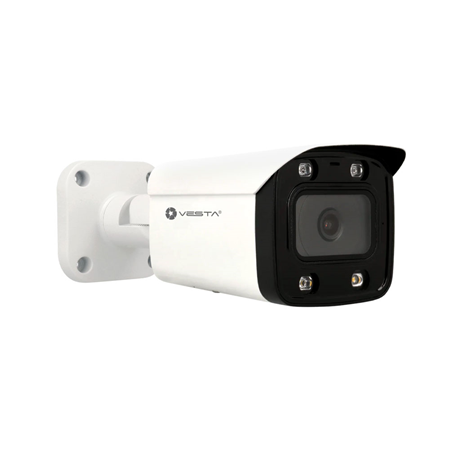

VESTA Advanced Video Magic Color Active Deterrence 4MP outdoor IP camera

Technical Specifications

• 4 MP 1/1.8" CMOS sensor with progressive scan
• Day/night mode in color and black-and-white
• Minimum illumination of 0.0002 lux@F1.0 in color and 0 lux with illuminator activated
• Magic Color Technology with white light up to 50 m
• Red and blue LED alarm lights
• Fixed lens 2.8 mm
• Maximum aperture F1.0
• Signal-to-noise ratio greater than 56 dB

Video stream

• H.264H, H.264M, H.264B, and H.265 compression
• Intelligent compression: H.264H+, H.264M+, H.264B+, and H.265+
• 3 streams
• Stream 1: 4MP@25/30 fps
• Stream 2: D1@25/30 fps
• Stream 3: 720P@25/30 fps
• CBR and VBR bitrate control
• Video bitrate from 56 Kbps to 8192 Kbps in H.264 and H.265

Functionalities

• BLC, HLC, 140 dB WDR, and 3D-NR
• White balance
• Automatic and manual gain control
• Configurable motion detection in 4 rectangular zones
• 180° image rotation
• Mirror
• 4-zone privacy mask
• Illuminator control in automatic or manual mode
• Armed and disarmed

Smart Features

• SMD Smart Motion Detection
• Perimeter protection with intrusion and line-crossing detection
• Classification of people, vehicles, and non-motorized vehicles for intrusion and line-crossing detection
• Facial detection
• People counting
• Heat map
• Intelligent object detection
• Video metadata for vehicles, non-motorized vehicles, faces, and people
• Person metadata including age, bag, hat, pants color and type, gender, clothing color and type, and umbrella
• AI Search in conjunction with NVR

Active deterrence

• Audible alarm
• Visual alarm with red and blue LEDs

Audio

• Built-in microphone
• Built-in speaker
• Two-way audio
• Audio compression: G.711a, G.711Mu, G.726, and G.726ASF

Storage

• FTP
• MicroSD card slot supporting up to 256 GB in FAT32 (card not included)

Alarms

• Alarm events for disconnection, IP conflict, missing SD card, capacity warning, and SD card error

Network

• RJ45 10/100 Base-T network interface
• Protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP, RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, and SMTP
• Compatible with ONVIF, CGI, and P2P
• SDK and API
• Up to 20 users with a total bandwidth of 80 M
• Compatible with IE8 and later, Chrome, and Firefox
• VESTA Config Tool software
• VESTA Advanced mobile app
• VSS (VESTA Surveillance Station) Platform

Power

• 12 V DC (±30%) or 802.3af PoE
• Basic power consumption: 2.5 W
• Maximum power consumption: 5.2 W

Environmental

• Operating temperature: -30 °C to 60 °C
• Storage temperature: -40 °C to 60 °C
• Relative humidity below 95%
• IP67 protection

Physical Characteristics

• Metal housing
• Dimensions: 224 x 77 x 76 mm
• Net weight: 750 g

Contents

• VESTA Advanced Video- Magic Color -Active Deterrence IP Camera IPC-B34-L-MC-PV-V2 (IPC-B34-L-MC-PV-V2)
