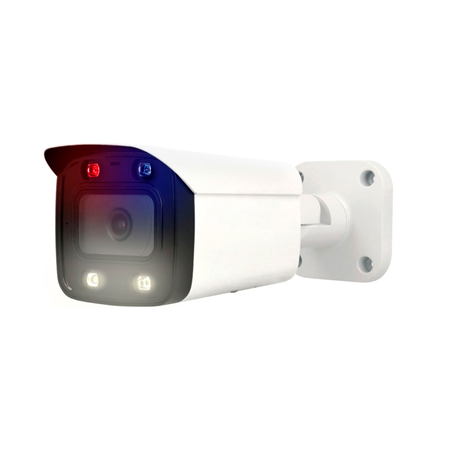

5MP outdoor IP camera

Technical features

• 5-megapixel 1/2.7" CMOS sensor
• Resolution up to 5MP (2880x1620)
• Day/night mode
• 0.001 lux and 0 lux with illumination activated
• Smart Dual Light with 50m IR light and 50m white light
• Fixed lens 2.8 mm
• 111° horizontal, 59° vertical and 134° diagonal viewing angle

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 5MP@25 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 ips

Functionalities

• Image modes BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• 4-zone privacy mask
• White light deterrence
• Arming/disarming available from camera menu

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with person and vehicle classification
• Face detection
• People counting
• Heat map
• Loitering detection
• Abandoned object detection
• Lost object detection
• Crowd detection
• Parking detection

Active deterrence

• Integrated audible and visual alarm
• Blue and red lights for active deterrence

Audio

• Built-in microphone
• Built-in speaker with audio clips and two-way audio
• External audio interface

Storage

• MicroSD card slot up to 256GB (card not included)

Alarms

• Alarm input/output

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Up to 20 users
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC or 802.3af PoE power supply
• Power consumption of 2.8 W in basic operation and 5.5 W max.

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing
• White color
• Dimensions: 76 (W) x 77 (H) x 224 mm
• Net weight: 760 g

Contents

• IPC-B35-AS-PV-NB Outdoor 5MP IP Camera (IPC-B35-AS-PV-NB)

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
