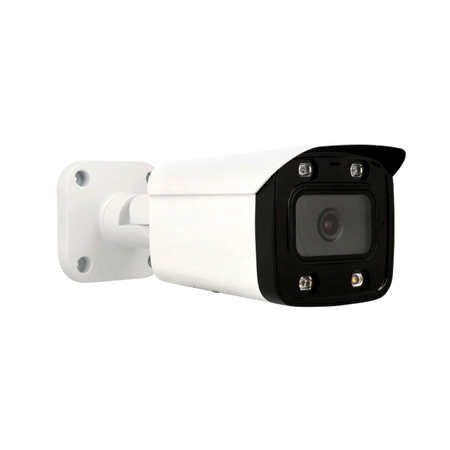

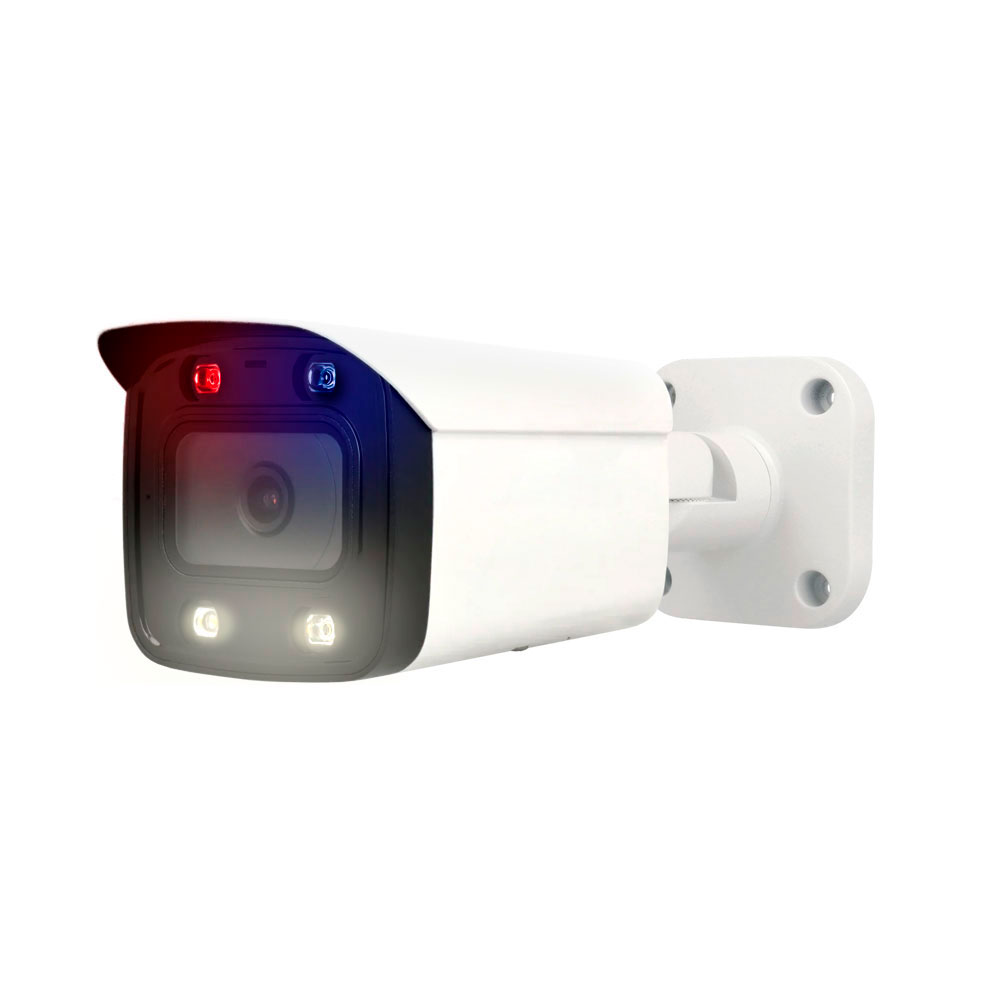

8MP outdoor IP camera with Fixed lens

Thanks to the Advanced AI processor, Magic Color technology takes your images to an exceptional level of perfection. This intelligent processor optimizes each frame by reducing noise, improving dynamic range and adjusting colors, thus delivering superior visual quality. Designed to operate in varying lighting conditions, Magic Color ensures sharp and consistent images, making it the foundation for advanced video surveillance solutions.

Technical Features

• 1/2.7" 8 megapixel CMOS sensor
• Resolution up to 8MP (3840x2160)
• Day/night mode
• Magic Color technology for color images in any environment
• 50 meter white light
• 0.006 lux and 0 lux with illumination on
• Fixed lens 2.8 mm

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 8MP@25 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 ips

Functionalities

• BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-Zone video sensor and 4-Zone privacy mask
• White light deterrence
• Arming/disarming available from camera menu

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with person and vehicle classification

Active deterrence

• Integrated audible and visual alarm
• Blue and red lights for active deterrence

Audio

• Integrated microphone
• Built-in speaker with audio clips and two-way audio

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with iOS and Android mobile devices

Power supply

• 12V DC (±30%) or 802.3af PoE power supply
• Power consumption of 2.8 W in basic operation and 5.5 W max.

Environmental

• Storage temperature of -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing
• Dimensions: 76 (W) x 77 (H) x 224 mm
• Net weight: 760 g

Contents

• IPC-B38-L-MC-PV-NB (IPC-B38-L-MC-PV-NB) 8MP IP Camera Magic Color with Fixed lens for outdoor use

Certifications and regulations

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
