SAM-4398-RE | IP bullet camera Serie ECO-IP with Smart IR of 30 m, for outdoors
SAM-4398-REIPC-B1B20-LIP bullet camera Serie ECO-IP with Smart IR of 30 m, for outdoors

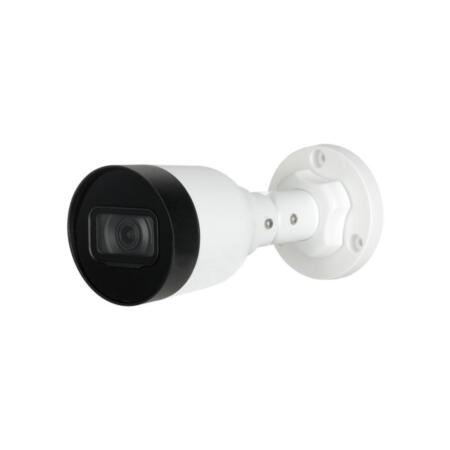

IP bullet camera Serie ECO-IP with Smart IR of 30 m, for outdoors

SAM-4398-RE

IPC-B1B20-L

Main features

  • IP bullet camera Serie ECO-IP with Smart IR of 30 m, for outdoors
  • H.265+/H.265/H.264+/H.264/MJPEG
  • 1/2,7” CMOS, 2MP
  • Dual stream
  • 1080P
  • 2,8 mm (115°) lens
  • ICR
  • 0,09 lux
  • OSD, AWB, AGC, digital WDR, 3D-DNR, 4 ROI, mirror mode, motion detection and privayc mask
  • Onvif
  • IP67
  • 3AXIS
  • 12V DC
  • PoE
  • 100% compatible with DAHUA
  • SmartPSS, Evo PLUS, IDMSS and DSS.

Specifications




Features

- 1/2,7” CMOS, 2 MP
- Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
- H.265+/H.265/H.264+/H.264/MJPEG
- Stream 1: 1080P (1~20 fps)
- Stream 2: D1 (1~25 fps)
- Day/night mode with removable mechanical filter
- Smart IR: 1 led, up to30 meters
- 0,09 lux F2.0 (color, 1/3s, 30IRE) / 0,5 lux F2.0 (color, 1/30, 30IRE) / 0 lux F2.0 IR On
- 2,8 mm lens
- Viewing angle: (H)115°, (V)60°
- 16X digital zoom
- White balance: Auto/Natural/Street Lamp/Outdoor/Manual
- Auto/manual gain control
- Backlight compensation (BLC, HLC)
- Digital WDR
- 3D-DNR
- Motion detection: 4 rectangular zones
- Privacy mask: 4 rectangular zones
- 4 ROI
- Mirror mode
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: HTTP, TCP, ARP, RTSP, RTP, RTCP, UDP, DHCP, DNS, IPV4, NTP, Multicast, ICMP, TLS
- Compatible with ONVIF Profile S/G
- Unicast / Multicast streaming method
- Up to 10 / 20 users
- 100% compatible with DAHUA.
- Compatible with SmartPSS, Evo PLUS, IDMSS and DSS.
- Power supply: 12V DC
- Consumption: 4,2W
- PoE support (802.3af)
- Working temperature -30°C ~ +60°C
- RH: <95%
- IP67
- Metal and plastic case
- Dimensions: Ø70 x 162,6 mm
- Weight: 220 g
- 3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(rotation)

REFERENCE / MODEL SAM-4398-RE / IPC-B1B20-L
Resolution 2MP
IR Distance 21-40m
Ingress protection IP67
Lens 2,8 mm
Special Protection No
Sensor 1/3" CMOS
StarLight No
WDR (Backlight) D-WDR
Codec H.265
PoE PoE
SD Slot No
Connectivity IP
Intelligent functions No
