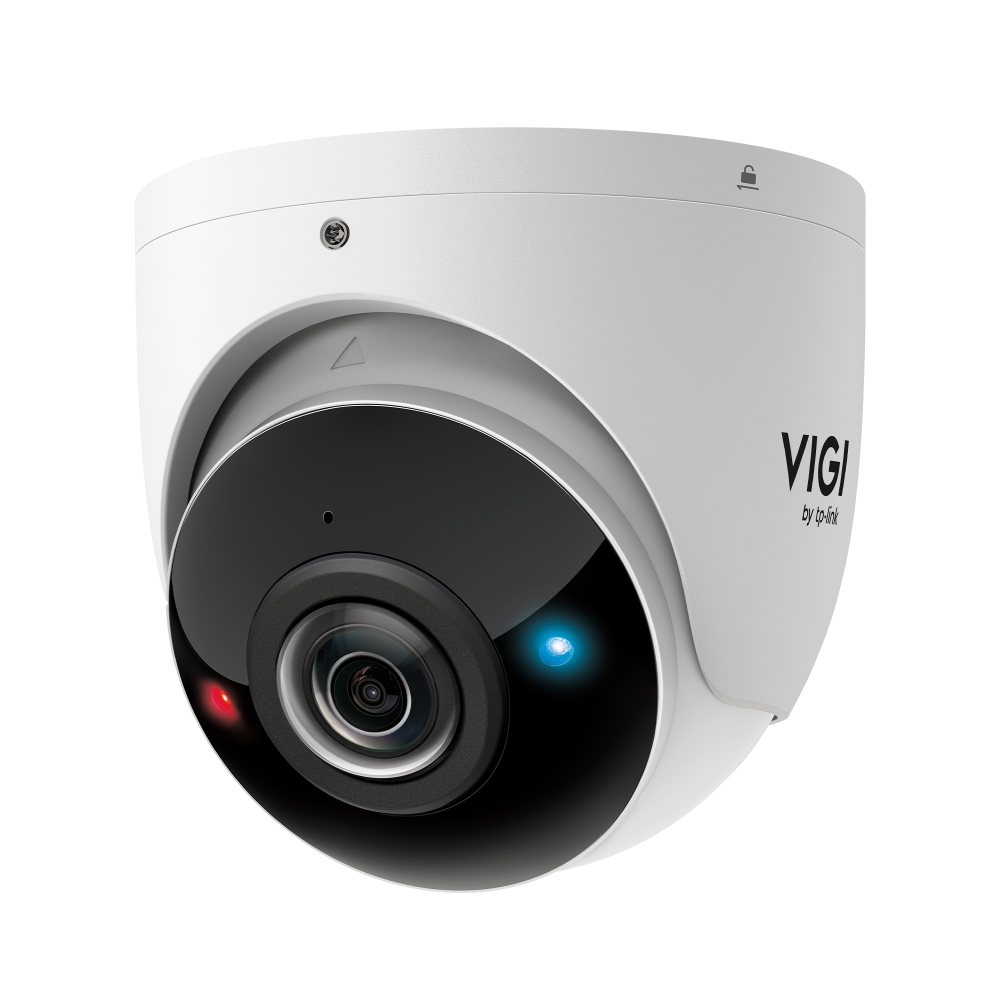

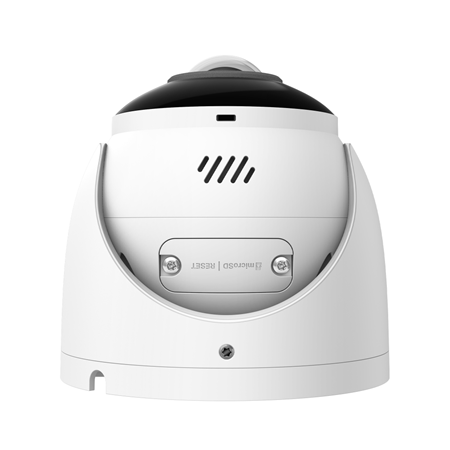

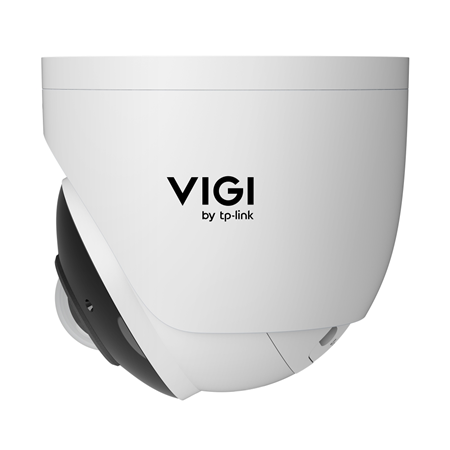

TPLINK-150 | Panoramic IP 8MP dome with 180° vision, active deterrence and advanced analytics
TPLINK-150InSight S485PIPanoramic IP 8MP dome with 180° vision, active deterrence and advanced analytics
TPLINK-150
TPLINK-150_B
TPLINK-150_C
TPLINK-150_D

Panoramic IP 8MP dome with 180° vision, active deterrence and advanced analytics

TPLINK-150

InSight S485PI

Main features

  • Dome IP TP-Link VIGI 8MP@30ips
  • Fixed lens 1.65 mm
  • 0.005 lux
  • 180° panoramic vision
  • WDR, BLC, HLC, 3D DNR
  • Active deterrence with red-blue lights and audio
  • Detection of people and vehicles
  • Built-in microphone and speaker
  • MicroSD slot
  • Alarm interface
  • IP67 and IK10 protection
  • PoE

Specifications

  • 1/2.7" progressive CMOS sensor with maximum resolution of 3840 × 2160
  • Fixed lens 1.65 mm with F2.0 aperture and M12 mount
  • Angle of View: 180° (H), 86° (V), 180° (D)
  • Supported resolutions: 8MP (3840 × 2160), 4MP (2560 × 1440), 3MP (2304 × 1296), 2048 × 1280, 1080p (1920 × 1080), 720p (1280 × 720)
  • Stream 1: up to 30 fps at 8MP
  • Stream 2: up to 30 fps at 848 × 480, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240
  • Video compression: H.265+, H.265, H.264+, H.264
  • 0.005 lux (color), 0 lux with IR
  • 4 IR LEDs with up to 20 m range
  • Image functions: WDR, BLC, HLC, 3D DNR, ROI, privacy mask (up to 4 zones)
  • Intelligent functions:
    • Line crossing detection
    • Intrusion detection
    • Abandoned object detection
    • Object removal detection
    • Region entry detection
    • Region exit detection
    • Scene change detection
    • Loitering detection
    • Anomalous sound detection
    • Person and vehicle classification
  • Active deterrence with red-blue lights and audio
  • Built-in microphone and speaker for two-way audio
  • MicroSD card storage up to 512 GB
  • ONVIF compatible (Profile S, T, G)
  • Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
  • Supported software: VIGI App, VIGI VMS, Web UI, Cloud VMS
  • RJ-45 10/100 Mbps network interface with PoE support (802.3af/at)
  • Alarm interface: 1 input and 1 output
  • Reset button included
  • Power supply: 12 VDC ±5% or PoE; max. power consumption 12.14W
  • Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
  • Storage temperature: -40°C to +60°C (-40°F to +60°F)
  • Relative humidity: ≤95% non-condensing
  • Metal housing
  • IP67 protection
  • IK10 protection
  • Dimensions: 132 × 132 × 56 mm
  • Net weight: 0.44 kg (without accessories)
  • Gross weight: 0.48 kg (with accessories)
  • Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF
REFERENCE / MODEL TPLINK-150 / InSight S485PI
Resolution 8MP
Audio Microphone || Speaker || Two-way
IR Distance 10-20m
Ingress protection IP67
Lens 180° panoramic
Special Protection Vandal-proof (IK10)
Sensor 1/2.7" CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE || PoE+
SD Slot Yes
Colour White
Installation environment Outdoor
Material Metal
Alarm channels 1 input / 1 output
Connectivity IP
Intelligent functions Abandoned objects || Perimeter protection
Compatibility Onvif
Sub-brand VIGI by TP-Link
