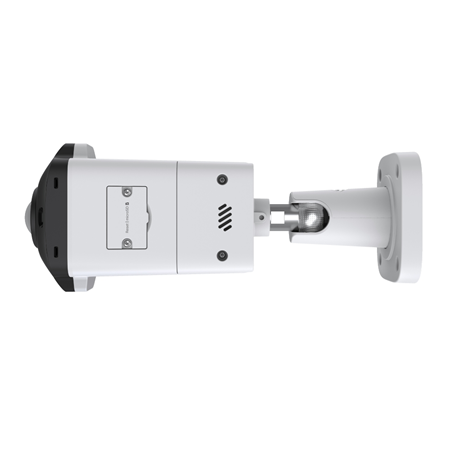

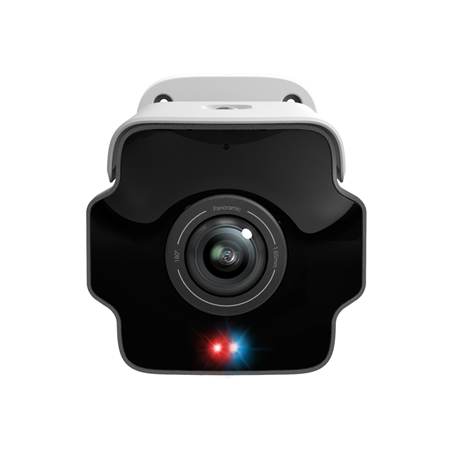

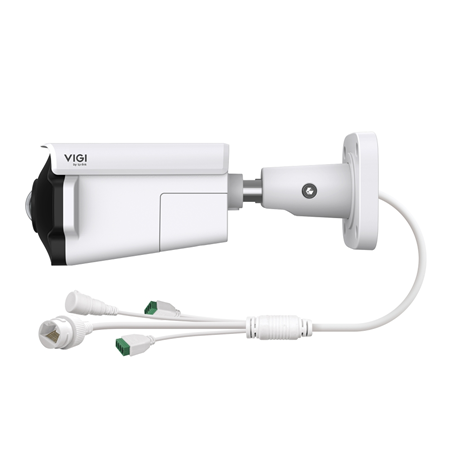

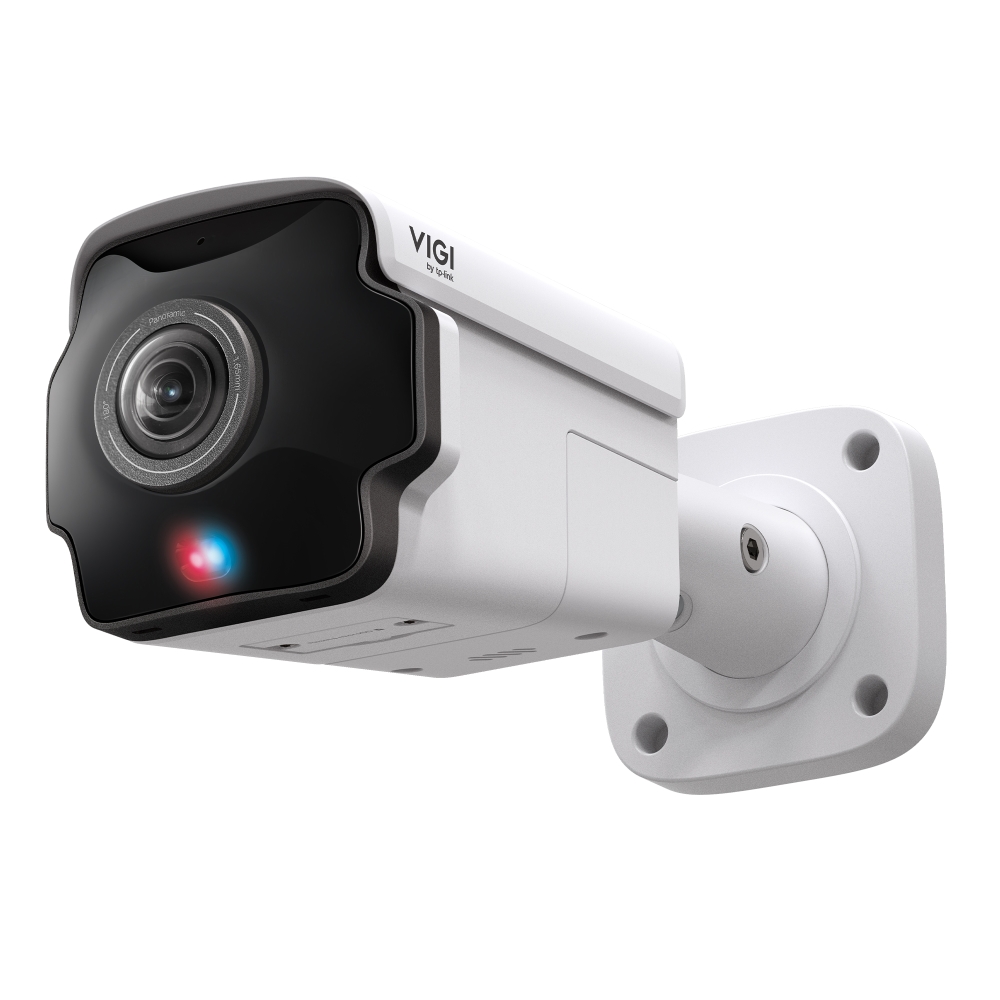

Panoramic IP 8MP camera with active deterrence and advanced analytics

Name: TPLINK-151
SKU: InSight S385PI
Price: 486.25 EUR
Availability: InStock
Rating: 5 (52 reviews)

TPLINK-151

InSight S385PI

Main features

IP Camera TP-Link VIGI 8MP@30ips
Fixed lens 1.65 mm
0.005 lux
Panoramic vision 180 °
WDR, BLC, HLC, 3D DNR
Active deterrence with red-blue lights and audio
Detection of people and vehicles
Built-in microphone and speaker
MicroSD slot
Alarm interface
IP67 and IK10 protection
PoE

Specifications

1/2.7" progressive CMOS sensor with a maximum resolution of 3840 × 2160
Fixed lens 1.65 mm with F2.0 aperture and M12 mount
Angle of view: 180° (H), 86° (V), 180° (D)
Supported resolutions: 8MP (3840 × 2160), 4MP (2560 × 1440), 3MP (2304 × 1296), 2048 × 1280, 1080p (1920 × 1080), 720p (1280 × 720)
Main stream: up to 30 fps at 8MP
Secondary stream: up to 30 fps at 848x480,704x576, 640x480, 640x360,352x288, 320x240
Video compression: H.265+, H.265, H.264+, H.264
0.005 lux (color), 0 lux with IR
4 IR LEDs with a range of up to 20 m (65 ft)
Image functions: WDR, BLC, HLC, 3D DNR, ROI, privacy mask (up to 4 zones)
Intelligent functions:
- Line crossing detection
- Intrusion detection
- Abandoned object detection
- Object removal detection
- Region entry detection
- Region exit detection
- Scene change detection
- Loitering detection
- Anomalous sound detection
- Person and vehicle classification
Active deterrence with red-blue lights and audio
Built-in microphone and speaker for two-way audio
MicroSD card storage up to 512 GB (card not included)
ONVIF compliant (Profile S, T, G)
Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
Supported software: VIGI App, VIGI VMS, Web UI, Cloud VMS
RJ-45 10/100 Mbps network interface with PoE support (802.3af/at)
Alarm interface: 1 input and 1 output
Reset button included
Power supply: 12 VDC ±5% or PoE; max. power consumption 12.14W
Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature: -40°C to +60°C (-40°F to +60°F)
Relative humidity: ≤95% non-condensing
Metal housing
IP67 protection
IK10 protection
Dimensions: 132 × 132 × 56 mm
Net weight: 0.44 kg (without accessories)
Gross weight: 0.48 kg (with accessories)
3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF.

REFERENCE / MODEL	TPLINK-151 / InSight S385PI
Resolution	8MP
Audio	Microphone \|\| Speaker \|\| Two-way
IR Distance	10-20m
Ingress protection	IP67
Lens	180° panoramic
Special Protection	Vandal-proof (IK10)
Sensor	1/2.7" CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE \|\| PoE+
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	1 input / 1 output
Connectivity	IP
Intelligent functions	Abandoned objects \|\| Perimeter protection
Compatibility	Onvif
Sub-brand	VIGI by TP-Link
