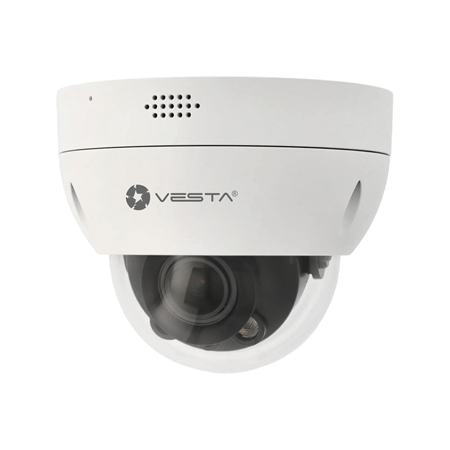

IPC-D24-ZAS-L | 4MP Smart Dual Light Active Deterrence Lite AI vandal resistant IP dome for outdoor use
IPC-D24-ZAS-LIPC-D24-ZAS-L4MP Smart Dual Light Active Deterrence Lite AI vandal resistant IP dome for outdoor use
Volver a Network Cameras
Products
CCTV
Network Cameras
Mini-Dome
IPC-D24-ZAS-L
IPC-D24-ZAS-L
IPC-D24-ZAS-L_B

4MP Smart Dual Light Active Deterrence Lite AI vandal resistant IP dome for outdoor use

IPC-D24-ZAS-L

IPC-D24-ZAS-L

WARNING:

Coming soon: integration with all VESTA panels.

View previous model
Domo IP Smart Hybrid Light 4MP de exterior HIK-766

Main features

  • Vesta Advanced Video IP Dome
  • 4MP@25/30ips, H.265+
  • 0.006 lux, Smart Dual Light 30-40m
  • 2.7 ~ 13.5mm motorized optics
  • Digital WDR, 3D-NR
  • Perimeter protection and intelligent motion detection
  • Active deterrence
  • Built-in microphone and speaker
  • MicroSD slot, RJ45, Onvif, IP67, IK10, PoE.

Specifications

  • 4 megapixel 1/2.7" CMOS sensor
  • H.265+, H.264+, H.265, H.264 video formats
  • Resolution up to 4MP (2688x1520)
  • Stream 1: 4MP (1~25/30 ips)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 720P (1~25/30 fps)
  • Day/Night Mode
  • Smart Dual Light: 1 IR led (40 meters) + 1 warm light led (30 meters)
  • 0.006 lux, 0 lux with lighting activated
  • 2.7 ~ 13.5 mm motorized optics
  • Angle of view: 99°~28°(H), 71°~21°(V), 134°~35°(D)
  • Imaging modes: BLC, HLC, Digital WDR, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
  • Intelligent motion detection
  • Active deterrence by sound and light alarm
  • Built-in microphone and speaker
  • MicroSD card slot up to 256 GB (card not included)
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Up to 20 users
  • Compatible with IE8 and later, Chrome and Firefox browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC / PoE (802.3af)
  • Power consumption: 2.8 W (basic), 6.5 W (maximum)
  • Storage temperature from -40°C ~ +60°C
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Vandal protection IK10
  • Metal housing
  • Dimensions: Ø122 x 102 mm
  • Net weight: 520 g
REFERENCE / MODEL IPC-D24-ZAS-L / IPC-D24-ZAS-L
Resolution 4MP
Series Vesta Advanced Video
Audio Microphone || Speaker
IR Distance 21-40m
Ingress protection IP67
Lens Motorized 2,7~13,5 mm
Special Protection Vandal-proof (IK10)
Sensor 1/2.8" CMOS
StarLight StarLight
WDR (Backlight) D-WDR
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot Yes
Colour White
Certificate NDAA
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions Perimeter protection || SMD
Compatibility Onvif

Documentation

Language Name Type Action
EN
Manual
ES
Manual
FR
Manual
IT
Manual
DE
Self-generated File
