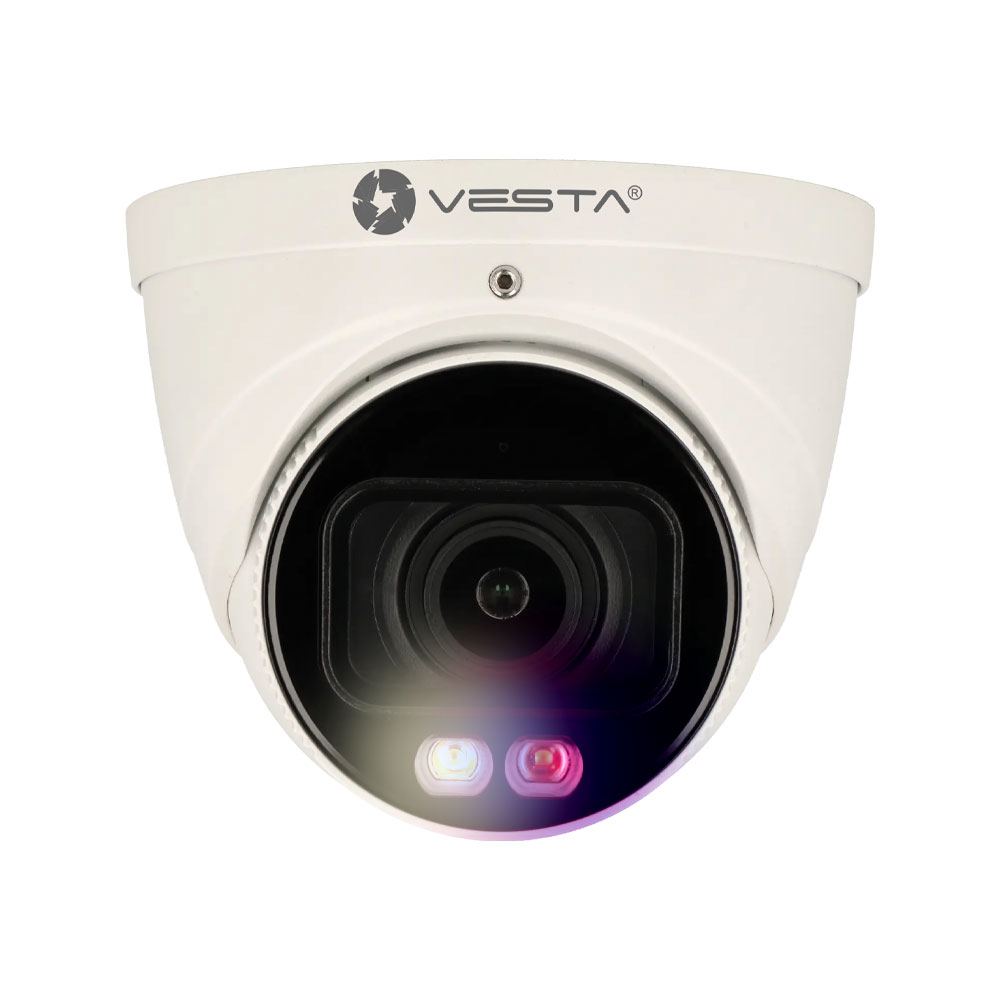

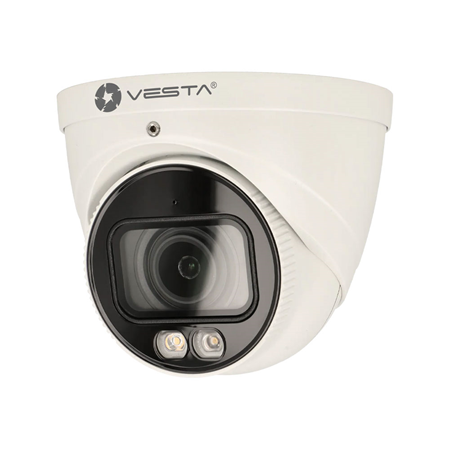

VESTA Advanced Video Smart Dual Light Magic Color Active Deterrence 4MP IP dome with WideSeek for outdoor use

Technical Specifications

• 4MP 1/1.8" CMOS sensor with progressive scan
• Minimum illumination of 0.0005 lux@F1.6 in color (30 IRE), 0.0004 lux@F1.6 in B/W (30 IRE), and 0 lux with illuminator on
• Smart Dual Light with IR up to 40 m and warm light up to 40 m
• Automatic or manual illuminator control
• Varifocal lens Motorized zoom from 2.8 mm to 12 mm
• Maximum aperture F1.6

Video stream

• H.264H, H.264M, H.264B, and H.265 compression
• Smart compression: H.264H+, H.264M+, H.264B+, and H.265+
• 3 video streams
• Stream 1: 4MP@1–25/30 fps
• Stream 2: D1@1–25/30 fps
• Stream 3: 720P@1–25/30 fps
• CBR and VBR bitrate control
• H.264 bitrate from 56 Kbps to 8192 Kbps
• H.265 bitrate from 56 Kbps to 8192 Kbps

Functionalities

• Magic Color ) technology to optimize the image in low-light conditions
• Day/night mode in color and B/W
• BLC, HLC, 140 dB WDR, and 3D-NR
• White balance
• Automatic and manual gain control
• Configurable motion detection in 4 rectangular zones
• 180° image rotation
• Mirror function
• 4-zone privacy mask

Smart features

• SMD smart motion detection
• Perimeter protection with intrusion detection and line crossing
• Classification of people, vehicles, and non-motorized vehicles in perimeter protection
• Facial Detection
• People counting
• Heat Map
• Intelligent object detection
• Video metadata for vehicles, non-motorized vehicles, faces, and people
• Person metadata including age, bag, hat, pants color and type, gender, clothing color and type, and umbrella
• WideSeek forensic search by natural description: The same search engine is integrated into the surveillance software (VSS) and the VESTA Advanced app, allowing you to investigate from anywhere

WideSeek Features

• Search by description of a person, vehicle, or any object
• Describe what you’re looking for, and WideSeek analyzes the history to find it—no need to remember the date or time
• Filter by characteristics and attributes—starting with color, clothing, or any other feature—to narrow down the search in seconds
• Search directly within existing recordings, without reconfiguring cameras or modifying the installation
• Investigations in minutes: Turn hours of reviewing a timeline into a quick search and a few relevant clips—e.g., “Person wearing glasses and a red T-shirt”

Active deterrence

• Built-in audible alarm
• Visual alarm via red and blue LEDs
• Arming and disarming the alarm

Audio

• Built-in microphone
• Built-in speaker
• Two-way audio
• Audio compression: G.711a, G.711Mu, G.726, and G.726ASF

Storage

• Storage via FTP
• MicroSD card slot supporting up to 256 GB in FAT32 (card not included)

Alarms

• Alarm events for disconnection, IP conflict, missing SD card, capacity warning, and SD card error

Network

• RJ45 10/100 Base-T network interface
• Protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, and SMTP
• Compatible with ONVIF, CGI, and P2P
• SDK and API
• Up to 20 users with a total bandwidth of 80 M
• Compatible with IE8 and later, Chrome, and Firefox
• VESTA Config Tool software
• VESTA Advanced mobile app
• VSS (VESTA Surveillance Station) Platform

Power

• Powered by 12 V DC (±30%) or 802.3af PoE
• Basic power consumption: 2.5 W
• Maximum power consumption: 6.2 W

Environmental

• Operating temperature: -30°C to +60°C
• Operating relative humidity less than 95%
• Storage temperature: -40°C to +60°C
• IP67 protection

Physical Characteristics

• Metal housing
• Dimensions: 110 × Ø122 mm
• Net weight: 640 g

Contents

• VESTA Advanced Video Smart Dual Light Magic Color 4MP Active Deterrence IP Dome IPC-T34-ZAS-MC-PV-V2 (IPC-T34-ZAS-MC-PV-V2)
