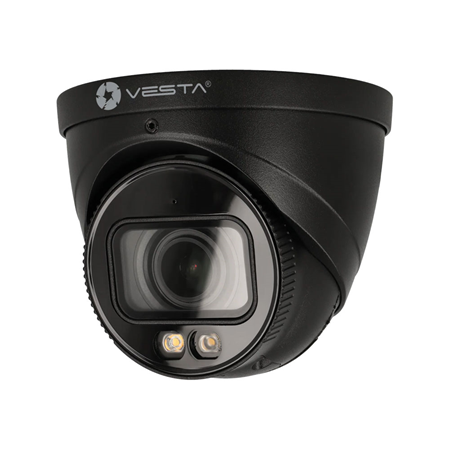

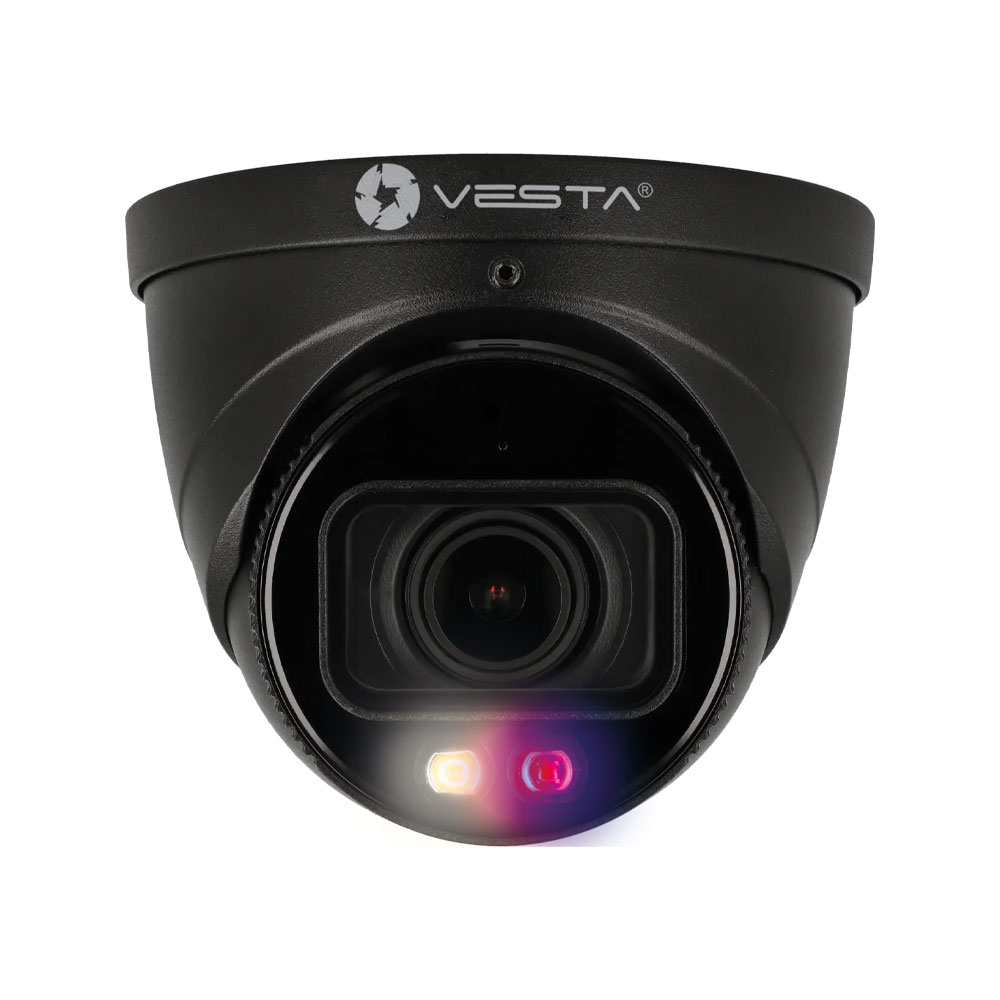

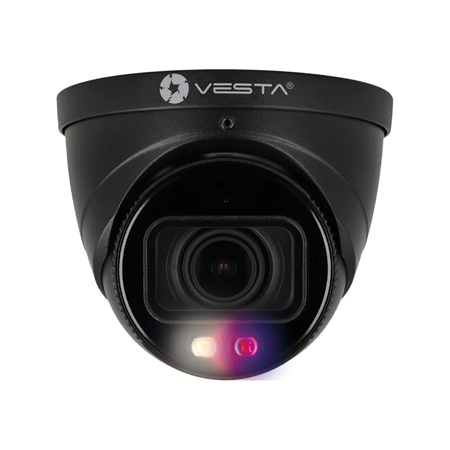

IPC-T38L-ZAS-PV-B | 8MP Smart Dual Light Active Deterrence Lite AI outdoor IP dome
IPC-T38L-ZAS-PV-BIPC-T38L-ZAS-PV-B8MP Smart Dual Light Active Deterrence Lite AI outdoor IP dome
Volver a Network Cameras
Products
CCTV
Network Cameras
Mini-Dome
IPC-T38L-ZAS-PV-B
IPC-T38L-ZAS-PV-B
IPC-T38L-ZAS-PV-B_B

8MP Smart Dual Light Active Deterrence Lite AI outdoor IP dome

IPC-T38L-ZAS-PV-B

IPC-T38L-ZAS-PV-B

View previous model
Domo IP de 8MP Smart Dual Light Active Deterrence Pro AI para exterior IPC-T38-ZAS-PV-B

Main features

  • Vesta Advanced Video IP Dome
  • 8MP@20ips, H.265+
  • 0.007/0.0007 lux, Smart Dual Light 40m
  • Motorized lens 2.7 ~ 13.5 mm
  • WDR 120dB, 3D-NR
  • Perimeter protection and intelligent motion detection
  • Active deterrence
  • Built-in microphone and speaker
  • MicroSD slot, reset button
  • RJ45, Onvif, IP67, PoE.

Specifications

  • 1/2.7" 8-megapixel CMOS sensor
  • H.265+, H.264+, H.265, H.264 video formats
  • Resolution up to 8MP (3840x2160)
  • Stream 1: 8MP (1~20 fps)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 720P (1~25/30 fps)
  • Day/Night Mode
  • Smart Dual LightIR light 40 meters, warm light 40 meters
  • 0.007 lux (color), 0.0007 lux (B/W), 0 lux with activated illumination
  • Lens 2.7~13.5 mm motorized
  • Angle of view: 109°~30°(H), 56°~17°(V), 131°~35°(D)
  • Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
  • Intelligent motion detection
  • Built-in active deterrent with audible and luminous alarm (blue and red lights)
  • Alarm arming/disarming
  • Built-in microphone and speaker
  • MicroSD card slot up to 256 GB (card not included)
  • Reset button
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Up to 20 users
  • Compatible with IE8 and later, Chrome and Firefox browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC (±30%) / PoE (802.3af)
  • Power consumption: 2.5 W (basic), 6.2 W (maximum)
  • Storage temperature: -40°C ~ +60°C (-40°C ~ +60°C)
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Metal housing
  • Black color
  • Dimensions: Ø122 x 110 mm
  • Net weight: 670 g
REFERENCE / MODEL IPC-T38L-ZAS-PV-B / IPC-T38L-ZAS-PV-B
Resolution 8MP
Series TiOC || Vesta Advanced Video
Audio Microphone || Speaker
IR Distance 21-40m
Ingress protection IP67
Lens Motorized 2,7~13,5 mm
Special Protection No
Sensor 1/2.7" CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot Yes
Colour Black
Certificate NDAA
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions Perimeter protection || SMD
Compatibility Onvif
