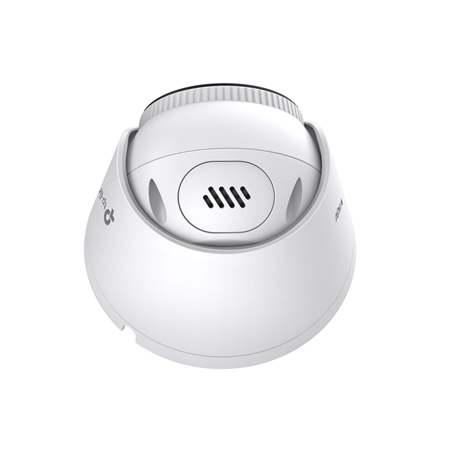

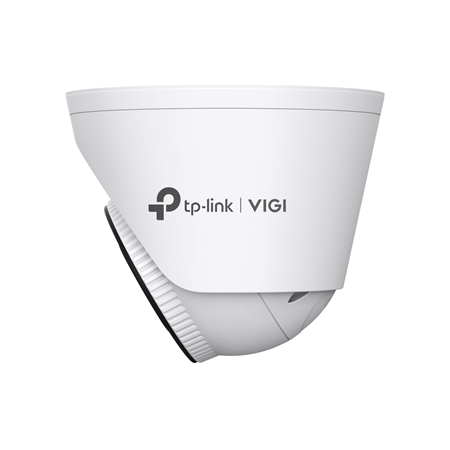

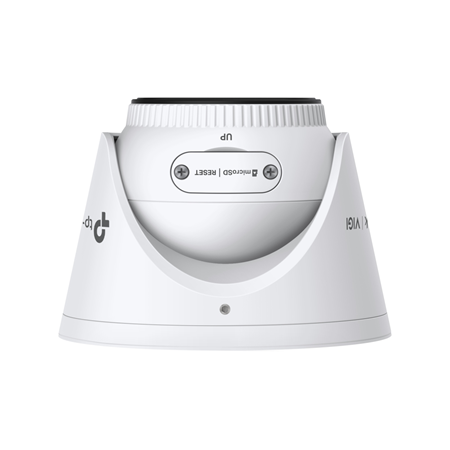

8MP IP dome with active deterrence and advanced analytics

TPLINK-153

InSight S485(2.8mm)

Main features

  • Dome IP TP-Link VIGI 8MP@30ips
  • Fixed lens 2.8 mm
  • 0.005 lux
  • WDR 120 dB, BLC, HLC, 3D DNR
  • Active deterrence with white light and audible warning
  • Detection of people and vehicles
  • Perimeter protection
  • Built-in microphone and speaker
  • MicroSD slot
  • IP67 protection
  • PoE

Specifications

  • 1/2.7" progressive CMOS sensor with 3840 × 2160 maximum resolution
  • Fixed lens 2.8 mm with F1.6 aperture and M12 mount
  • Angle of view: 111.4° (H), 58.8° (V), 134° (D)
  • Supported resolutions: 8MP (3840 × 2160), 4MP (2560 × 1440), 3MP (2304 × 1296), 2048 × 1280, 1080P (1920 × 1080), 720P (1280 × 720), WVGA (848 × 480), D1 (704 × 576), VGA (640 × 480), nHD (640 × 360), CIF (352 × 288), QVGA (320 × 240)
  • Stream 1: 8MP, 4MP, 3MP, 2048 × 1280, 1080P, 720P (1~25/30 ips)
  • Stream 2: WVGA, D1, VGA, nHD, CIF, QVGA (1~25/30 fps)
  • Video compression: H.265+, H.265, H.264+, H.264
  • Day/night mode with removable mechanical filter
  • 0.005 lux (color), 0 lux with IR or white light
  • 4 IR LEDs and 4 white light LEDs with range up to 30 m (100 ft)
  • Image functions: 120 dB WDR, BLC, HLC, 3D DNR, ROI, privacy mask (up to 4 zones)
  • Intelligent functions:
    • Line crossing detection
    • Intrusion detection
    • Abandoned object detection
    • Object removal detection
    • Region entry detection
    • Region exit detection
    • Scene change detection
    • Loitering detection
    • Anomalous sound detection
    • Person and vehicle classification
  • Active deterrence with flashing white light and audible warning
  • Built-in microphone and speaker for two-way audio
  • MicroSD card storage up to 512 GB (card not included)
  • ONVIF compatible (Profile S, T, G)
  • Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
  • Supported software: VIGI App, VIGI VMS, Web UI, Cloud VMS
  • RJ-45 10/100 Mbps network interface with PoE support (802.3af/at)
  • Reset button included
  • Power supply: 12 VDC ±5% or PoE; maximum power consumption 12.5W
  • Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
  • Storage temperature: -40°C to +60°C (-40°F to +60°F)
  • Relative humidity: ≤95% non-condensing
  • Metal housing
  • IP67 protection
  • Dimensions: Ø111 × 83.7 mm
  • Net weight: 0.48 kg
  • 3AXIS: 0°~360° (PAN), 0°~75° (TILT), 0°~360° (Rotation)
  • Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, IC, ONVIF.
REFERENCE / MODEL TPLINK-153 / InSight S485(2.8mm)
Resolution 8MP
Audio Microphone || Speaker || Two-way
IR Distance 21-40m
Ingress protection IP67
Lens 2,8 mm
Special Protection No
Sensor 1/2.7" CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE || PoE+
SD Slot Yes
Colour White
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP
Intelligent functions Abandoned objects || Perimeter protection
Compatibility Onvif
Sub-brand VIGI by TP-Link
