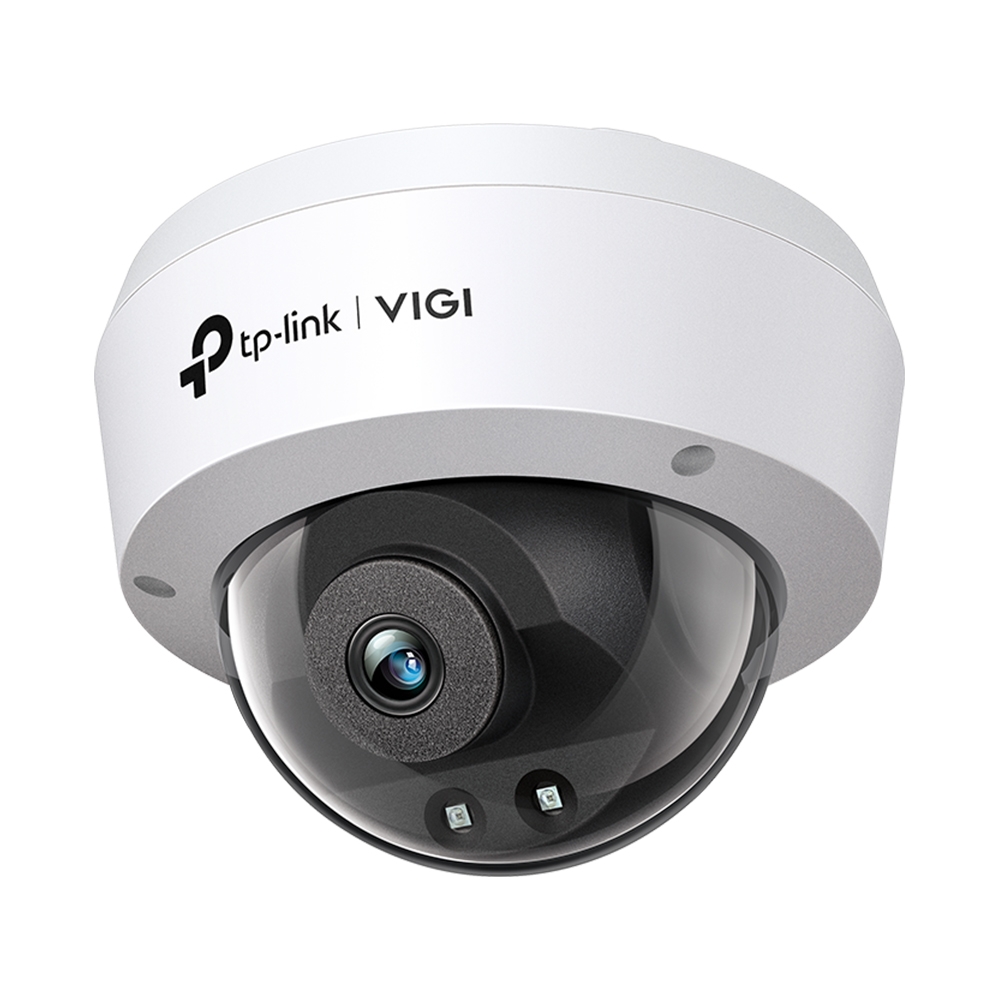

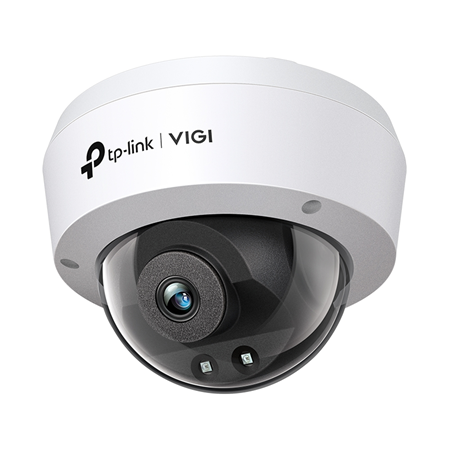

TP-Link VIGI 3MP IP Dome for outdoor use

Technical Features

• TP-Link VIGI IP Dome
• 1/2.8" progressive scan CMOS sensor
• Maximum resolution of 3MP (2304 × 1296)
• IR Cut (ICR) filter for day and night operation
• Min. illumination: 0.01 lux (color) and 0 lux with IR
• Infrared illumination (2 IR LEDs) with range up to 30 m (100 ft)
• Fixed lens 4 mm
• Angle of view: H 74.6°, V 41.3°, D 88.1°.

Video Stream

• Stream 1: 3MP@25 fps
• Stream 1 Resolutions: 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
• Stream 2: VGA@25 fps
• Stream 2 Resolutions: 704 × 576, 640 × 480, 352 × 288, 320 × 240
• CBR and VBR bitrate control
• Stream 1 Compression: H.265+/H.265/H.264+/H.264
• Compression Stream 2: H.265/H.264
• Image rotation 90° or 270° (maximum 20 fps)

Features

• DWDR (digital WDR)
• BLC, HLC and 3D DNR
• Smart IR
• Up to 4 privacy masks
• 1 ROI region

Intelligent functions

• On-camera classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entry and exit
• Abandoned object detection
• Object removal detection
• Anomalous sound detection
• Camera tampering detection

Audio

• Built-in microphone
• G.711 alaw compression
• 8 kHz sampling rate
• Ambient noise filtering

Network

• 10/100 Mbps RJ45 interface with PoE support
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, RTSP, IPv4, IPv6, ARP
• ONVIF Profile S support
• Simultaneous display of up to 3 main streams and 3 substreams
• Compatible software: VIGI App, VIGI Security Manager and web browsers

Power supply

• Power supply 12 V DC (5 W max.)
• PoE (IEEE 802.3af/at), class 0 (5.5 W max.)

Environmental

• Operating temperature -30 °C to 60 °C (-22 °F to 140 °F)
• Operating humidity ≤95 % noncondensing
• Protection IP67
• IK10 vandal resistant

Physical characteristics

• Material: plastic
• Wall or ceiling installation
• 2AXIS: Pan 0°~355°, Tilt 0°~75°
• Dimensions: 115 × 115 × 86 mm
• Net weight: 0.27 kg
• Gross weight: 0.45 kg

Contents

• 3MP IP dome with 4 mm Fixed lens TPLINK-285 (VIGI C230I)
• Waterproof cabling accessories
• Mounting accessories
• Quick start guide

Certifications

• CE
• NTRA
• VCCI
• BSMI
