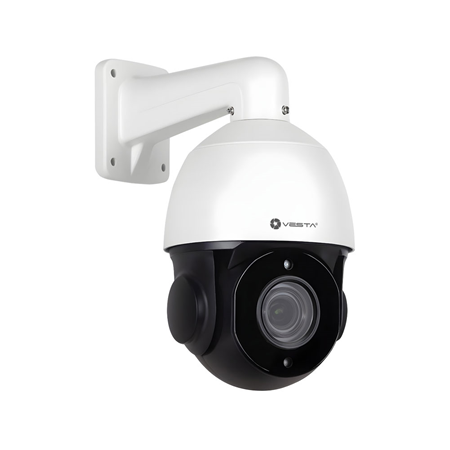

VESTA Advanced Video Starlight 5MP IP PTZ dome with 20x optical zoom

Technical Features

• VESTA Advanced Video PTZ IP dome
• 1/2.8" progressive scan CMOS sensor
• Maximum resolution of 5MP
• Starlight technology
• Minimum illumination of 0.001 lux color at F1.5 with AGC on
• 0.0005 lux minimum illumination in black and white at F1.5 with AGC on
• Auto Day/Night (ICR), color and B/W mode
• 16x digital zoom
• Motorized lens 4.8~98 mm
• 20x optical zoom
• Auto F1.6-F3.9 aperture
• 60°~3.59° horizontal field of view
• Working distance from 30mm to 1000mm
• Infrared illumination up to 100m

Video

• H.265, H.264 and MJPEG video compression
• H.265 Main Profile
• H.264 Base Line Profile, Main Profile and High Profile
• Video bitrate from 32 Kbps to 16 Mbps
• Stream 1: 5MP@25 fps
• Stream 1 Resolutions: 2960x1664, 2560x1440, 1920x1080, 1280x960 and 1280x720
• Stream 2: D1@25 ips
• Stream 3: D1@25 fps
• Stream 2 and Stream 3 resolution: 704x576

Positioner

• Continuous 360° horizontal rotation
• 0.1°~100°/s horizontal speed
• 0°~93° vertical rotation
• 0.1°~50°/s vertical speed
• 255 presets
• 6 rounds with up to 18 presets per round
• 4 patterns with total recording time no less than 10 min
• Recovery after power loss
• IR intensity automatically adjusted according to zoom ratio

Features

• Runner mode
• Adjustment of saturation, brightness, contrast, sharpness from client or browser
• Backlight compensation
• Auto exposure mode, aperture priority, shutter priority, and manual exposure mode
• Autofocus, single focus and manual focus
• Area exposure and focus
• Defog
• EIS
• 3D noise reduction
• 24-bit BMP image overlay with optional region
• 1 fixed ROI region for each stream
• AI-ISP
• Dark Killer Image Quality

Intelligent functions

• SMD
• Perimeter protection
• Auto tracking
• People counting
• Face detection
• Fire detection
• People and vehicle metadata

Audio

• Integrated microphone
• Built-in speaker
• G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2 and PCM audio compression
• 64 Kbps audio bitrate in G.711
• 16 Kbps audio bitrate in G.722.1
• 16 Kbps audio bitrate in G.726
• 32~192 Kbps audio bitrate in MP2L2
• 16~64 Kbps audio bitrate in AAC

Storage

• Micro SD/SDHC/SDXC card slot up to 256 GB (card not included)
• NAS storage via NFS and SMB/CIFS

Network

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP and IPv6 protocols
• ONVIF Profile S and Profile G
• Private protocol
• API
• SDK

Power supply

• 12V DC 3A power supply
• PoE+

Environmental

• Operating temperature from -40 °C to 60 °C (-40 °F to 140 °F)
• Humidity up to 90%
• IP66 protection
• Surge protection
• TVS 6000V lightning protection

Physical characteristics

• Wall or ceiling installation
• Dimensions (without brackets): Ø136 x 204.5 mm
• Weight: 2.5 kg

Contents

• VESTA Advanced Video IP PTZ Dome SD5Z20 (SD5Z20)
• Wall mount bracket
• Ceiling mount
