TPLINK-148

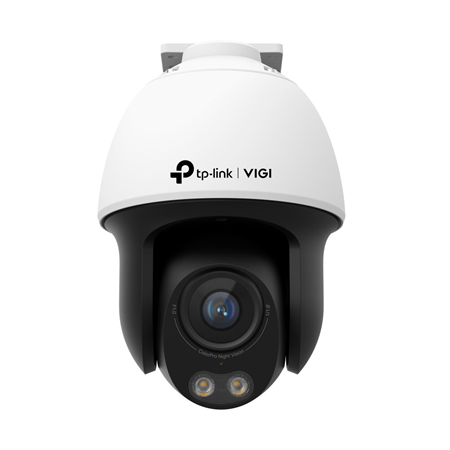

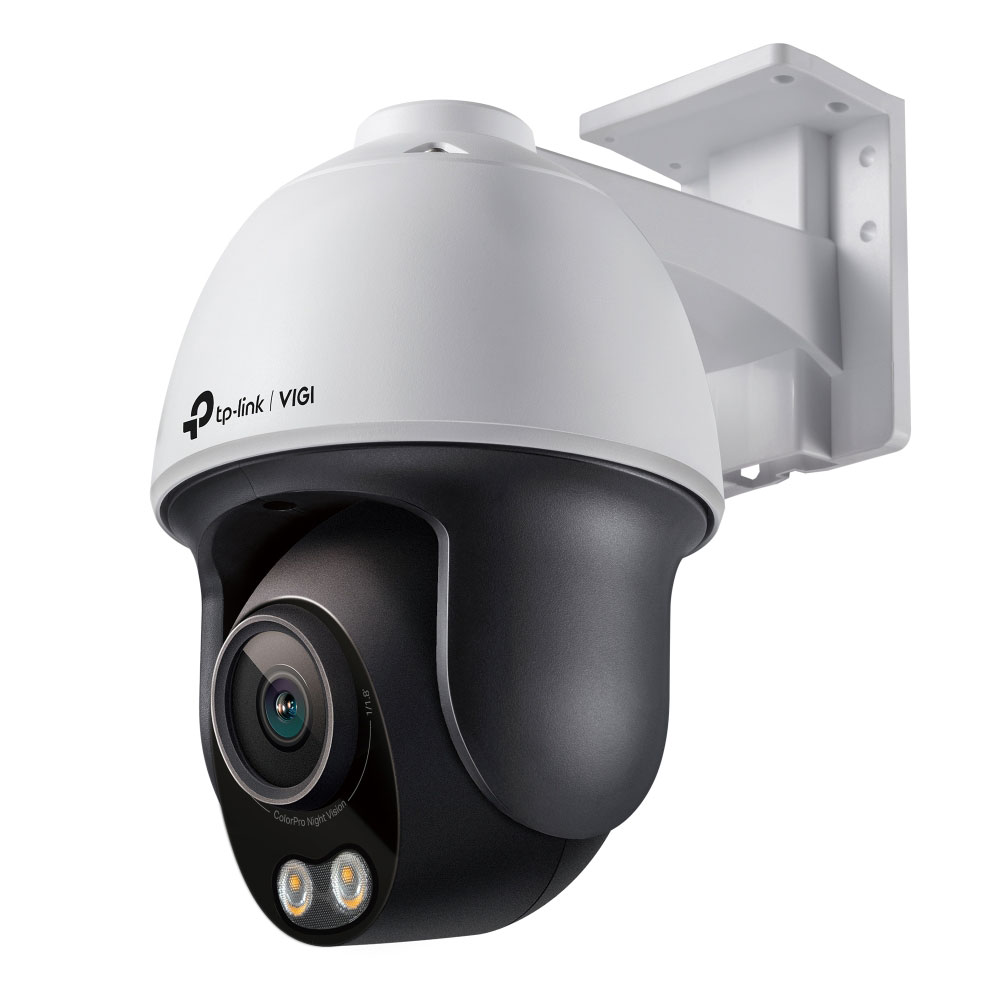

4MP IP PTZ dome with white light, audio and advanced analytics
TPLINK-148
VIGI C540S(4mm)








Main features
Specifications
- 1/1.79" progressive CMOS sensor with 2688 × 1520 maximum resolution
- Fixed lens 4 mm with F1.0 aperture
- Angle of view: 104° (H), 55° (V), 127° (D)
- Supported resolutions: 4MP (2688 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 2048 × 1280, 1080p (1920 × 1080), 720p (1280 × 720), 704 × 576, 640 × 480, 352 × 288, 320 × 240
- Stream 1: up to 30 fps at 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720 - Stream 2: up to 30 fps at 704x576, 640x480, 352x288, 320x240.
- Video compression: H.265+, H.265, H.264+, H.264
- 0.0005 lux (color), 0 lux with white light
- Illumination by 2 white LEDs, range up to 30 m (100 ft)
- Image functions: WDR 120 dB, BLC, HLC, 3D DNR, ROI, rotation, privacy mask (up to 4 zones)
- Pan: 0° to 348°, Tilt: 0° to 105°, Tilt: 0° to 105°.
- Configurable Pan and Tilt speed: 8°-44°/s; presets at 44°/s
- 300 configurable presets
- Rounds: up to 8 rounds with 8 presets per round
- Intelligent functions: motion detection, line crossing, intrusion, region entry/exit, abandoned or removed object detection, sound detection, scene change, loitering, person and vehicle detection, facial recognition
- Built-in microphone and speaker for two-way audio
- MicroSD card storage up to 512 GB (card not included)
- ONVIF compatible (Profile S)
- Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
- Supported software: VIGI App, VIGI Security Manager, Web UI
- Network interface RJ-45 10/100 Mbps with PoE (802.3at, class 4)
- Power: 12 VDC ±5 %, max. 13.13 W; PoE max. 16.47 W
- Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
- Storage temperature: -40 °C to +60 °C (-40 °F to +60 °C)
- Relative humidity: ≤95% non-condensing
- Plastic housing
- IP66 protection
- Dimensions: 120 × 172 × 203 mm
- Net weight: 0.59 kg
- Gross weight: 0.94 kg
- Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
REFERENCE / MODEL | TPLINK-148 / VIGI C540S(4mm) |
---|---|
Resolution | 4MP |
Audio | Microphone || Speaker || Two-way |
IR Distance | 21-40m |
Ingress protection | IP66 |
Lens | 4 mm |
Special Protection | No |
Sensor | 1/1.8 CMOS |
StarLight | StarLight |
WDR (Backlight) | WDR (120dB) |
Codec | H.264 || H.264+ || H.265 || H.265+ |
PoE | PoE |
SD Slot | Yes |
Colour | White |
Installation environment | Outdoor |
Material | Plastic |
Alarm channels | No |
Connectivity | IP |
Intelligent functions | Abandoned objects || Face recognition || Perimeter protection |
Compatibility | Onvif |
Sub-brand | VIGI by TP-Link |
