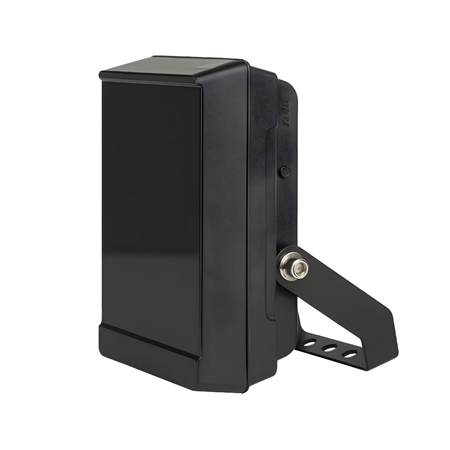

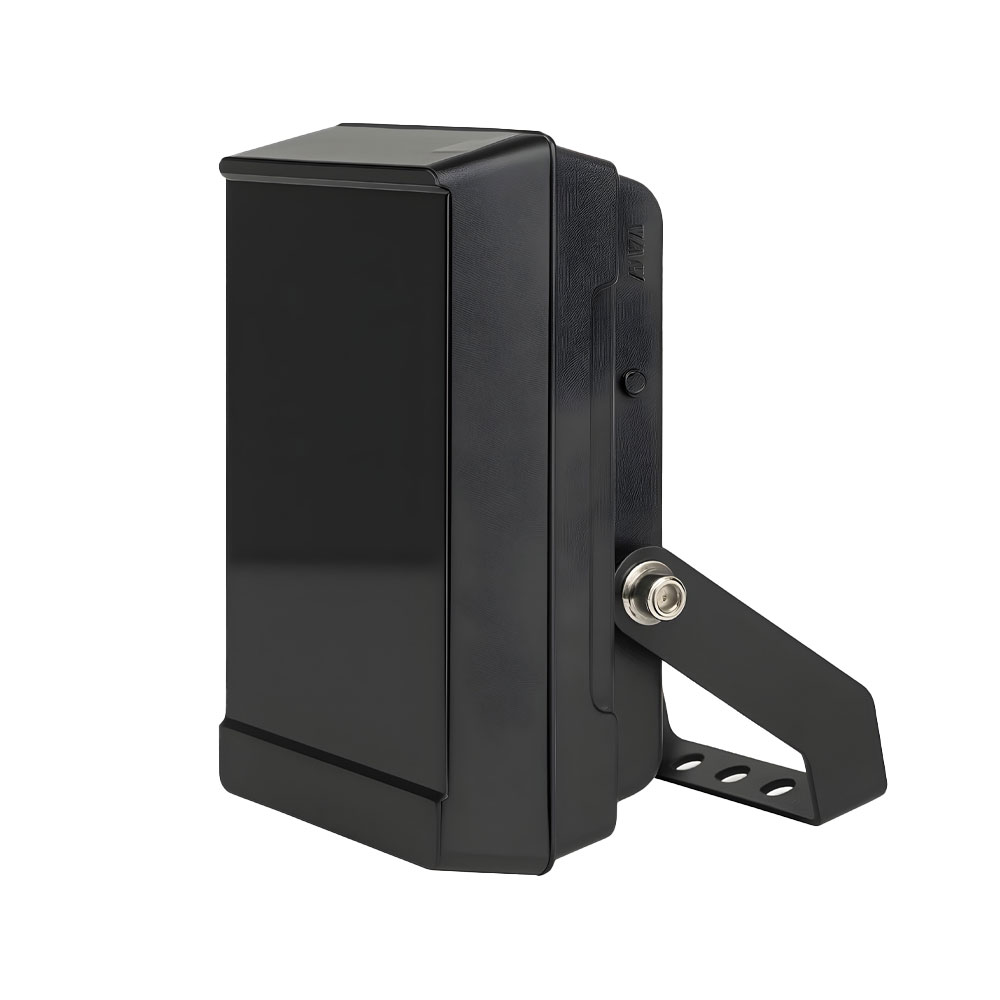

VESTA vandal-resistant infrared LED illuminator with 30° beam and 100 m range

VESTA-504

VESTA-504

Main features

VESTA infrared LED illuminator for CCTV and IP cameras
Wavelength of 850 nm
30° beam with IR range of 100 meters
DC12V power supply
Adjustable 1500 mA current
Automatic day/night switching
Manual adjustment of power and sensitivity
IP66 and IK10 protection
Lyre support

Specifications

Technical features

VESTA infrared LED illuminator for CCTV and IP cameras
12 high power IR LEDs
Wavelength 850 nm
30° beam angle
100 m IR range
Lyre holder

Functionalities

Manual power adjustment
Manual light sensor sensitivity adjustment
Automatic day/night switching
Designed to improve night image capture on CCTV and IP cameras

Power supply

DC12V power supply
Adjustable 1500 mA current

Environmental

Working temperature from -30 °C to 50 °C
IP66 protection
Vandal resistance IK10

Physical characteristics

Die-cast aluminum housing
Vandal resistant PC front panel
Black finish
Dimensions: 151 x 96 x 60 mm
Net weight: 0.82 kg
Gross weight: 1 kg
Packing dimensions: 185 x 155 x 110 mm

Contents

Infrared LED Illuminator VESTA-504 (VESTA-504)

Certifications and standards

CE and FCC markings
Mechanical protection degree IK10

REFERENCE / MODEL	VESTA-504 / VESTA-504
IR Distance	81-100m
Ingress protection	IP66
Special Protection	Vandal-proof (IK10)
Colour	Black
Voltage	12 V
Current	DC
Switched mode	Yes
Lighting	IR
Installation	Wall

Documentation

	Language	Name	Type	Action
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	EN		Manual
	ES		Manual
	FR		Manual
	IT		Manual
	DE		Self-generated File
