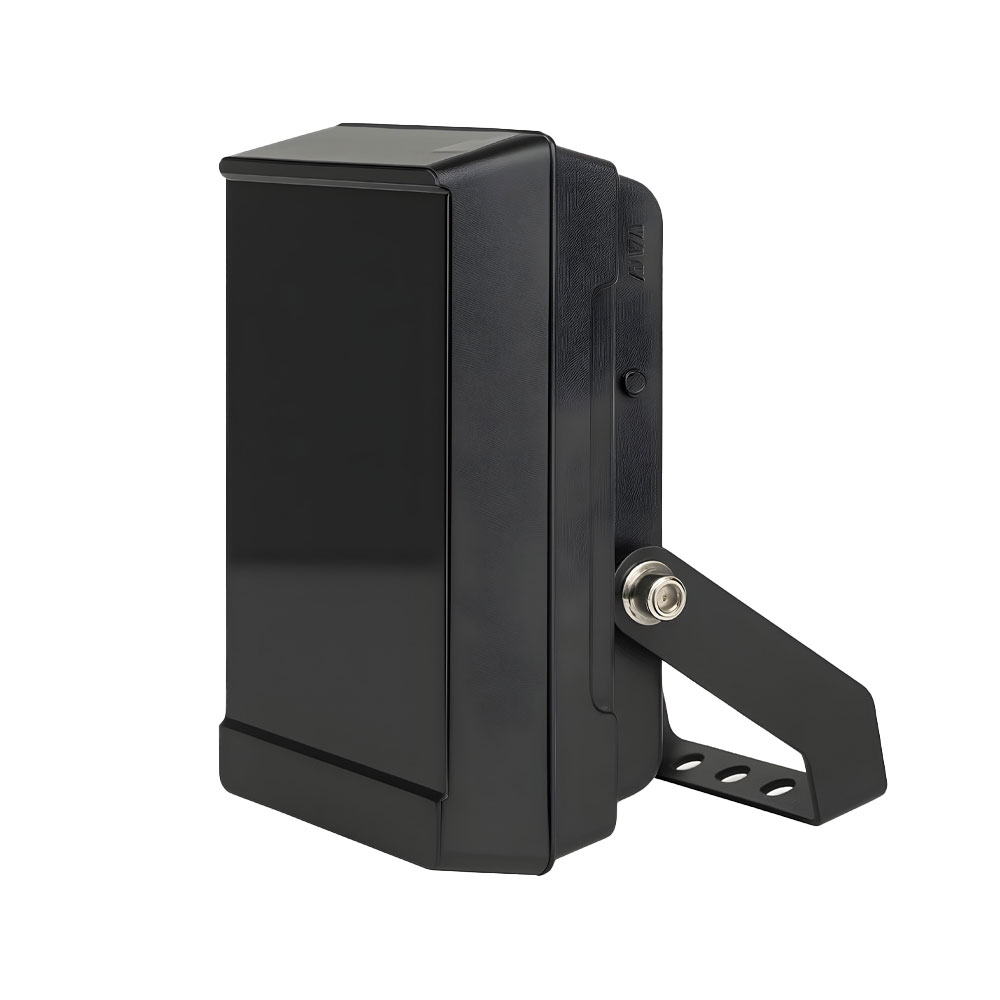

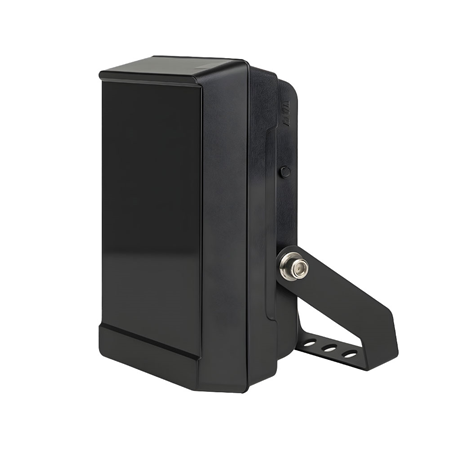

VESTA vandal-resistant infrared LED illuminator with 60° beam and 50 m range

VESTA-505

VESTA-505

Main features

VESTA infrared LED illuminator for CCTV and IP cameras
Wavelength of 850 nm
60° beam with IR range of 50 meters
DC12V power supply
Adjustable 1500 mA current
Automatic day/night switching
Manual adjustment of power and sensitivity
IP66 and IK10 protection
Lyre support

Specifications

Technical features

VESTA infrared LED illuminator for CCTV and IP cameras
12 high power IR LEDs
Wavelength 850 nm
60° beam angle
50 m IR range
Lyre holder

Functionalities

Manual power adjustment
Manual light sensor sensitivity adjustment
Automatic day/night switching
Designed to improve night image capture on CCTV and IP cameras

Power supply

DC12V power supply
Adjustable 1500 mA current

Environmental

Working temperature from -30 °C to 50 °C
IP66 protection
IK10 vandal resistant

Physical characteristics

Die-cast aluminum housing
Vandal resistant PC front panel
Black finish
Dimensions: 151 x 96 x 60 mm
Net weight: 0.82 kg
Gross weight: 1 kg
Packing dimensions: 185 x 155 x 110 mm

Contents

Infrared LED Illuminator VESTA-505 (VESTA-505)

Certifications and standards

Degree of mechanical protection IK10

REFERENCE / MODEL	VESTA-505 / VESTA-505
IR Distance	41-80m
Ingress protection	IP66
Special Protection	Vandal-proof (IK10)
Colour	Black
Outreach	50m
Voltage	12 V
Current	DC
Switched mode	Yes
Lighting	IR
Installation	Wall

Documentation

	Language	Name	Type	Action
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	EN		Manual
	ES		Manual
	FR		Manual
	IT		Manual
	DE		Self-generated File

Comments

There are no comments for the product VESTA-505.
