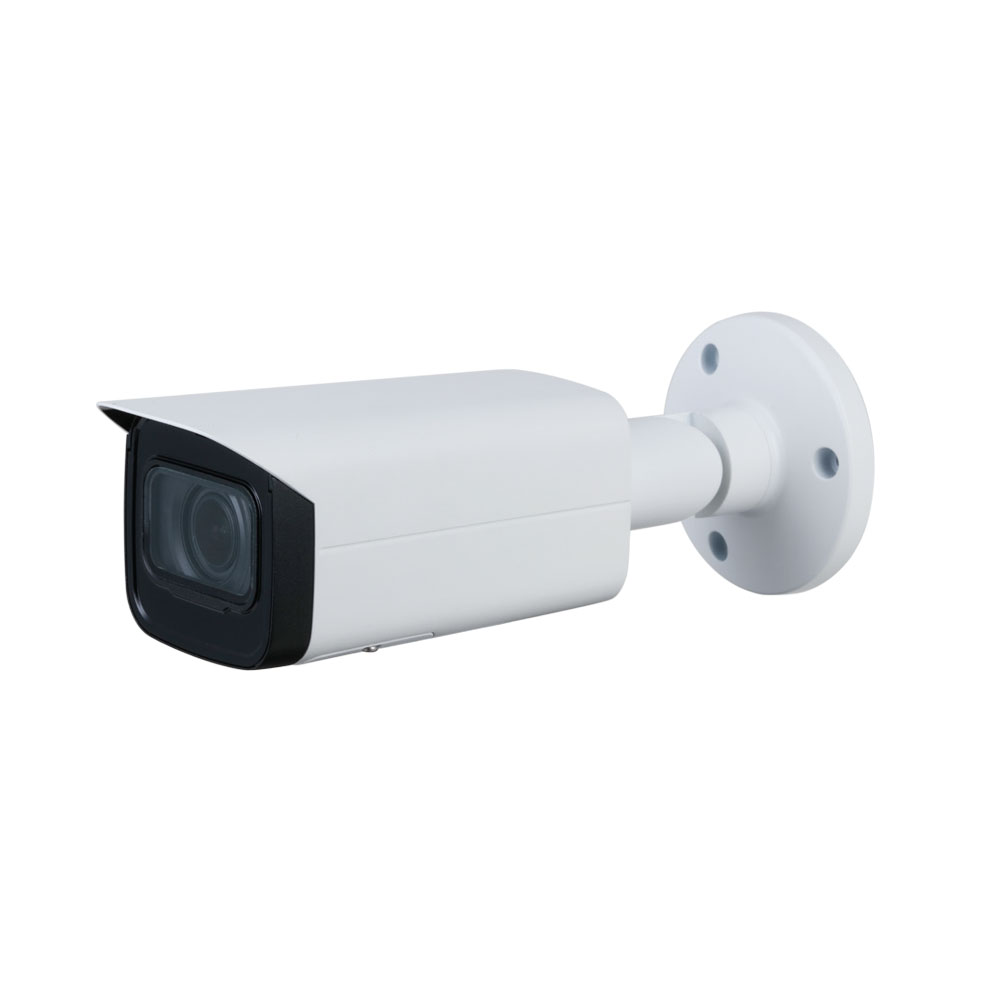

4MP outdoor IP camera with Motorized lens

Name: SAM-4992
SKU: SAM-4992
Price: 211.269 EUR
Availability: InStock
Rating: 5 (93 reviews)

SAM-4992

Main features

IP Camera 4MP@25ips
Varifocal lens motorized 2.8-12 mm
0.03 lux
Smart IR up to 50 m
WDR 120 dB, BLC, HLC, 3D NR
Motion detection
MicroSD slot (card not included)
IP67 protection
PoE

Specifications

1/3" Progressive CMOS sensor with 4MP effective
Varifocal lens motorized 2.8-12 mm with F1.7 aperture
Angle of view: 98°-31° (H), 55°-18° (V), 116°-36° (D)
Maximum resolution 4MP (2688 × 1520)
Supported resolutions: 4MP (2688 × 1520), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
Stream 1: 2688 × 1520 up to 20 fps; 2560 × 1440 up to 25/30 fps
Stream 2: 704 × 576 / 704 × 480 up to 25/30 ips
Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (only in substream)
0.03 lux@F1.7 (color), 0.003 lux@F1.7 (B/W), 0 lux with IR
IR range up to 50 m (164 ft) with Smart IR
Imaging functions: WDR 120 dB, BLC, HLC, 3D NR, ROI, image rotation, privacy masking (4 zones)
Motion detection and video tampering
Storage on MicroSD card up to 256 GB (card not included), FTP, SFTP, NAS
ONVIF (Profile S, G, T), CGI, Milestone, Genetec, P2P support
Network protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, DHCP, DNS, DDNS, NTP, SMTP, UPnP, ICMP, IGMP, QoS, Bonjour, PPPoE
Management software
RJ-45 10/100 Mbps network interface
Power supply 12 VDC or PoE (802.3af)
Maximum power consumption: < 7.4 W
Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature: -40°C to +60°C (-40°F to +60°F)
Relative humidity: ≤95%.
Metal housing
IP67 protection
Dimensions: 244.1 × Φ90.4 mm
Net weight: 0.85 kg
Gross weight: 1.10 kg
Certifications: CE-EMC 2014/30/EU, CE-LVD EN62368-1, FCC Part 15

REFERENCE / MODEL	SAM-4992 / SAM-4992
Resolution	4MP
Audio	No
IR Distance	41-80m
Ingress protection	IP67
Lens	Motorized 2,8~12 mm
Special Protection	No
Sensor	1/3" CMOS
StarLight	No
WDR (Backlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	No
Connectivity	IP \|\| YES (P2P)
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
