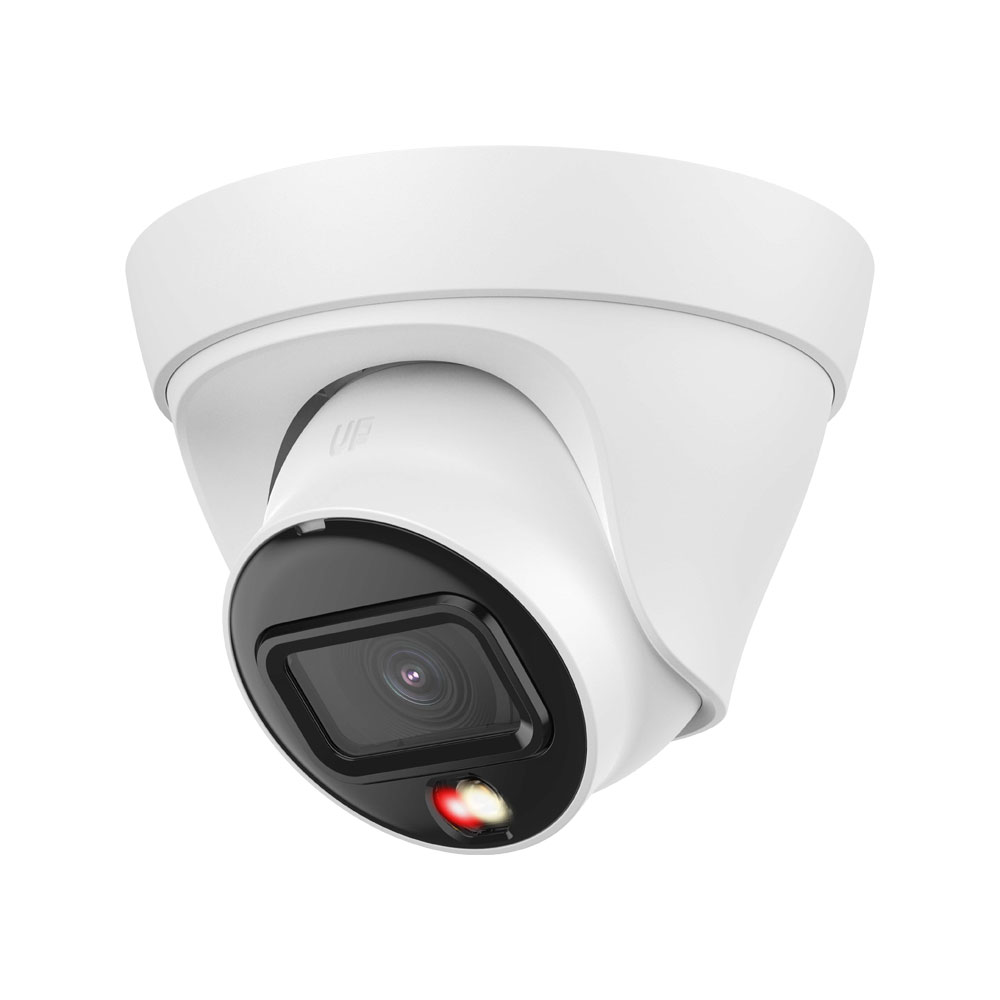

SAM-5013 | 4MP outdoor IP dome with Smart Dual Light
SAM-5013SAM-50134MP outdoor IP dome with Smart Dual Light

4MP outdoor IP dome with Smart Dual Light

SAM-5013

SAM-5013

Main features

  • Dahua IP Camera 4MP@25ips
  • Fixed lens 2.8 mm
  • 0.06 lux
  • Smart Dual Light with IR and white light up to 30 m
  • WDR 120 dB, BLC, HLC, 3D NR
  • People detection
  • Built-in microphone
  • Storage via FTP
  • IP67 protection
  • PoE

Specifications

  • 1/2.9" Progressive CMOS sensor with 4MP effective
  • Fixed lens 2.8mm with F1.6 aperture
  • Viewing angle: 94° (H), 51° (V), 110° (D)
  • Maximum resolution 4MP (2560 × 1440)
  • Supported resolutions: 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
  • Stream 1: 2560 × 1440 up to 25/30 ips
  • Stream 2: 704 × 576 / 704 × 480 up to 25/30 ips
  • Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (substream only)
  • 0.06 lux@F1.6 (color), 0.006 lux@F1.6 (B/W), 0 lux with IR or white light
  • Smart Dual Light with IR and white light up to 30 m
  • Imaging functions: WDR 120 dB, BLC, HLC, 3D NR, ROI, image rotation, privacy masking (4 zones)
  • Built-in microphone
  • AI-based person detection
  • Alarms for motion, tampering, audio detection, network loss, illegal access, IP conflict
  • Remote storage via FTP
  • ONVIF (Profile S, Profile T), CGI compatible
  • Network protocols: IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, DHCP, DNS, DDNS, NTP, SMTP, ICMP, IGMP, P2P
  • Supported software: Smart PSS Lite, DSS, DMSS, DoLynk Care
  • RJ-45 10/100 Mbps network interface
  • Power supply 12 VDC or PoE (802.3af)
  • Basic power consumption: 1.6 W (12 VDC), 2.0 W (PoE); maximum: 3.7 W (12 VDC), 4.7 W (PoE)
  • Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
  • Storage temperature: -40 °C to +60 °C (-40 °C to +60 °C)
  • Relative humidity: ≤95% non-condensing
  • Plastic housing with metal inner core
  • IP67 protection
  • Dimensions: 85.5 mm × Φ109 mm
  • Net weight: 0.25 kg
  • Gross weight: 0.36 kg
  • Certifications: CE-LVD EN62368-1, CE EMC 2014/30/EU
REFERENCE / MODEL SAM-5013 / SAM-5013
Resolution 4MP
Audio Microphone
IR Distance 21-40m
Ingress protection IP67
Lens 2,8 mm
Special Protection No
Sensor 1/2.9" CMOS
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot No
Colour White
Installation environment Outdoor
Material Plastic
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions SMD
Compatibility Onvif
