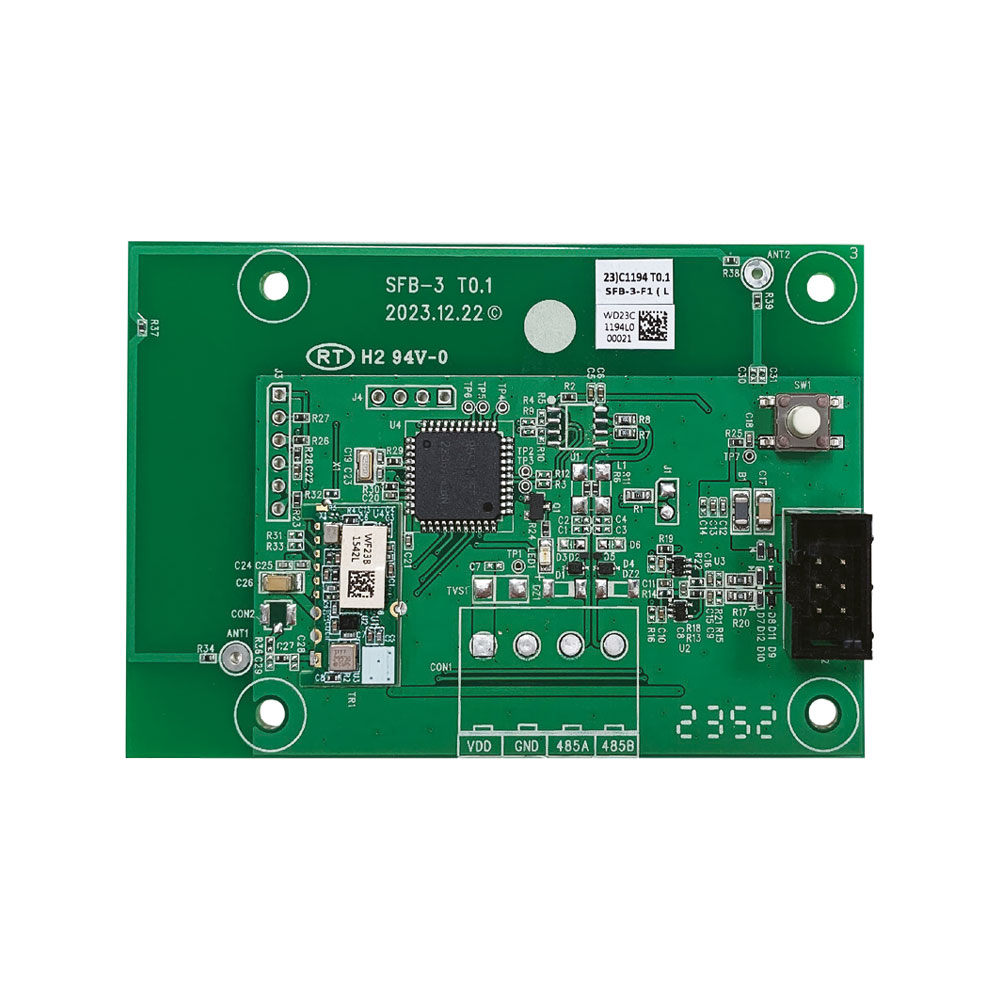

UR Fog system integration interface with F1 and V-MAX BUS from VESTA

Technical features

• Integration interface for UR FOG safety fog systems with VESTA control panels.
• Compatible with UR Fog Modular 200/300/400/500/800 systems.
• Transmission of alarm signals from the Gateway to the fog system.
• Management of fog triggering in case of intrusion events
• Supervision of fog system status and faults from the fog system. Gateway

Functionalities

• Direct integration between the intrusion Gateway and fog generator
• Immediate fog activation for active alarm deterrence
• Design for residential and commercial installations

Communication interface

• F1 protocol support
• V-MAX BUS compatibility

Power supply

• Power supply from UR FOG fog system

Environmental

• Operating temperature -10 °C to 45 °C (-4 °F to 113 °F)
• Relative humidity up to 85 % non-condensing

Physical characteristics

• Internal installation in UR FOG fog system
• Compact design for direct integration

Contents

• Integration interface for UR FOG VESTA-474 fog systems (SFB-3-COMBO - SV1-T35)
