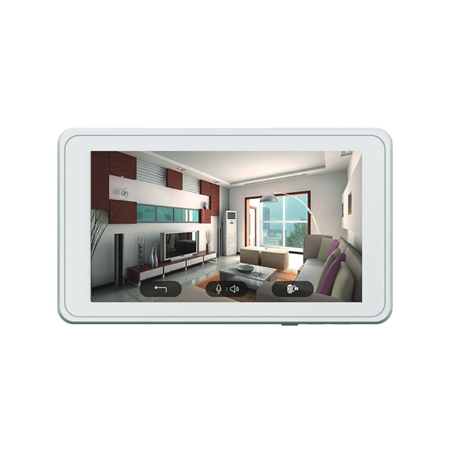

VESTA-354 | V-MAX BUS and WIFI touchscreen 7" VESTA keyboard.
VESTA-354TSP-BUSV-MAX BUS and WIFI touchscreen 7" VESTA keyboard.
VESTA-354_5
VESTA-354_2
VESTA-354_8
VESTA-354_3
VESTA-354_4
VESTA-354_6
VESTA-354_7

V-MAX BUS and WIFI touchscreen 7" VESTA keyboard.

VESTA-354

TSP-BUS

Hoofd functies

  • V-MAX BUS and WIFI touch VESTA keyboard
  • 7" LCD monitor
  • Intuitive and easy to use interface
  • Speech-listening
  • V-MAX BUS
  • WiFi 802.11b/g/n, 2.4GHz
  • Automation and video verification capabilities
  • EN50131 Grade 3 certified

Specificaties

  • Hybrid panel connectivity via V-MAX BUS for efficient safety management
  • Intuitive 7" touch screen for ease of interaction
  • Intuitive graphical user interface provides a complete overview of the security system and panel status via direct BUS connection
  • Suitable for residential and commercial premises
  • Panel status control and event review
  • Automation control
  • Video verification of IP cameras and videophones
  • OTA firmware upgrade capability
  • Optional automation, video verification and two-way communication capabilities with videophones when connected via WiFi
  • 802.11 b/g/n, 2.4GHz Wi-Fi
  • V-MAX BUS communication
  • Color-coded BUS connector with removable design for easy and tidy installation
  • Built-in microphone and speaker
  • Power: From BUS connection to Gateway (BUS 13.5V)
  • Consumption: 10 mA (standby), 411 mA (maximum)
  • Operating temperature from -10°C ~ +45°C
  • Relative humidity up to 85% (non-condensing)
  • Dimensions: 195 (W) x 114 (H) x 17 mm
  • Wall mounting bracket included
  • EN50131 Grade 3 certified
REFERENTIE / MODEL VESTA-354 / TSP-BUS
Voeding 12V DC || BUS
Audio Two-way
Systeem BUS || Wireless
Protocol V-MAX BUS
Kleur Wit
Certificaat Grade 3
Installatieomgeving Binnen
Type toetsenbord Tactiel
Connectiviteit WiFi
Display Touch
On Board Siren Geen
OTA Upgrade Ja
Remote configuration Ja
Entry/exit delay beeps Ja
Onboard AI Geen
Removable Terminals Ja
Multi area / partition control Ja
Multi sound Ja
Voice Messages Ja
LED confirm Geen
