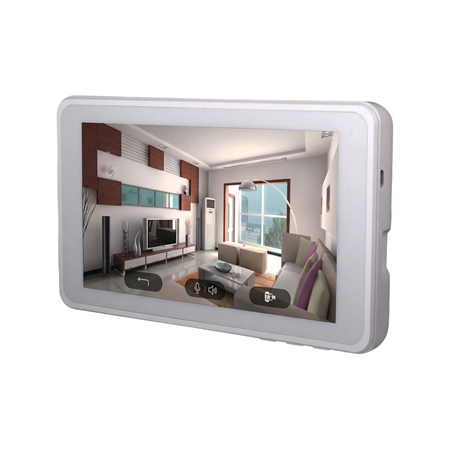

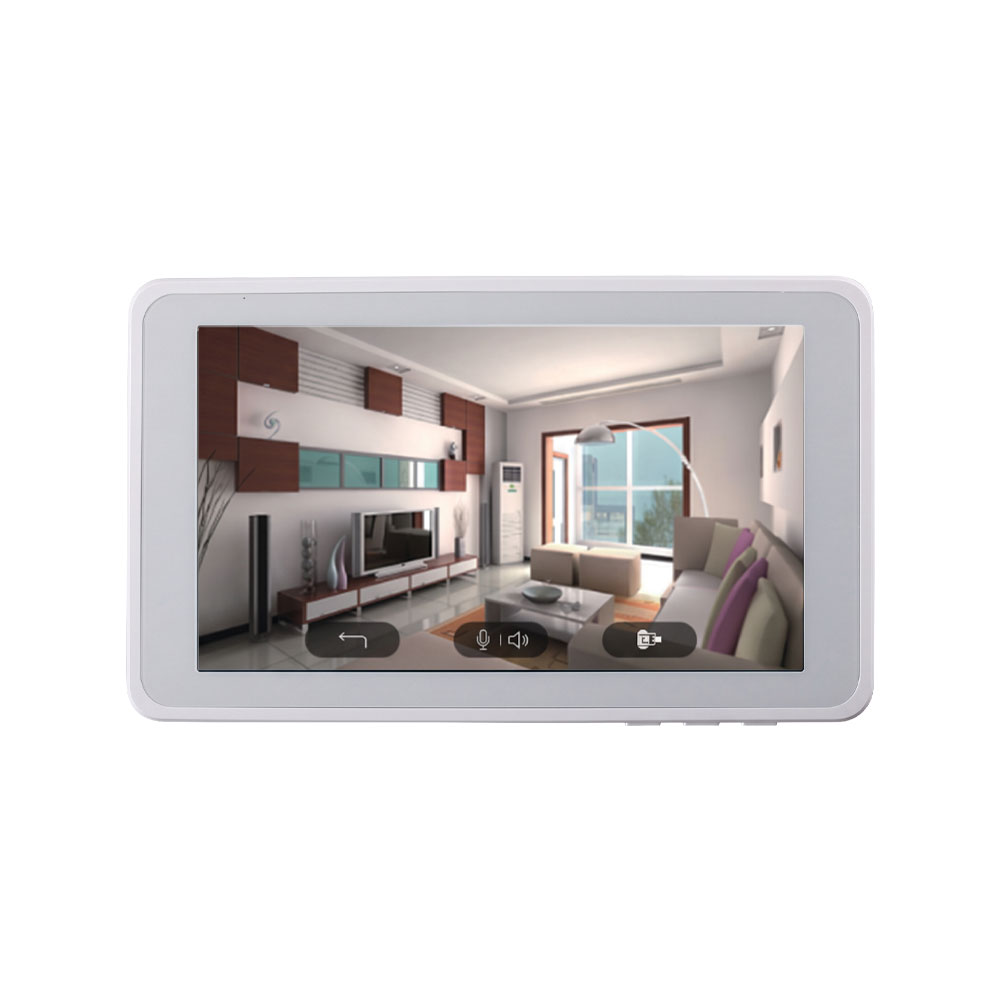

VESTA V-MAX BUS 7-inch touchscreen keypad with WiFi and improved housing

Technical Specifications

• VESTA V-MAX BUS Touchscreen Keypad for Hybrid Control Panels
• 7" LCD touchscreen

Functionalities

• Intuitive graphical interface for viewing the security system status
• Check the panel status and review events via BUS connection
• Automation control
• Video verification from IP cameras and video door phones
• Optional automation features, video monitoring, and two-way communication with video door phones via Wi-Fi
• OTA firmware updates

Audio

• Built-in microphone and speaker
• Two-way audio communication for talk-and-listen

Communication interface

• Communication via V-MAX BUS with hybrid control units
• Removable, color-coded BUS connector

Network

• IEEE 802.11b/g/n Wi-Fi connectivity in the 2.4 GHz band

Power

• Power supplied from the Gateway via the BUS connection
• Current consumption: 10 mA in standby and 411 mA maximum

Environmental

• Operating temperature range: -10°C to +45°C
• Relative humidity up to 85% non-condensing
• Indoor use

Physical Characteristics

• Enhanced housing for easier cable routing
• Wall mounting
• White
• Dimensions: 195 (W) x 114 (H) x 17 mm

Contents

• VESTA V-MAX BUS VESTA-354N Touch Keypad (TSP-BUS)

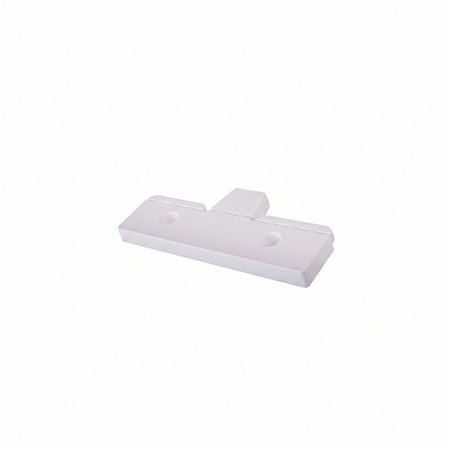

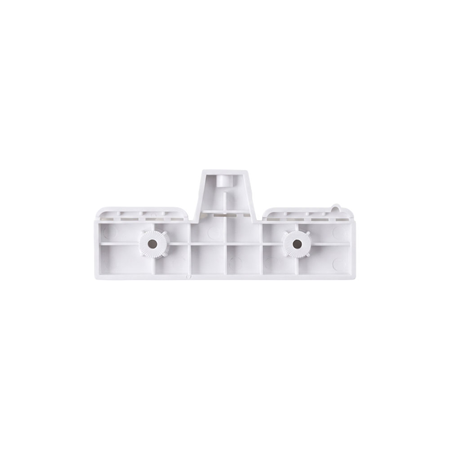

• Wall-mount bracket

Certifications and Standards

• EN50131 Grade 3 Certified
