TEXE-62 | Ceiling PIR detector Texecom Capture CQ
TEXE-62AKF-0006Ceiling PIR detector Texecom Capture CQ
TEXE-62
TEXE-62_B

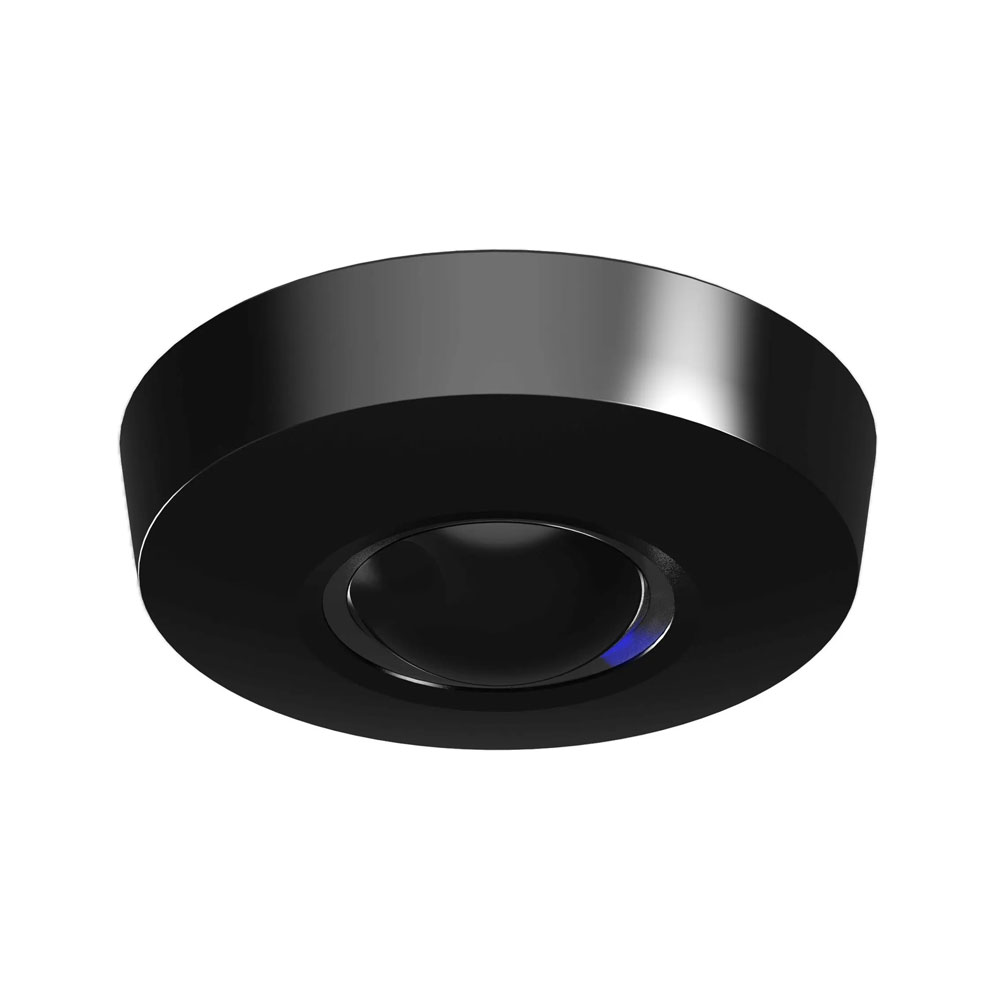

Ceiling PIR detector Texecom Capture CQ

TEXE-62

AKF-0006

Hoofd functies

  • Ceiling PIR detector Texecom Capture CQ
  • 360° coverage of 10 m diameter
  • High immunity to false alarms and accurate indoor detection
  • Power supply 9-15 V DC
  • EN50131-2-2 Grade 2, Class II compliant.

Specificaties

Technical features

  • Ceiling PIR detector Texecom Capture CQ Series
  • 360° coverage with diameter from 10 m to 2.4 m high
  • High-precision PIR technology with wide coverage angle
  • Complies with EN50131-2-2 Grade 2 and PD6662:2017 standards

Features

  • High false alarm immunity
  • Integrated test LED and remote control via RLED terminal
  • Choice of EOL or normally open wiring
  • Compatible with Texecom Premier Elite panels

Communication interface

  • Terminals: +12 V, 0 V, alarm, tamper, RLED
  • Tiltable or removable terminal block for easy wiring

Power supply

  • 9 to 15 V DC operating voltage (12 V ± 25 %)
  • Maximum consumption 12 mA @ 12 V DC
  • Standby current 9.3 mA @ 12 V DC

Environmental

  • Indoor use only
  • Environmental class II
  • Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
  • Relative humidity 0-95 % noncondensing

Physical characteristics

  • Black plastic material
  • Ceiling installation
  • Dimensions: 125 mm diameter × 43 mm deep
  • Net weight: 0.163 kg

Contents

  • Ceiling PIR detector TEXE-62 (AKF-0006)

Certifications

  • EN50131-2-2 Grade 2, Class II
  • PD6662:2017
  • Manufactured in UK
REFERENTIE / MODEL TEXE-62 / AKF-0006
Systeem Wired
Kleur Zwart
Type detector Plafond PIR || QUAD PIR
Certificaat Grade 2
Installatieomgeving Binnen
