TEXE-64 | Texecom Capture C15 curtain type PIR detector
TEXE-64AKX-0001Texecom Capture C15 curtain type PIR detector

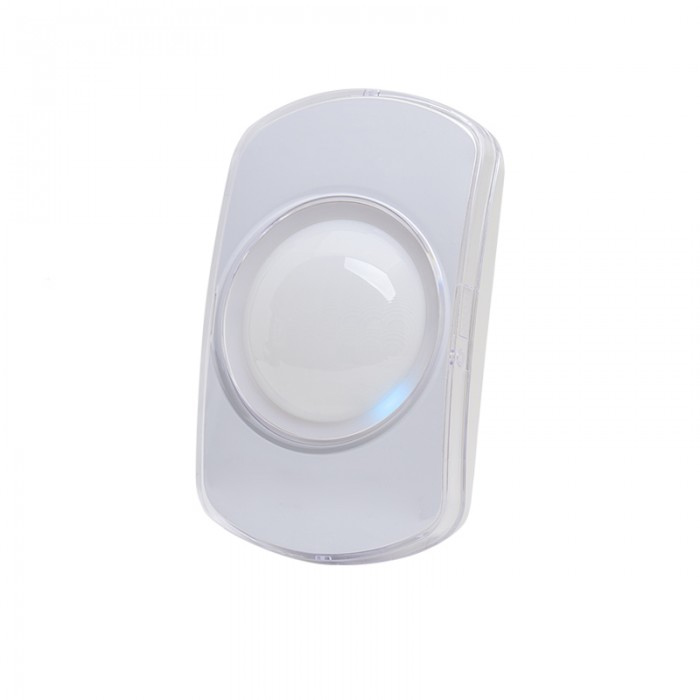

Texecom Capture C15 curtain type PIR detector

TEXE-64

AKX-0001

Hoofd functies

  • Texecom Capture C15 curtain type PIR detector
  • Linear coverage of 15 m
  • Accurate detection for corridors, doors or shop windows
  • High immunity to false alarms
  • Power supply 9-15 V DC
  • Complies with EN50131-2-2 Grade 2, Class II.

Specificaties

Technical features

  • Curtain type PIR detector Texecom Capture C15 Series
  • 15 m linear coverage for indoor perimeter protection
  • High-precision PIR technology for narrow or walk-through areas
  • Complies with EN50131-2-2 Grade 2 and PD6662:2017 standards

Features

  • High immunity to false alarms in confined spaces
  • Integrated test LED and remote control via RLED terminal
  • Choice of EOL or normally open wiring
  • Compatible with Texecom Premier Elite panels

Communication interface

  • Terminals: +12 V, 0 V, alarm, tamper, RLED
  • Tiltable or removable terminal block for easy wiring

Power supply

  • 9 to 15 V DC operating voltage (12 V ± 25 %)
  • Maximum consumption 12 mA @ 12 V DC
  • Standby current 9.3 mA @ 12 V DC

Environmental

  • Indoor use only
  • Environmental class II
  • Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
  • Relative humidity 0-95 % noncondensing

Physical characteristics

  • White plastic material
  • Wall installation with corner mounting possibility
  • Dimensions: 65 × 112 × 43 mm
  • Net weight: 0.106 kg

Contents

  • TEXE-64 curtain type PIR detector (AKX-0001)

Certifications

  • EN50131-2-2 Grade 2, Class II
  • PD6662:2017
  • Manufactured in UK
REFERENTIE / MODEL TEXE-64 / AKX-0001
Systeem Wired
Type detector Gordijn PIR || PIR
Certificaat Grade 2
Installatieomgeving Binnen
