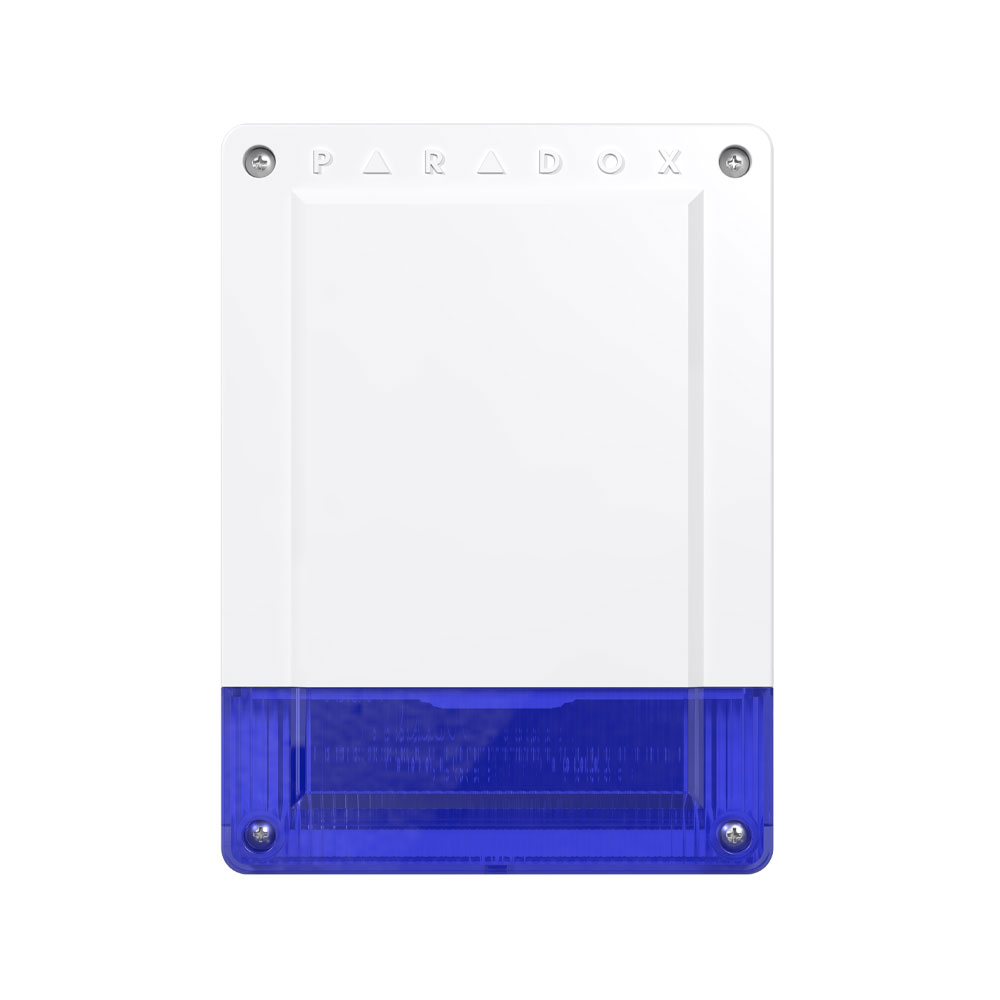

Paradox wireless outdoor siren with built-in strobe light

Technical features

• Paradox outdoor radio siren with integrated strobe light and two-way wireless transceiver
• RF frequency of 868 MHz
• 100 dB siren at 1 meter
• Integrated strobe light
• Response time to alarm signals in less than 4 seconds
• Autonomy of up to 3 years in normal use
• 70 m RF range

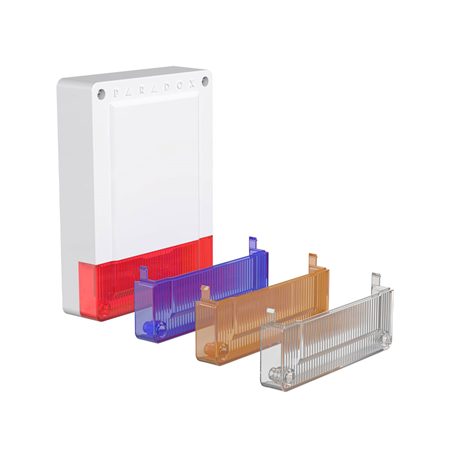

• Lenses available in red, blue, amber and clear colors

Functionalities

• Continuous monitoring between Gateway and siren
• Dual action tamper for cover opening and wall removal detection
• LED status, transmit, receive and signal level indication
• Programming support via compatible keypad or BabyWare software
• Firmware upgrade via InField software and 307USB interface

Alarms

• Audible alarm activation and 4-minute strobe flash on tamper detection

Communication interface

• Learn switch for learning and signal level check
• InField connector for firmware upgrade
• Antenna expandable via RG6 or RG59 coaxial cable with standard F male connectors and F female/female adaptor

Power supply

• 4.5 Vdc power supply via 3 D-type alkaline batteries
• Optional external 8-16 Vac or 9-20 Vdc power source
• Low battery signal at 3.4 Vdc
• 22 uA consumption in standby, 130 uA in standby and 550 mA in alarm

Environmental

• Operating temperature with battery -30 ºC to 50 ºC
• IP54 degree of protection

Physical characteristics

• Wall mounting
• Dimensions 24 x 6 x 18 cm

Contents

• Outdoor siren via radio with PAR-215 strobe (SR250-868MhZ-P9S)

Certifications and standards

• EN 50131-4
• EN 50131-1 Grade 2
• EN 50130-5 Environmental Class IV
• CE Marking
• Certification Body: Applica Test and Certification
