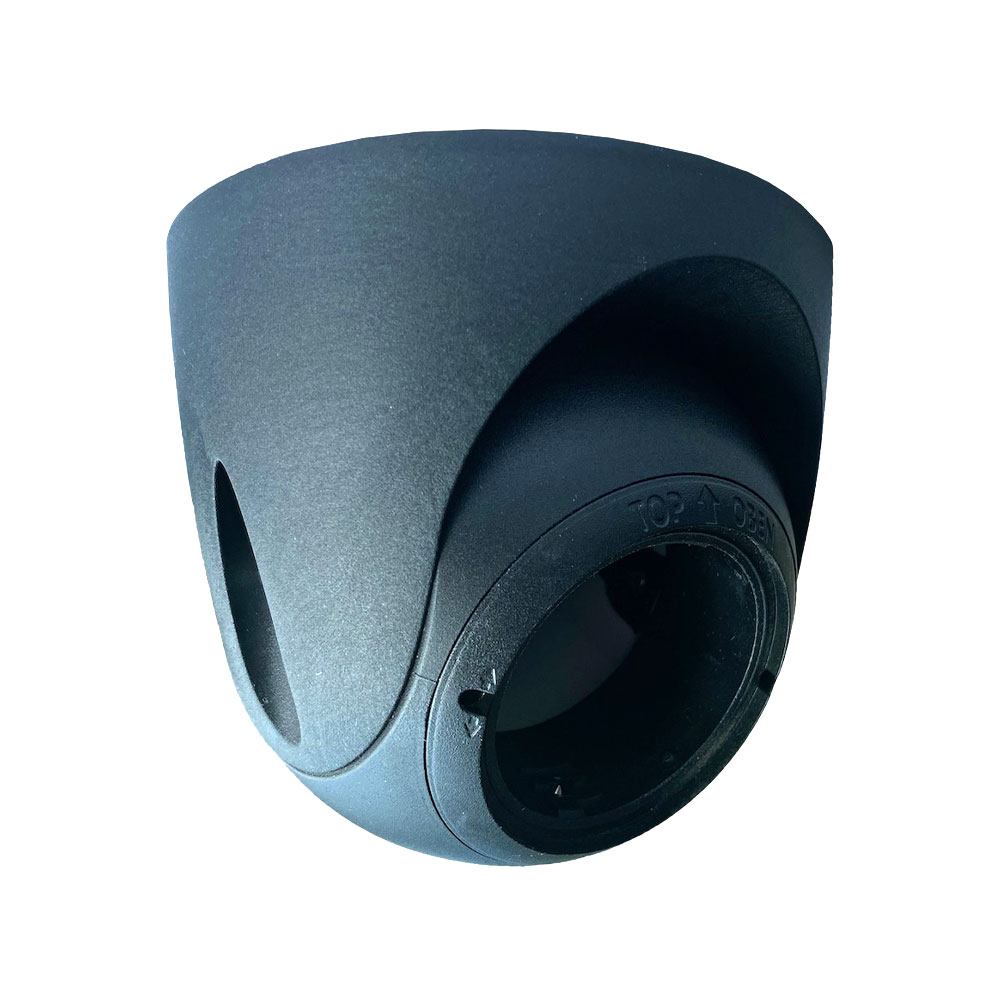

MOBOTIX PTMount S7x 3-axis dome mount for S74 sensors, for wall or ceiling installation

Technical Specifications

• MOBOTIX PTMount S7x manually adjustable dome mount for one sensor module
• Compatible with S74 sensors and screw-on sensor modules for S7x
• Holds one sensor module (not included)
• Concealed wiring

Functionalities

• Manual adjustment along three axes
• Compensation for lateral tilt in wall-mounted installations
• Horizontal realignment of the image horizon

Environmental

• Weather-resistant
• Operating temperature: −30 to 60 °C
• IP66 protection

Physical characteristics

• 3-axis mechanical adjustment
• Wall or ceiling mounting
• Black finish
• Width: 148 mm
• Depth: 196 mm
• Height: 180 mm

Contents

• MOBOTIX MOBOTIX-96 Adjustable Dome Mount (Mx-M-PTMA-b)

Certifications and Standards

• RoHS compliance
