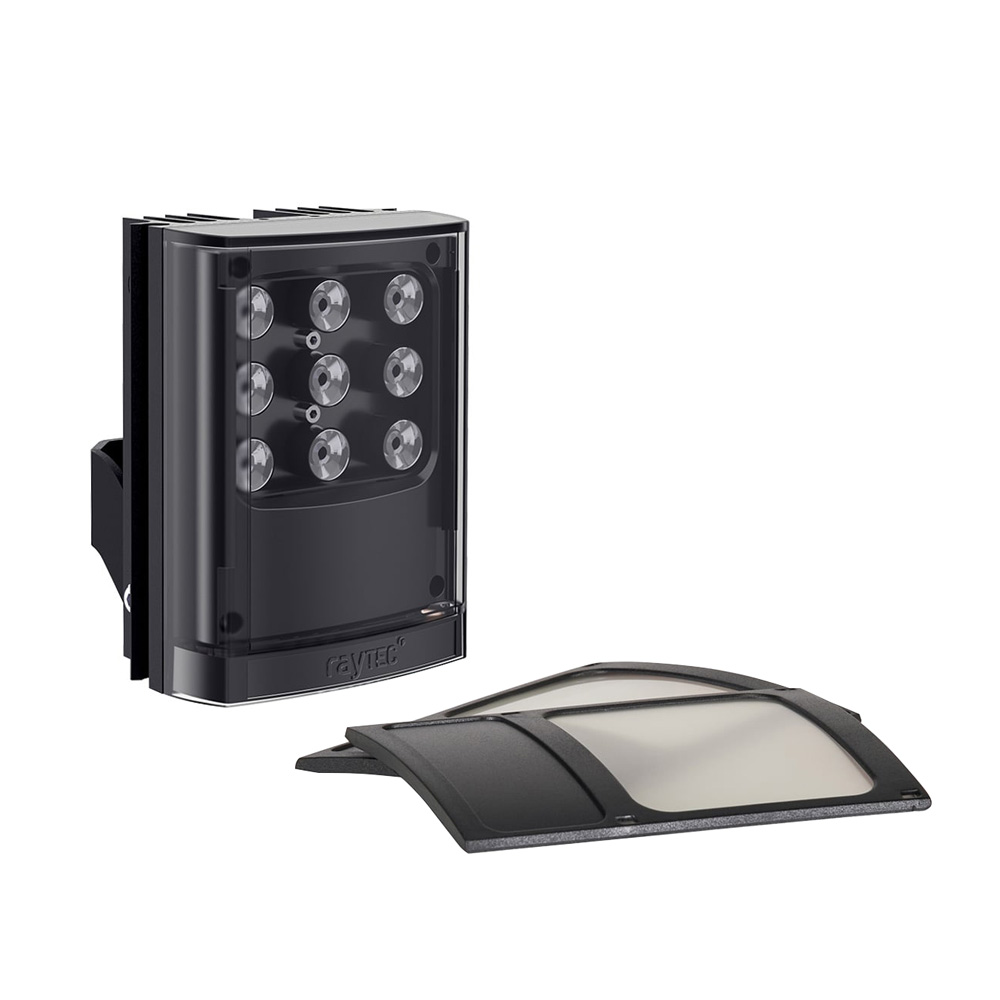

VARIO2 long-range hybrid lighting spotlight

VARIO2 hybrid spotlights use PLATINUM Elite dual-core SMT LED technology to deliver all the performance of an infrared and white light illuminator in a single, fully integrated two-in-one solution. Infrared illumination can be used for general surveillance, while white light can be used as a deterrent or to provide additional scene information upon activation. Switching from infrared to white lighting is easy, via a volt-free switch for external devices or alarm inputs. VARIO2 Hybrid features an interchangeable lens system with hot spot reduction technology to deliver highly uniform illumination. With the (optional) RAYTEC-82 (VAR-RC-V1) handheld remote control, VARIO2 Hybrid makes installation and commissioning faster, easier and safer.

specs

Includes a 10°x10° circular lens, a 35°x10° circular lens (standard) and a 60°x25° elliptical lens
Infrared range with 10°x10° lens: 130 meters
Infrared range with 35°x10° lens: 70 meters
Infrared range with 60°x25° lens: 49 meters
White light range with 10°x10° lens: 70 meters
White light range with 35°x10° lens: 42 meters
White light range with 60°x25° lens: 22 meters
Elliptical beam shape with hot spot reduction technology (HRT)
Beam angle system: VARIO interchangeable lens system
LED Type: Platinum Elite Dual Core SMT LED
Number of LEDs: 6 IR leds, 3 white light leds
Output power (luminous flux): 745lm per luminaire
Wavelength: 850nm and white light
activation photocell
Photocell after exit
telemetry input
Status LED indicator provides drive performance status
Power input: 24V DC
Consumption: 13W
Operating temperature: -50°C ~ +50°C
Degree of protection IP66
Dimensions: 100 (W) x 135 (H) x 66 mm
Weight: 950g
Cable length: 2.5 meters
Includes adjustable lyre stand
5 year warranty
Advanced functions (RAYTEC-82 remote control required, not included)

20-100% power adjustment
Photocell sensitivity adjustment
Timer function (up to 30 minutes)
telemetry monitoring
LED status indicator on / off
Reset to factory default settings
Disabling programming mode
