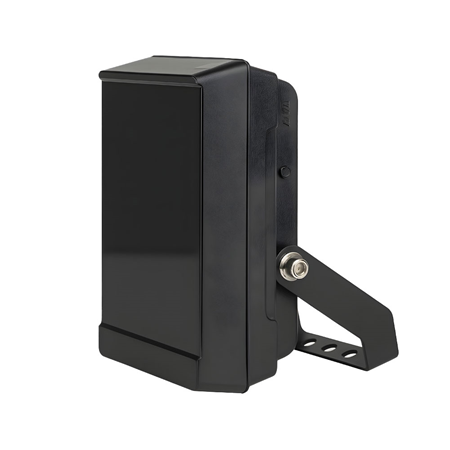

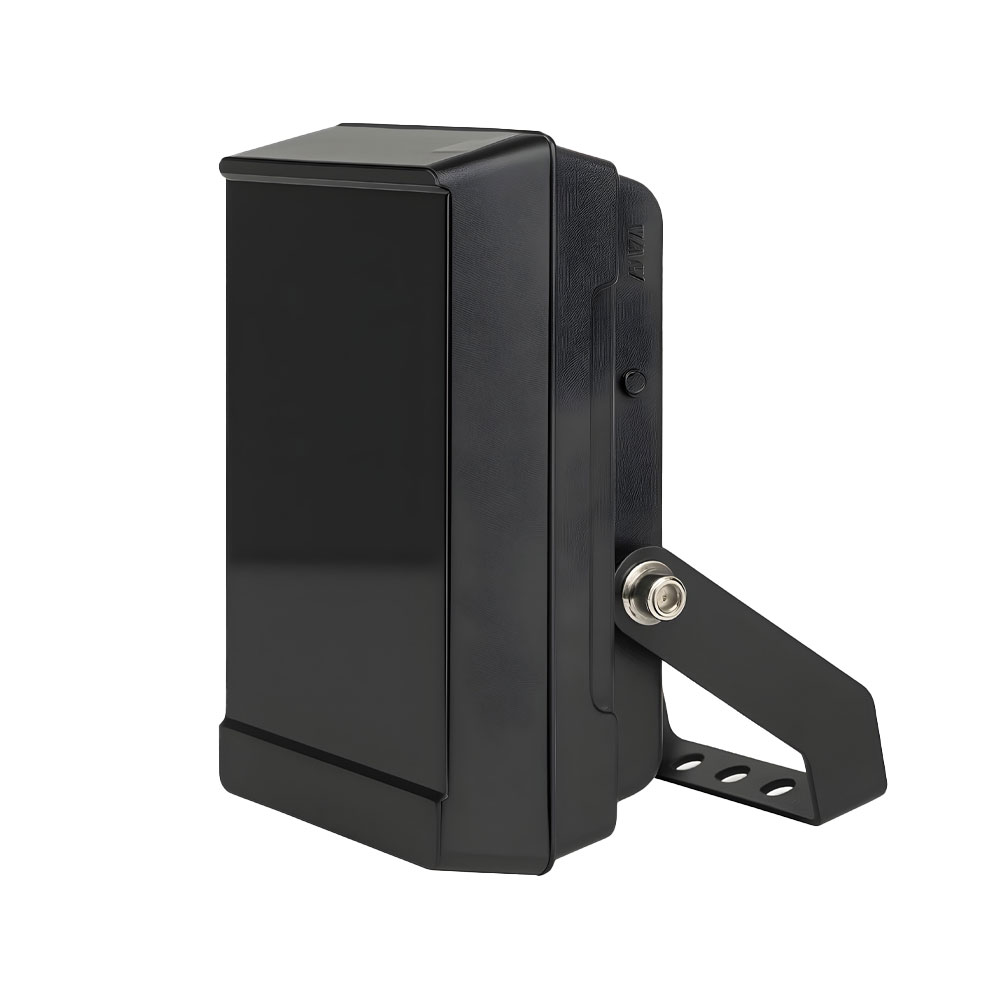

AirSpace vandal-proof LED IR illuminator with 30° beam and 100 m range

Technical Features

• AirSpace infrared LED illuminator for CCTV and IP cameras
• 12 high power IR LEDs
• Wavelength 850 nm
• 30° beam angle
• 100 m IR range
• Lyre bracket

Functionalities

• Manual power adjustment
• Manual light sensor sensitivity adjustment
• Automatic day/night switching
• Designed to improve night image capture on CCTV and IP cameras
• Designed to reduce signal noise and image distortion for night vision

Power supply

• 12V DC power supply
• 1500 mA adjustable current
• 18 W power

Environmental

• Working temperature from -30 °C to 50 °C
• IP66 protection
• IK10 vandal resistant

Physical characteristics

• Die-cast aluminum housing
• Vandal resistant PC front panel
• Black finish
• Wall installation by means of bracket
• Dimensions: 151 x 96 x 60 mm
• Net weight: 0.82 kg
• Gross weight: 1.1 kg
• Packing dimensions: 185 x 155 x 110 mm

Contents

• AirSpace SAM-6793 LED Infrared Illuminator (SAM-6793)

Certifications and regulations

• CE and FCC markings
• Mechanical protection degree IK10
