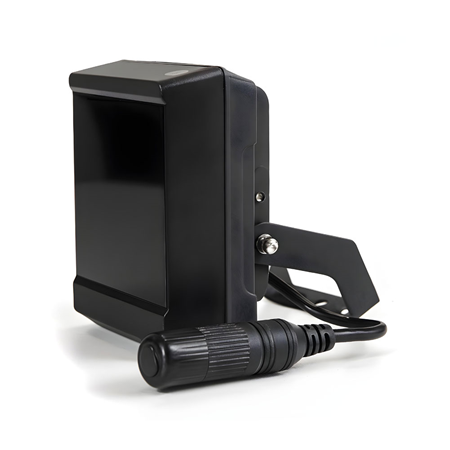

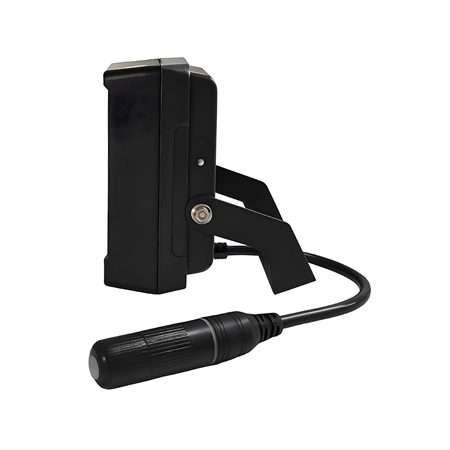

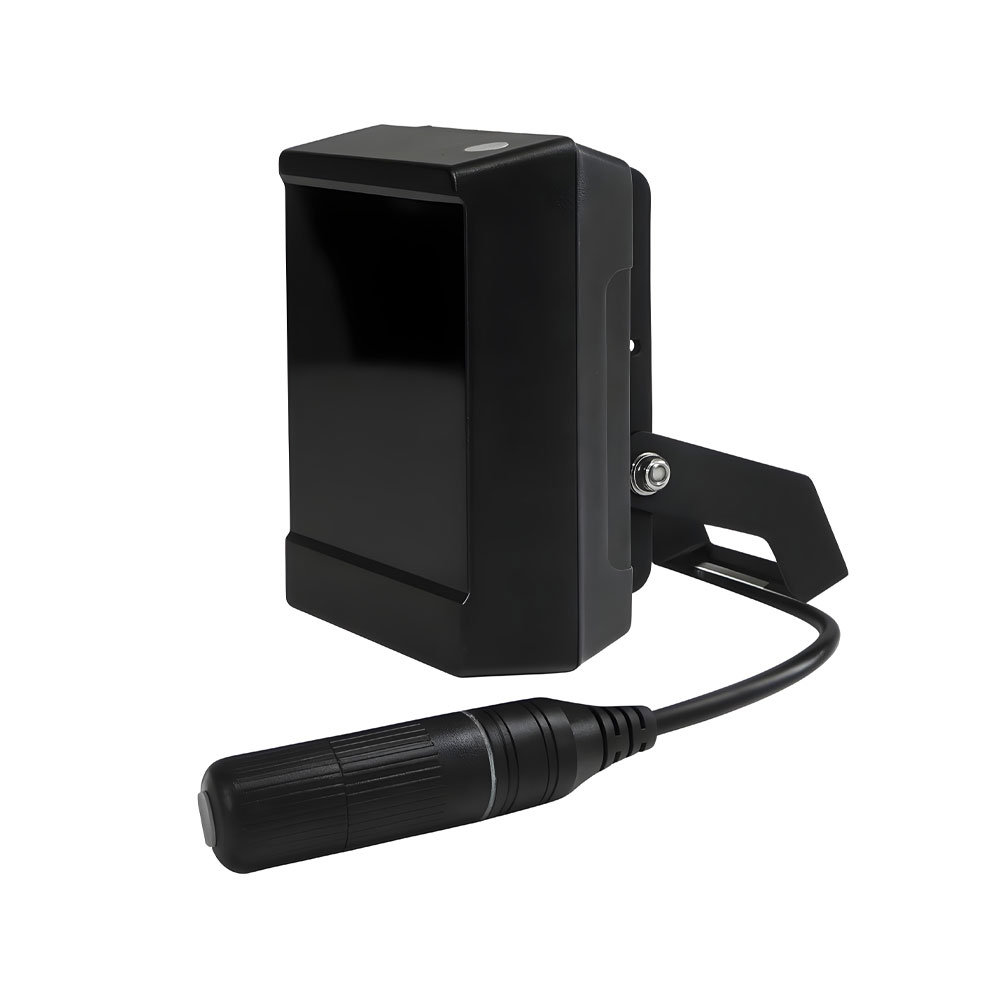

AirSpace vandal-proof PoE IR illuminator with 45° beam and 40 m range

Technical Features

• AirSpace PoE Infrared PoE Illuminator for CCTV and IP cameras
• 6 high power IR LEDs
• 850 nm wavelength
• 45° beam angle
• 40 m IR range
• Lyre bracket

Functionalities

• Manual power adjustment
• Manual light sensor sensitivity adjustment
• Automatic day/night switching
• Designed to improve night image capture on CCTV and IP cameras

Network

• Connection via IP66 cable with RJ45 connector and 50 cm Cat.5e patch cord

Power

• IEEE 802.3af PoE power supply
• Adjustable 10 W power

Environmental

• Working temperature from -30 °C to 50 °C
• IP66 protection
• Vandal resistance IK10

Physical characteristics

• Die-cast aluminum housing
• Vandal resistant PC front panel
• Black finish
• Wall, pole or surface mounting
• Dimensions: 104 x 80 x 51 mm
• Net weight: 0.53 kg
• Gross weight: 0.6 kg
• Packing dimensions: 145 x 135 x 95 mm

Contents

• AirSpace SAM-6795 PoE infrared illuminator (SAM-6795)

Certifications and regulations

• CE and FCC markings
• Mechanical protection degree IK10
