SAM-6770 | 9U outdoor 19" rack cabinet with ventilation, tray and IP55 protection
SAM-6770SAM-67709U outdoor 19" rack cabinet with ventilation, tray and IP55 protection
SAM-6770
SAM-6770_B
SAM-6770_C
SAM-6770_D

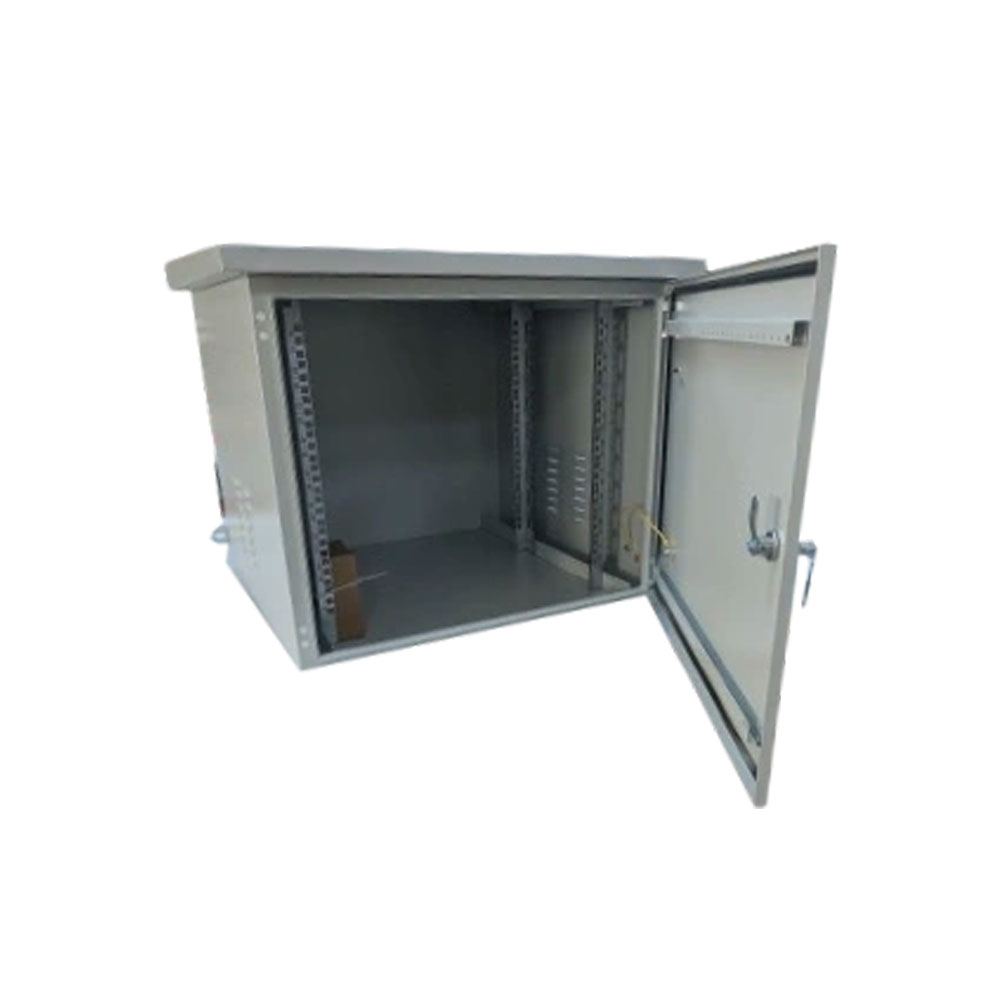

9U outdoor 19" rack cabinet with ventilation, tray and IP55 protection

SAM-6770

SAM-6770

Hoofd functies

  • 9U outdoor metal rack made of SPCC galvanized steel
  • IP55 protection
  • Top ventilation with 2 fans, fixed tray, thermostat and lock
  • Reinforced design
  • UV and corrosion resistance
  • Ideal for outdoor environments

Specificaties

  • 19" 9U rack for use in outdoor installations
  • 1.5 mm SPCC cold galvanized steel construction
  • Reversible opaque door with opening greater than 110°.
  • Inner metal chassis with welded structure
  • Injected polyurethane cord type sealing gasket
  • IP55 protection degree against dust and water
  • Roof ventilation unit with 2 x 120 mm fans
  • Ventilation windows protected with metal mesh
  • Temperature control by analog thermostat
  • Includes 1 fixed tray
  • Bottom access for wiring pass-through
  • Prepared for installation of additional fans
  • Security lock with protective cover and key
  • Rear fixing hooks included
  • Supports up to 800 kg static load
  • Finished in RAL 7035 polyester paint with primer
  • High resistance to UV radiation
  • Corrosion protection according to UNE-EN 62208
  • Dimensions: 60 × 60 × 50 cm
  • Weight: 17 kg
REFERENTIE / MODEL SAM-6770 / SAM-6770
IP waarde IP55
Kleur Grijs
Hoogte 9U
Rack type Rack Cabinet
Load capacity 800 kg
Rack accessories Included
