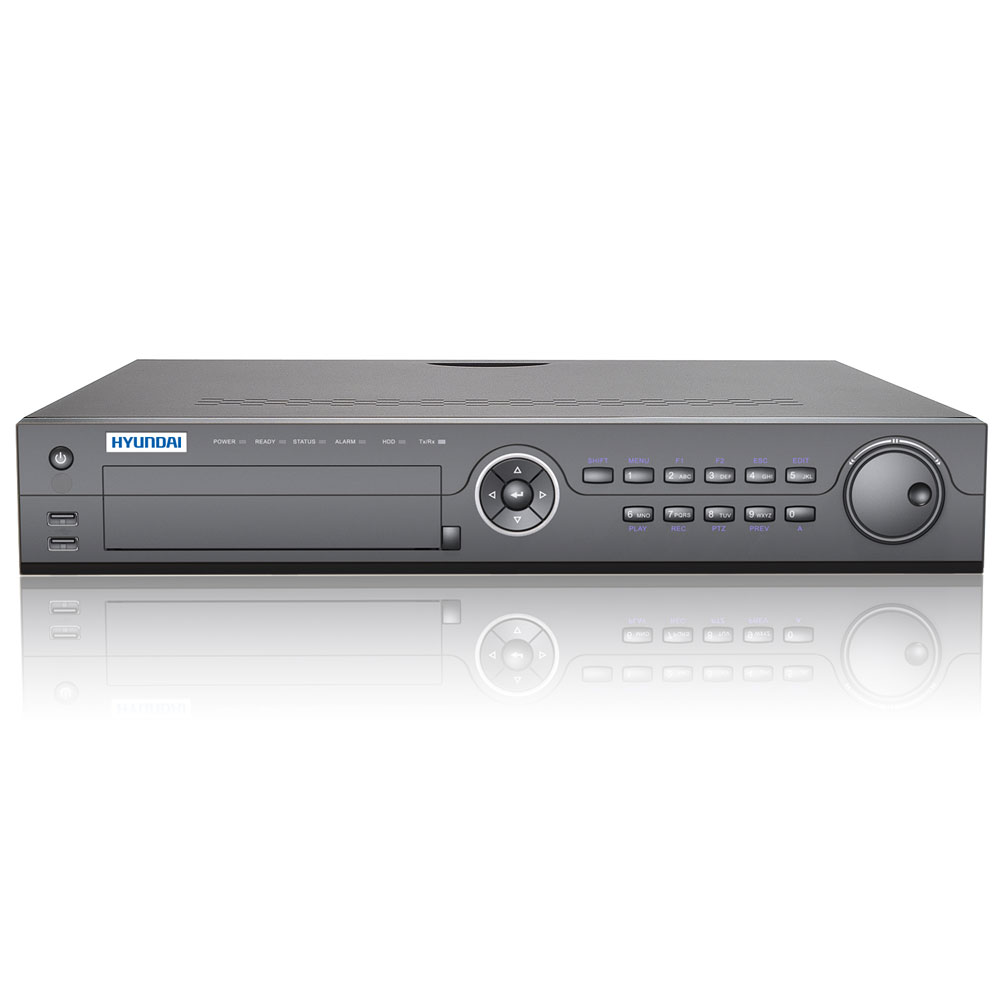

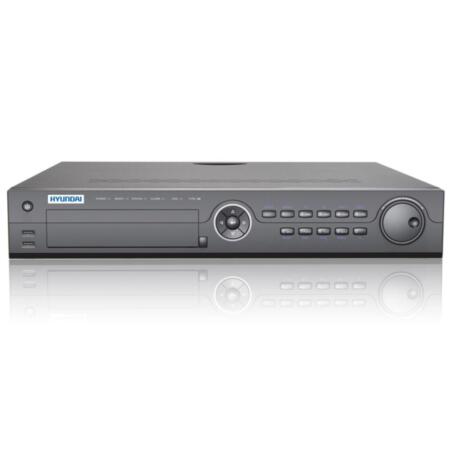

HYU-220-RE | 32 channel IP NVR
HYU-220-RENVR5432-16P-4K/IVS32 channel IP NVR

32 channel IP NVR

HYU-220-RE

NVR5432-16P-4K/IVS

Gereviseerd product

Product dat is gecontroleerd, gerepareerd en getest door gekwalificeerde technici om een perfecte werking te garanderen, vergelijkbaar met die van een nieuw product. Het bevat ten minste de essentiële accessoires en wordt geleverd met garantie, hoewel het lichte cosmetische gebruikssporen kan vertonen zonder dat dit invloed heeft op de prestaties. Het is onderhevig aan de beschikbaarheid van voorraad op het moment van orderbevestiging.

Hoofd functies

  • 32 channel IP NVR
  • H.264/H.264+/MJPEG4
  • Synchronous display of 16 ch @ 1080p. up to 12 MP
  • Recording: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1/4CIF, etc
  • 256 Mbps
  • VGA output @ 1080P and HDMI @ 4K
  • 2 way audio
  • Alarm: 16 in / 4 out
  • 4 HDD SATA
  • Compatible with Onvif, P2P, DDNS and intelligent IP cameras VCA
  • 220V Ac
  • 1,5U
  • 16 PoE+ ports.

Specificaties





- 32 channel IP NVR. H.265/H.264+/H.264/MPEG4
- Dual O/S
- Storage space effectively saved by 50% to 70% with the use of H.265 decoding format
- 32 IP camera inputs
- Input bandwidth: 256 Mbps
- Output bandwidth: 256 Mbps
- VGA (1920x1080) and HDMI (3840x2160) output
- 2 way audio : 1 RCA in / 1 RCA out
- Display resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, D1/4CIF, DCIF, 2CIF, CIF, QCIF
- Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, D1/4CIF, DCIF, 2CIF, CIF, QCIF
- Live display up to 12 MP
- Supports live view, storage, and playback of the connected camera up to 12 MP
- Synchronous display: 16 channel  @ 1080P, 4 channel  @ 4K
- Alarm: 16 in / 4 out
- Multi zone motion detection
- Digital zoom on recording and playback
- Centralized management of IP cameras, including configuration, information, import/export, real-time information display, two-way audio, upgrade....
- Multiple recording supported, including live, manual recording, motion detection, external alarm, motion detection and/or alarm
- Connectable to smart IP cameras from HYUNDAI and recording, playback, and backup of VCA can be realised
- Motion detection intelligent search recording
- Storage: 4 SATA ports for 4 HDD with a max of 6TB per disc (not included)
- Supports HDD quota and group modes; different capacity can be assigned to different channels
- Network interface: Ethernet RJ45 (10/100/1000M) self-adaptive
- Compatible with ONVIF
- Remote access up to  128 users
- Remote access via iPhone/iPad, Android
- Multi browser compatibility: Chrome, Firefox, Safari, IE
- ANR technology to enhance the storage reliability when the network is disconnected
- P2P cloud and DDNS service
- Connections: 2 USB 2.0, 1 USB 3.0, 1 RS232, 1 RS485
- Rear panel includes 16 independent ports (100Mbps) PoE+ 802.3af/at
- PoE consumption: ≤200W
- Power supply: 100V ~ 240V CA
- NVR consumption: ≤20W (no HDD, no PoE)
- Working temperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions: 445 x 390 x 70 mm (1,5U)
- Weight: ≤5 kg
