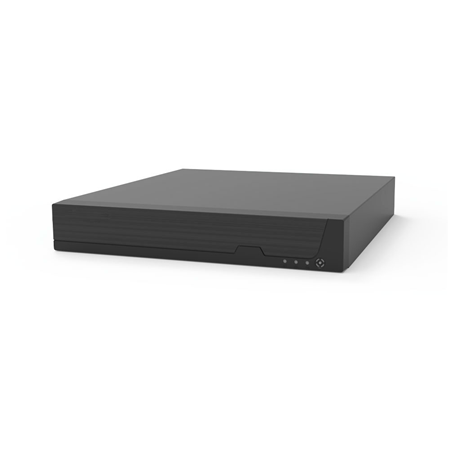

Entry Series 6-channel IP NVR with 4 PoE

Name: NVR2106M-4P-NB
SKU: NVR2106M-4P-NB
Availability: InStock
Rating: 5 (7 reviews)

NVR2106M-4P-NB

Hoofd functies

NVR IP Entry Series 6-channel
H.265/H.264
88/88 Mbps input/output
Simultaneous HDMI (4K) and VGA (1080P) outputs
AI from cameras: Perimeter protection, face detection, people counting and SMD
1 SATA HDD capacity
1 RJ45 Fast Ethernet
2 USB 2.0
12V DC, 4 PoE

Specificaties

6 IP channels
Video compression: H.265 and H.264
Simultaneous video outputs HDMI (4K) and VGA (1080P)
Output division: 1, 4
1 input / 1 output RCA audio
Bi-directional audio
Audio compression: G.711a
Recording resolution up to 8MP (3840x2160)
Bandwidth: 88 Mbps in, 88 Mbps out
Decoding capacity:
- 1 channel at 8MP (30 fps)
- 4 channels 1080P (30 fps)
Supports adaptive decoding
Manual, scheduled recording modes (general, videosensor, alarm, intelligence)
Alarm link: Recording, Snapshot, Buzzer, Log, Preset, Email
Supports image capture in JPEG format
Artificial Intelligence from intelligent cameras:
- Perimeter protection (intrusion, line crossing).
- Face detection
- People counting
- Intelligent motion detection
Artificial Intelligence in the recorder:
- Not available
AI search by target classification (people, motorized vehicles and non-motorized vehicles)
Synchronized playback of up to 6 channels
Internal capacity for 1 SATA HDD up to 14TB (sold separately)
4 PoE (802.3af) 10/100Mbps ports
RJ45 Fast Ethernet network port (10/100Mbps)
Network protocols: HTTP, TCP/IP, IPv4, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, Auto register
Onvif and SDK support
Compatible with IE8 or later web browser
Compatible with Android and iOS devices
Communication ports: 2 USB 2.0 ports
Power supply: 12V DC, 2A
Power consumption: 7 W (excluding hard disk)
Operating temperature from -10°C ~ +55°C
Relative humidity 10%~90% (non-condensing)
Metal housing
Dimensions: 255 (W) x 42 (H) x 222 mm (Mini 1U)
Weight: 900 g
Desktop installation
CE/FCC certified

REFERENTIE / MODEL	NVR2106M-4P-NB / NVR2106M-4P-NB
Resolutie	8MP
Serie	ENTRY
Audio	1 ingang / 1 uitgang \|\| Two-way
Codec	H.264 \|\| H.265
Intelligente zoekfunctie	Ja
Formaat	Mini 1U
PoE	4 PoE
Netwerk kanalen	6ch
Opslag capaciteit	80-100 Mbps
Capaciteit	1 HDD
Monitor uitgang	HDMI + VGA
Certificaat	NDAA
Alarm kanalen	Geen
Connectiviteit	IP \|\| YES (P2P)
Intelligente functies	Geen
Compatibiliteit	Onvif
