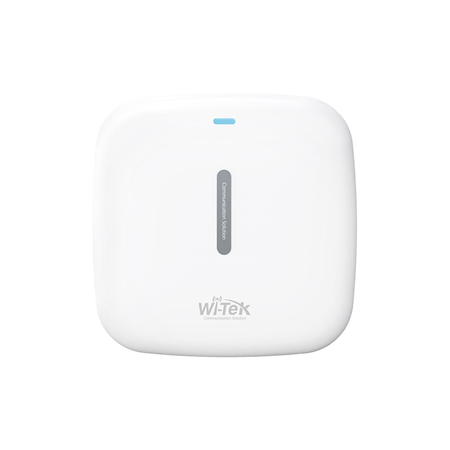

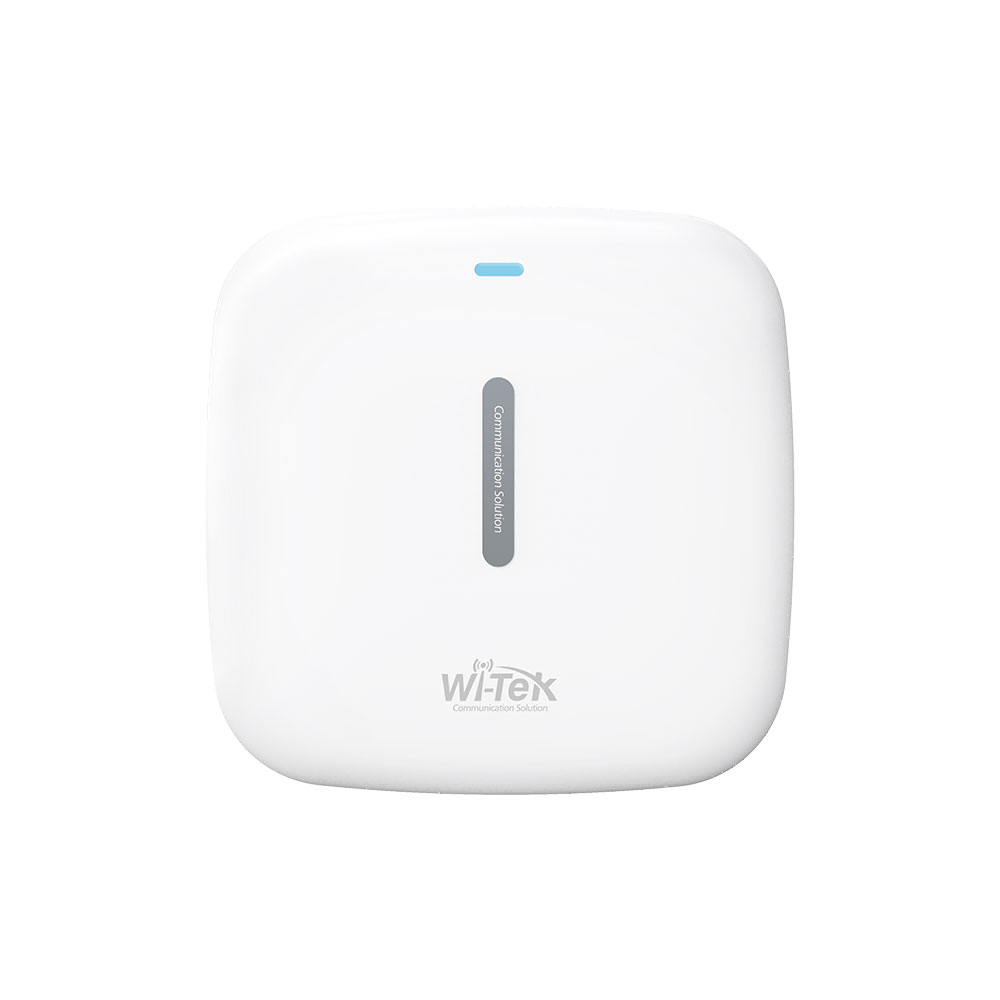

WITEK-0175 | Wi-Tek Indoor WiFi 6 Ceiling WiFi Access Point
WITEK-0175WI-AP218AX V2Wi-Tek Indoor WiFi 6 Ceiling WiFi Access Point

Wi-Tek Indoor WiFi 6 Ceiling WiFi Access Point

WITEK-0175

WI-AP218AX V2

Hoofd functies

  • Wi-Tek ceiling WiFi 6 access point
  • Combined speed up to 1775Mbps
  • MU-MIMO and OFDMA for high performance
  • 2 Gigabit ports, 802.3at PoE, up to 250 clients
  • Cloud management and WPA/WPA2/WPA3 security
  • Compact design for offices and hotels

Specificaties

Technical Features

  • Wi-Tek WI-AP218AX V2 Series WiFi 6 Rooftop Access Point
  • 512MB RAM and 128MB Flash processor
  • Combined speed up to 1775Mbps (2.4GHz: 574Mbps, 5GHz: 1201Mbps)
  • Internal antennas: 2.4GHz 3dBi, 5GHz 3dBi
  • Maximum transmit power: 23dBm
  • Maximum clients: 250 (80 recommended)

Features

  • MU-MIMO and OFDMA for performance in high density environments
  • 1024-QAM for improved capacity and speed
  • Fast Roaming for seamless transitions
  • Multi-SSID (up to 8 per radio) with VLAN mapping
  • User isolation and Wi-Fi scheduling
  • Restart and ping watchdog scheduling

Intelligent features

  • Wi-Tek Cloud Management
  • Automatic channel and power adjustment
  • Advanced diagnostics: Ping, Tracert, status monitoring

Communication interface

  • 1 reset button

Network

  • 2 Gigabit Ethernet ports (WAN with 802.3at PoE support)
  • Modes: Fit AP, Wireless Router
  • WAN: Static/Dynamic IP, PPPoE
  • LAN: Static/Dynamic IP
  • Security: WPA-TKIP, WPA2-AES, WPA/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise, WPA2/WPA3-Mixed
  • IEEE 802.1Q VLAN and SSID-to-VLAN support

Power

  • 802.3at PoE or DC 12V/2A power supply
  • Maximum power consumption: 16W

Environmental

  • Operating temperature: -20 ºC ~ 55 ºC
  • Operating Humidity: 5% ~ 95% (non-condensing)
  • Certifications: CE, FCC, RoHS, UKCA, RCM

Physical Characteristics

  • Ceiling mount design
  • Dimensions: 206 × 206 × 41 mm
  • Net weight: 0.85 kg
  • Gross weight: 1.2 kg

Contents

  • WITEK-0175 Ceiling Wi-Fi 6 Access Point (WI-AP218AX V2)
REFERENTIE / MODEL WITEK-0175 / WI-AP218AX V2
Speciale bescherming No
Technologie WIFI
PoE PoE+
Frequentie 2,4/5 GHz (AX)
Cctv modus No
Vezel type Geen
RJ45 Poorten 2 (Gigabit)
Installatieomgeving Binnen
Bandbreedte 1.8 Gbps
Managed Browser || Cloud
Ring Geen
POE spanning 0-50W
Installatie Dak
WiFi generatie WiFi 6
Mesh N/A
